SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.07 | 550.11 | 43.28 | 298.32 | -13.27 | 109.04 | 23.11 | 253.08 | 0.4003 | 296.8 | 248.1 | |
|
previous
or next observation for the same group /

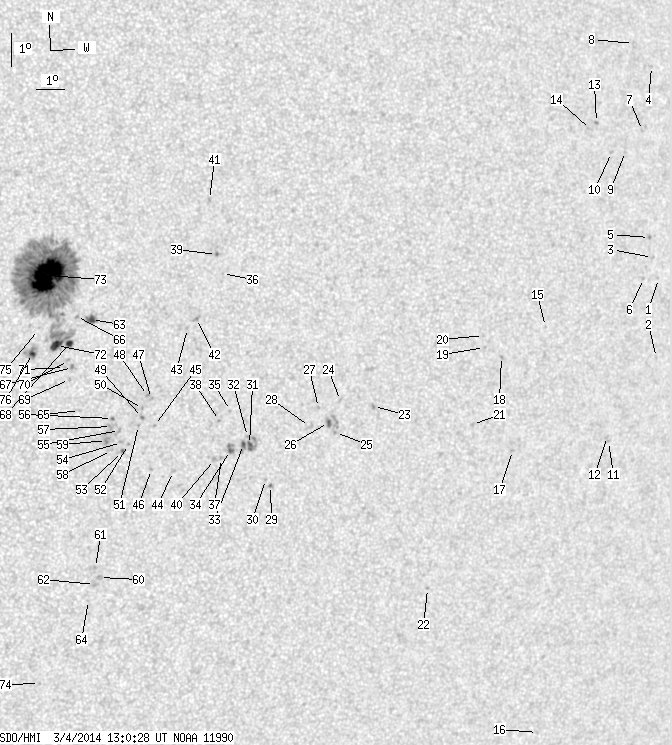

back to the solar disc SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.52 | -10.95 | 128.60 | 42.68 | 261.66 | 0.6750 | 556.0 | 468.1 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -13.29 | 128.98 | 43.06 | 258.22 | 0.6811 | 511.0 | 426.1 | |
| 0.00 | 1.56 | 0.00 | 1.04 | -10.35 | 128.25 | 42.33 | 262.55 | 0.6704 | 504.0 | 422.3 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -4.70 | 127.55 | 41.62 | 271.08 | 0.6644 | 638.0 | 505.8 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -9.77 | 128.04 | 42.11 | 263.42 | 0.6676 | 701.0 | 634.9 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -11.00 | 127.99 | 42.07 | 261.56 | 0.6672 | 639.0 | 550.7 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -6.63 | 127.35 | 41.43 | 268.20 | 0.6599 | 543.0 | 415.4 | |
| 0.00 | 1.38 | 0.00 | 0.90 | -4.07 | 126.79 | 40.86 | 272.15 | 0.6554 | 595.0 | 386.6 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -7.30 | 126.75 | 40.82 | 267.21 | 0.6515 | 685.0 | 539.8 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -7.38 | 126.20 | 40.27 | 267.13 | 0.6442 | 673.0 | 517.2 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -15.95 | 127.61 | 41.68 | 254.10 | 0.6672 | 627.0 | 551.0 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -15.80 | 127.53 | 41.61 | 254.30 | 0.6660 | 617.0 | 567.9 | |
| 0.00 | 1.47 | 0.00 | 0.94 | -6.53 | 125.53 | 39.60 | 268.51 | 0.6358 | 693.0 | 595.2 | |
| 0.00 | 2.25 | 0.00 | 1.43 | -6.76 | 125.32 | 39.39 | 268.17 | 0.6328 | 554.0 | 504.5 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -12.73 | 124.39 | 38.46 | 258.60 | 0.6212 | 467.0 | 449.8 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -24.95 | 127.57 | 41.64 | 241.05 | 0.6908 | 358.0 | 288.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -16.51 | 123.87 | 37.94 | 252.42 | 0.6206 | 813.0 | 731.6 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -13.74 | 122.87 | 36.94 | 256.71 | 0.6021 | 675.0 | 583.3 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -13.52 | 122.18 | 36.25 | 256.95 | 0.5924 | 600.0 | 613.8 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -13.17 | 122.08 | 36.15 | 257.53 | 0.5905 | 701.0 | 497.5 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -15.85 | 122.16 | 36.24 | 253.06 | 0.5967 | 820.0 | 686.7 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -20.89 | 121.63 | 35.70 | 244.65 | 0.6056 | 744.0 | 574.0 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -15.56 | 118.40 | 32.47 | 252.43 | 0.5447 | 831.0 | 680.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -15.45 | 117.18 | 31.25 | 252.19 | 0.5273 | 783.0 | 565.0 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.42 | 117.17 | 31.24 | 250.39 | 0.5302 | 644.0 | 523.2 | |
| 1.04 | 9.51 | 0.60 | 5.53 | -16.14 | 116.86 | 30.94 | 250.79 | 0.5250 | 994.8 | 780.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.71 | 116.43 | 30.50 | 251.42 | 0.5176 | 883.0 | 777.1 | |
| 0.00 | 3.46 | 0.00 | 2.00 | -16.30 | 116.21 | 30.28 | 250.22 | 0.5164 | 551.0 | 620.0 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -18.15 | 115.13 | 29.21 | 246.18 | 0.5089 | 752.0 | 722.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -17.98 | 114.92 | 29.00 | 246.39 | 0.5052 | 655.0 | 581.0 | |
| 1.30 | 9.59 | 0.74 | 5.45 | -16.96 | 114.18 | 28.25 | 247.95 | 0.4905 | -847.2 | -600.0 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -16.73 | 114.07 | 28.14 | 248.36 | 0.4880 | -723.0 | -633.2 | |
| 1.12 | 4.67 | 0.64 | 2.64 | -16.98 | 113.97 | 28.04 | 247.81 | 0.4876 | -1014.4 | -677.4 | |
| 0.86 | 6.14 | 0.49 | 3.46 | -17.18 | 113.54 | 27.62 | 247.17 | 0.4825 | -905.3 | -793.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -15.98 | 113.36 | 27.43 | 249.49 | 0.4748 | -625.0 | -499.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -11.91 | 112.57 | 26.65 | 257.83 | 0.4508 | 557.0 | 549.3 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -17.44 | 113.27 | 27.34 | 246.49 | 0.4798 | -712.0 | -623.4 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -16.30 | 113.02 | 27.10 | 248.65 | 0.4713 | -813.0 | -649.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -11.36 | 112.31 | 26.39 | 258.99 | 0.4457 | 898.0 | 812.6 | |
| 0.00 | 2.94 | 0.00 | 1.65 | -17.48 | 113.03 | 27.10 | 246.26 | 0.4767 | -964.0 | -670.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -9.73 | 111.93 | 26.00 | 262.59 | 0.4376 | 730.0 | 552.1 | |
| 0.00 | 2.42 | 0.00 | 1.34 | -13.30 | 111.84 | 25.91 | 254.50 | 0.4432 | -762.0 | -682.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -13.61 | 111.57 | 25.64 | 253.68 | 0.4401 | -644.0 | -509.1 | |
| 0.00 | 2.16 | 0.00 | 1.20 | -17.92 | 111.67 | 25.74 | 244.48 | 0.4599 | -693.0 | -592.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -16.57 | 110.82 | 24.89 | 246.74 | 0.4410 | -722.0 | -650.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -17.90 | 110.91 | 24.98 | 243.97 | 0.4491 | -771.0 | -677.6 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -15.76 | 110.61 | 24.68 | 248.36 | 0.4342 | -726.0 | -640.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -15.68 | 110.46 | 24.54 | 248.45 | 0.4317 | -950.0 | -744.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -16.35 | 110.38 | 24.45 | 246.92 | 0.4336 | -970.0 | -815.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -16.08 | 110.34 | 24.42 | 247.49 | 0.4318 | -967.0 | -784.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -16.60 | 110.28 | 24.35 | 246.30 | 0.4333 | -849.0 | -696.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.18 | 110.01 | 24.09 | 244.83 | 0.4327 | -741.0 | -651.1 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -17.40 | 109.84 | 23.91 | 244.21 | 0.4314 | -827.0 | -745.0 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -17.13 | 109.77 | 23.84 | 244.75 | 0.4289 | -812.0 | -614.9 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -16.78 | 109.65 | 23.73 | 245.45 | 0.4254 | -850.0 | -793.5 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -16.43 | 109.37 | 23.44 | 246.02 | 0.4195 | -916.0 | -672.6 | |
| 0.00 | 2.33 | 0.00 | 1.27 | -16.67 | 109.37 | 23.44 | 245.47 | 0.4207 | -786.0 | -717.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -17.39 | 109.46 | 23.54 | 243.94 | 0.4260 | -653.0 | -553.9 | |
| 0.00 | 3.54 | 0.00 | 1.93 | -17.10 | 109.26 | 23.33 | 244.42 | 0.4214 | -908.0 | -868.9 | |
| 0.00 | 3.11 | 0.00 | 1.73 | -21.26 | 109.64 | 23.71 | 236.06 | 0.4537 | -770.0 | -605.9 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -20.96 | 109.45 | 23.52 | 236.46 | 0.4491 | -849.0 | -705.1 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -21.48 | 109.50 | 23.58 | 235.49 | 0.4536 | -700.0 | -606.0 | |
| 2.77 | 7.69 | 1.49 | 4.14 | -13.50 | 108.34 | 22.41 | 252.29 | 0.3909 | -933.4 | -733.9 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -21.98 | 109.38 | 23.45 | 234.41 | 0.4558 | -708.0 | -581.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -16.24 | 108.24 | 22.31 | 245.57 | 0.4021 | -796.0 | -628.8 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -13.43 | 107.84 | 21.91 | 252.16 | 0.3830 | -566.0 | -496.9 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -14.96 | 107.86 | 21.93 | 248.35 | 0.3900 | -774.0 | -685.5 | |
| 2.77 | 407.94 | 1.48 | 216.80 | -14.25 | 107.69 | 21.76 | 250.00 | 0.3841 | -644.0 | 410.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -15.32 | 107.80 | 21.87 | 247.41 | 0.3909 | -760.0 | -604.9 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -14.76 | 107.71 | 21.78 | 248.74 | 0.3867 | -764.0 | -627.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.97 | 107.60 | 21.67 | 248.12 | 0.3861 | -834.0 | -674.5 | |
| 6.14 | -68.00 | 3.28 | -68.00 | -14.33 | 107.27 | 21.34 | 249.50 | 0.3781 | -884.6 | 999999 | |
| 63.51 | -68.00 | 33.73 | -68.00 | -12.25 | 106.79 | 20.86 | 254.65 | 0.3624 | 1367.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -24.61 | 108.13 | 22.21 | 228.20 | 0.4629 | -727.0 | -566.6 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -13.87 | 106.63 | 20.71 | 250.21 | 0.3664 | 426.0 | 511.6 | |
| 1.56 | 9.07 | 0.83 | 4.83 | -14.60 | 106.50 | 20.58 | 248.21 | 0.3679 | -748.1 | -277.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
