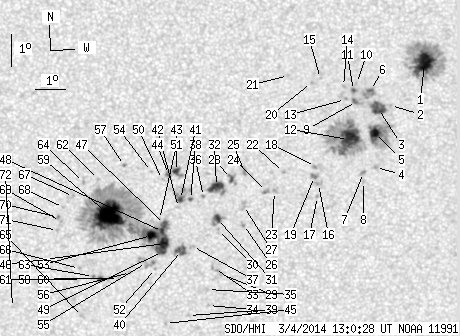

SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 176.70 | 758.27 | 92.54 | 397.20 | -25.29 | 90.36 | 4.43 | 193.30 | 0.3273 | -104.8 | 3.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.29 | 104.99 | 11.59 | 54.55 | -21.68 | 96.36 | 10.43 | 213.79 | 0.3039 | 1312.9 | 512.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -23.02 | 95.34 | 9.42 | 208.82 | 0.3138 | 708.0 | 578.2 | |
| 10.71 | 16.68 | 5.58 | 8.69 | -23.12 | 94.96 | 9.03 | 207.68 | 0.3122 | 1014.3 | 802.4 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -24.96 | 94.99 | 9.06 | 205.02 | 0.3390 | 936.0 | 778.7 | |
| 7.09 | 42.95 | 3.71 | 22.48 | -23.90 | 94.88 | 8.95 | 206.27 | 0.3229 | 1145.1 | 433.5 | |
| 1.12 | 9.51 | 0.58 | 4.94 | -22.57 | 94.66 | 8.73 | 207.81 | 0.3020 | 1083.1 | 972.2 | |
| 0.00 | 2.25 | 0.00 | 1.18 | -25.12 | 94.60 | 8.67 | 203.88 | 0.3388 | 778.0 | 561.7 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -25.40 | 94.62 | 8.69 | 203.56 | 0.3431 | -392.0 | -242.1 | |
| 0.00 | 5.44 | 0.00 | 2.83 | -22.92 | 94.23 | 8.30 | 206.08 | 0.3038 | 1183.0 | 893.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.37 | 94.19 | 8.27 | 206.89 | 0.2954 | 829.0 | 666.0 | |
| 0.78 | 2.07 | 0.40 | 1.08 | -22.58 | 94.11 | 8.18 | 206.30 | 0.2979 | 1232.3 | 1036.0 | |
| 29.21 | 95.14 | 15.26 | 49.69 | -24.10 | 94.04 | 8.11 | 203.85 | 0.3199 | 1117.7 | 566.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -22.86 | 93.87 | 7.94 | 205.19 | 0.3003 | 769.0 | 680.7 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -22.46 | 93.78 | 7.85 | 205.57 | 0.2938 | 878.0 | 650.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.23 | 93.02 | 7.09 | 203.76 | 0.2850 | 814.0 | 586.8 | |
| 0.00 | 3.72 | 0.00 | 1.95 | -25.49 | 93.13 | 7.20 | 199.82 | 0.3354 | 847.0 | 749.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.89 | 93.12 | 7.20 | 199.35 | 0.3416 | 760.0 | 577.7 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -24.96 | 93.00 | 7.07 | 200.09 | 0.3265 | 946.0 | 682.7 | |
| 0.00 | 4.23 | 0.00 | 2.22 | -25.27 | 92.99 | 7.06 | 199.69 | 0.3312 | 1075.0 | 875.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -22.36 | 92.73 | 6.81 | 202.73 | 0.2850 | 941.0 | 738.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.15 | 91.98 | 6.06 | 200.74 | 0.2772 | 821.0 | 649.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.16 | 91.96 | 6.03 | 197.13 | 0.3241 | 806.0 | 732.4 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -25.76 | 91.69 | 5.76 | 195.85 | 0.3323 | -711.0 | -707.4 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -25.76 | 91.42 | 5.49 | 195.16 | 0.3312 | -923.0 | -821.1 | |
| 0.00 | 3.54 | 0.00 | 1.85 | -25.14 | 90.67 | 4.74 | 193.66 | 0.3182 | 1145.0 | 861.0 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -26.80 | 90.70 | 4.77 | 192.49 | 0.3450 | -782.0 | -707.7 | |
| 0.00 | 4.58 | 0.00 | 2.41 | -26.20 | 90.68 | 4.75 | 192.86 | 0.3353 | -609.0 | -428.1 | |
| 1.73 | 4.84 | 0.90 | 2.53 | -25.36 | 90.25 | 4.32 | 192.33 | 0.3202 | 981.2 | 772.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.39 | 90.02 | 4.10 | 189.87 | 0.3683 | -723.0 | -631.7 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -26.97 | 89.87 | 3.94 | 190.28 | 0.3450 | -833.0 | -626.3 | |
| 4.15 | 8.90 | 2.18 | 4.68 | -26.62 | 89.83 | 3.90 | 190.37 | 0.3392 | -1047.4 | -777.7 | |
| 9.16 | 16.25 | 4.79 | 8.50 | -25.62 | 89.76 | 3.83 | 190.82 | 0.3227 | 1041.6 | 291.9 | |
| 0.00 | 3.11 | 0.00 | 1.65 | -28.21 | 89.78 | 3.85 | 189.39 | 0.3646 | -618.0 | -762.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -29.39 | 89.62 | 3.69 | 188.45 | 0.3832 | -819.0 | -593.1 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -28.88 | 89.57 | 3.64 | 188.56 | 0.3749 | -809.0 | -550.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.93 | 89.34 | 3.41 | 189.48 | 0.3267 | -634.0 | -499.1 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -27.51 | 89.02 | 3.09 | 187.85 | 0.3516 | -754.0 | -669.2 | |
| 0.60 | 22.64 | 0.32 | 11.85 | -26.03 | 88.91 | 2.99 | 188.26 | 0.3272 | -632.0 | 372.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -29.72 | 88.94 | 3.02 | 186.81 | 0.3869 | -821.0 | -538.1 | |
| 5.70 | 10.46 | 3.02 | 5.53 | -27.64 | 88.65 | 2.72 | 186.88 | 0.3529 | -1007.9 | -684.4 | |
| 2.33 | -38.00 | 1.22 | -38.00 | -26.03 | 88.58 | 2.65 | 187.36 | 0.3265 | -702.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -26.28 | 88.52 | 2.59 | 187.08 | 0.3305 | -549.0 | -500.9 | |
| 3.11 | 10.71 | 1.62 | 5.58 | -25.15 | 88.43 | 2.50 | 187.32 | 0.3117 | -1066.1 | -695.9 | |
| 0.86 | -43.00 | 0.45 | -43.00 | -25.25 | 88.17 | 2.24 | 186.53 | 0.3128 | -899.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -29.98 | 88.16 | 2.23 | 184.99 | 0.3898 | -751.0 | -645.7 | |
| 8.64 | 315.74 | 4.56 | 165.86 | -27.42 | 88.08 | 2.15 | 185.51 | 0.3483 | -1256.3 | -394.2 | |
| 3.28 | -46.00 | 1.73 | -46.00 | -26.82 | 88.07 | 2.14 | 185.67 | 0.3384 | -1145.1 | 999999 | |
| 2.51 | -46.00 | 1.32 | -46.00 | -27.04 | 88.00 | 2.08 | 185.44 | 0.3420 | -1195.0 | 999999 | |
| 1.56 | -46.00 | 0.82 | -46.00 | -27.67 | 88.01 | 2.09 | 185.27 | 0.3523 | -930.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -25.40 | 87.98 | 2.05 | 185.91 | 0.3150 | -758.0 | -531.0 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -26.66 | 87.90 | 1.97 | 185.27 | 0.3356 | -176.0 | -257.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.21 | 87.79 | 1.86 | 184.57 | 0.3608 | -648.0 | -530.4 | |
| 6.91 | -46.00 | 3.64 | -46.00 | -27.17 | 87.64 | 1.71 | 184.45 | 0.3435 | 805.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.16 | 87.61 | 1.68 | 184.94 | 0.3103 | 632.0 | 492.8 | |
| 0.00 | 9.68 | 0.00 | 5.13 | -28.02 | 87.48 | 1.55 | 183.86 | 0.3574 | -980.0 | -734.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -28.34 | 86.94 | 1.02 | 182.48 | 0.3621 | -723.0 | -573.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -24.97 | 86.72 | 0.80 | 182.37 | 0.3063 | -982.0 | -826.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -28.54 | 86.54 | 0.61 | 181.48 | 0.3650 | -844.0 | -725.1 | |
| 53.32 | -46.00 | 27.98 | -46.00 | -26.51 | 86.20 | 0.27 | 180.74 | 0.3316 | -1362.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.54 | 86.20 | 0.27 | 180.66 | 0.3649 | -871.0 | -769.2 | |
| 1.64 | 2.85 | 0.87 | 1.52 | -28.53 | 85.93 | 0.00 | 180.01 | 0.3649 | -927.0 | -838.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.41 | 85.87 | -0.06 | 179.83 | 0.3133 | 507.0 | 281.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.47 | 85.69 | -0.23 | 179.44 | 0.3638 | -685.0 | -546.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -25.50 | 85.38 | -0.55 | 178.41 | 0.3150 | -832.0 | -603.8 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -29.75 | 85.31 | -0.61 | 178.61 | 0.3848 | -707.0 | -550.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.21 | 85.22 | -0.70 | 178.27 | 0.3598 | -732.0 | -550.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.94 | 85.04 | -0.89 | 177.52 | 0.3224 | -1024.0 | -807.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -26.28 | 84.71 | -1.22 | 176.65 | 0.3284 | -906.0 | -647.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.72 | 84.60 | -1.32 | 176.46 | 0.3358 | -925.0 | -790.4 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -26.60 | 84.54 | -1.39 | 176.26 | 0.3338 | -1052.0 | -853.8 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -27.01 | 84.50 | -1.43 | 176.24 | 0.3406 | -786.0 | -648.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -29.45 | 82.92 | -3.00 | 173.13 | 0.3827 | -699.0 | -476.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
