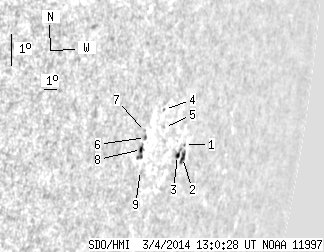

SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 21.95 | 7.81 | 29.19 | -12.18 | 155.03 | 69.10 | 259.73 | 0.9293 | 36.8 | -49.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 1.11 | -11.83 | 156.60 | 70.68 | 260.02 | 0.9393 | 230.0 | 228.7 | |
| 2.68 | 9.94 | 3.83 | 14.10 | -12.22 | 156.65 | 70.73 | 259.60 | 0.9395 | 222.4 | 270.4 | |
| 1.47 | -2.00 | 2.06 | -2.00 | -12.21 | 156.19 | 70.26 | 259.64 | 0.9368 | 522.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.12 | -11.02 | 154.40 | 68.48 | 261.02 | 0.9261 | -261.0 | -194.5 | |
| 0.00 | 0.60 | 0.00 | 0.79 | -11.54 | 154.67 | 68.74 | 260.45 | 0.9276 | 257.0 | 229.6 | |
| 0.00 | 1.56 | 0.00 | 1.93 | -11.99 | 153.34 | 67.41 | 260.02 | 0.9187 | -402.0 | -358.2 | |
| 0.00 | 0.69 | 0.00 | 0.86 | -11.82 | 153.25 | 67.32 | 260.22 | 0.9182 | -419.0 | -387.2 | |
| 1.56 | 6.74 | 1.92 | 8.31 | -12.37 | 153.21 | 67.29 | 259.62 | 0.9177 | -445.2 | -399.7 | |
| 0.00 | 0.78 | 0.00 | 0.97 | -12.98 | 153.47 | 67.54 | 258.94 | 0.9193 | 30.0 | 96.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
