SDO HMI 2014-03-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.81 | 0.00 | 2.40 | 21.63 | 109.59 | 24.22 | 321.27 | 0.6163 | -192.4 | -164.4 | |
|
previous
or next observation for the same group /

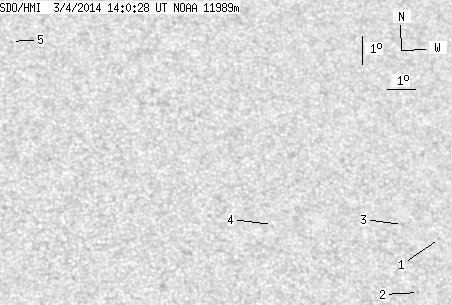

back to the solar disc SDO HMI 2014-03-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.50 | 20.41 | 114.30 | 28.92 | 314.75 | 0.6405 | -664.0 | -486.2 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 18.55 | 113.18 | 27.80 | 313.61 | 0.6130 | -735.0 | -585.4 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 20.80 | 113.04 | 27.66 | 316.45 | 0.6322 | -606.0 | -520.9 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 20.54 | 108.41 | 23.04 | 321.25 | 0.5877 | 462.0 | 474.0 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 26.52 | 100.35 | 14.97 | 337.27 | 0.6005 | 581.0 | 415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
