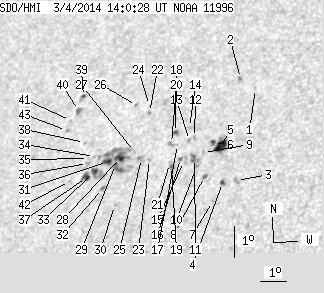

SDO HMI 2014-03-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.30 | 138.16 | 19.16 | 90.88 | 13.67 | 49.68 | -35.70 | 59.47 | 0.6602 | 5.1 | 153.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.49 | 15.48 | 53.55 | -31.83 | 54.10 | 0.6298 | -525.0 | -525.1 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 15.85 | 52.93 | -32.44 | 54.13 | 0.6391 | -680.0 | -614.3 | |
| 0.00 | 2.33 | 0.00 | 1.46 | 12.58 | 53.31 | -32.07 | 58.29 | 0.6114 | -797.0 | -691.0 | |
| 0.86 | 2.07 | 0.54 | 1.30 | 12.55 | 52.81 | -32.57 | 58.73 | 0.6170 | -709.9 | -624.5 | |
| 8.73 | 15.55 | 5.54 | 9.88 | 13.70 | 52.56 | -32.81 | 57.31 | 0.6278 | -883.3 | -519.8 | |
| 1.30 | -5.00 | 0.83 | -5.00 | 13.85 | 52.29 | -33.09 | 57.33 | 0.6320 | -529.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 11.97 | 52.53 | -32.85 | 59.76 | 0.6165 | -607.0 | -504.3 | |
| 0.69 | 1.99 | 0.44 | 1.26 | 12.79 | 52.12 | -33.26 | 58.93 | 0.6267 | -665.2 | -554.0 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 13.56 | 51.97 | -33.41 | 57.98 | 0.6337 | -756.0 | -681.8 | |
| 0.00 | 1.30 | 0.00 | 0.83 | 13.13 | 51.78 | -33.60 | 58.72 | 0.6329 | -697.0 | -563.4 | |
| 0.00 | 6.48 | 0.00 | 4.15 | 13.39 | 51.66 | -33.72 | 58.44 | 0.6360 | -815.0 | -667.8 | |
| 0.00 | 1.30 | 0.00 | 0.83 | 14.06 | 51.55 | -33.83 | 57.61 | 0.6418 | -668.0 | -549.3 | |
| 0.00 | 1.56 | 0.00 | 1.00 | 13.98 | 51.38 | -34.00 | 57.85 | 0.6432 | -463.0 | -524.0 | |
| 0.00 | 1.81 | 0.00 | 1.18 | 14.40 | 51.31 | -34.07 | 57.34 | 0.6468 | -607.0 | -453.1 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 13.33 | 51.27 | -34.11 | 58.83 | 0.6401 | -559.0 | -529.0 | |
| 0.43 | 3.11 | 0.28 | 2.00 | 13.43 | 51.14 | -34.24 | 58.78 | 0.6422 | -569.6 | -499.0 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 13.89 | 50.95 | -34.43 | 58.30 | 0.6474 | -510.0 | -432.7 | |
| 0.95 | 2.51 | 0.62 | 1.63 | 14.28 | 50.81 | -34.57 | 57.88 | 0.6516 | -516.2 | -415.7 | |
| 0.69 | 2.25 | 0.45 | 1.45 | 13.20 | 50.84 | -34.54 | 59.32 | 0.6441 | -681.5 | -537.9 | |
| 0.00 | 2.85 | 0.00 | 1.85 | 13.94 | 50.72 | -34.66 | 58.41 | 0.6503 | -489.0 | -442.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 13.30 | 50.75 | -34.63 | 59.24 | 0.6458 | -381.0 | -376.9 | |
| 0.00 | 1.30 | 0.00 | 0.86 | 15.00 | 49.70 | -35.68 | 57.74 | 0.6686 | 697.0 | 560.1 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 13.49 | 49.97 | -35.41 | 59.55 | 0.6558 | -401.0 | -316.6 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 15.23 | 49.65 | -35.73 | 57.48 | 0.6705 | 670.0 | 493.1 | |
| 0.00 | 4.06 | 0.00 | 2.67 | 13.54 | 49.66 | -35.72 | 59.70 | 0.6597 | 351.0 | 336.3 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 15.27 | 49.15 | -36.23 | 57.79 | 0.6762 | 490.0 | 524.1 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 13.79 | 49.35 | -36.03 | 59.58 | 0.6647 | -279.0 | -144.3 | |
| 5.36 | 47.52 | 3.56 | 31.63 | 13.64 | 48.85 | -36.53 | 60.13 | 0.6694 | 792.6 | 533.7 | |
| 0.69 | -28.00 | 0.46 | -28.00 | 13.43 | 48.69 | -36.69 | 60.51 | 0.6699 | 971.1 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 12.12 | 48.87 | -36.50 | 62.15 | 0.6601 | 724.0 | 635.2 | |
| 3.46 | -28.00 | 2.31 | -28.00 | 13.55 | 48.36 | -37.01 | 60.57 | 0.6743 | 857.6 | 999999 | |
| 0.52 | 1.38 | 0.34 | 0.92 | 12.70 | 48.32 | -37.06 | 61.73 | 0.6698 | 830.5 | 722.3 | |
| 2.42 | 10.11 | 1.62 | 6.77 | 13.27 | 47.91 | -37.46 | 61.23 | 0.6777 | 732.4 | 673.4 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 13.75 | 47.83 | -37.55 | 60.66 | 0.6815 | 515.0 | 408.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 13.71 | 47.60 | -37.78 | 60.86 | 0.6837 | 393.0 | 349.5 | |
| 0.00 | 1.73 | 0.00 | 1.17 | 13.55 | 47.59 | -37.79 | 61.07 | 0.6829 | 612.0 | 452.7 | |
| 2.51 | 5.62 | 1.69 | 3.78 | 13.10 | 47.64 | -37.74 | 61.63 | 0.6799 | 676.8 | 456.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 14.24 | 47.34 | -38.03 | 60.34 | 0.6896 | 535.0 | 442.8 | |
| 0.69 | 2.42 | 0.48 | 1.68 | 15.73 | 46.99 | -38.39 | 58.66 | 0.7022 | 639.5 | 592.1 | |
| 0.00 | 2.94 | 0.00 | 2.03 | 15.29 | 46.89 | -38.49 | 59.28 | 0.7007 | 801.0 | 699.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 15.00 | 46.64 | -38.74 | 59.82 | 0.7016 | 580.0 | 477.0 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 13.03 | 46.99 | -38.39 | 62.14 | 0.6867 | 587.0 | 482.3 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 14.68 | 46.54 | -38.83 | 60.27 | 0.7008 | 655.0 | 552.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
