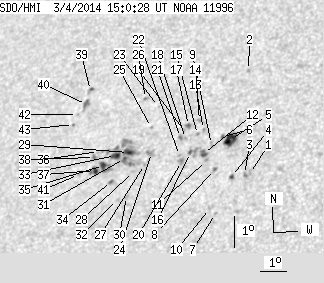

SDO HMI 2014-03-04 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.93 | 146.84 | 18.80 | 95.93 | 13.59 | 49.65 | -35.18 | 59.21 | 0.6538 | -27.5 | 177.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.59 | 0.00 | 1.61 | 12.59 | 53.45 | -31.38 | 57.71 | 0.6035 | -717.0 | -583.8 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 15.91 | 52.89 | -31.94 | 53.63 | 0.6341 | -695.0 | -581.4 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 12.57 | 53.27 | -31.56 | 57.88 | 0.6054 | -757.0 | -704.8 | |
| 0.86 | 2.07 | 0.54 | 1.29 | 12.54 | 52.81 | -32.02 | 58.30 | 0.6106 | -731.9 | -551.1 | |
| 8.90 | 12.61 | 5.61 | 7.95 | 13.72 | 52.60 | -32.23 | 56.82 | 0.6214 | -899.5 | -510.1 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 13.84 | 52.29 | -32.54 | 56.90 | 0.6257 | -609.0 | -547.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 11.41 | 52.38 | -32.45 | 60.26 | 0.6079 | -534.0 | -452.8 | |
| 0.00 | 2.16 | 0.00 | 1.36 | 12.81 | 52.15 | -32.67 | 58.45 | 0.6200 | -740.0 | -612.2 | |
| 0.00 | 2.25 | 0.00 | 1.43 | 13.61 | 51.92 | -32.90 | 57.51 | 0.6283 | -778.0 | -623.2 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 11.58 | 52.14 | -32.69 | 60.20 | 0.6119 | -527.0 | -386.1 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 13.12 | 51.82 | -33.01 | 58.28 | 0.6261 | -538.0 | -509.1 | |
| 2.07 | 10.97 | 1.32 | 7.00 | 13.35 | 51.67 | -33.16 | 58.07 | 0.6293 | -865.6 | -562.6 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 14.12 | 51.55 | -33.28 | 57.11 | 0.6360 | -676.0 | -491.3 | |
| 0.00 | 1.38 | 0.00 | 0.89 | 14.42 | 51.35 | -33.48 | 56.86 | 0.6403 | -566.0 | -450.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 13.97 | 51.35 | -33.48 | 57.46 | 0.6372 | -751.0 | -645.7 | |
| 0.69 | -12.00 | 0.44 | -12.00 | 13.42 | 51.18 | -33.64 | 58.35 | 0.6353 | -586.5 | 999999 | |
| 0.69 | 2.51 | 0.45 | 1.62 | 14.29 | 50.97 | -33.86 | 57.34 | 0.6437 | -644.1 | -494.8 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 13.88 | 50.93 | -33.90 | 57.92 | 0.6414 | -638.0 | -532.9 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 14.14 | 50.84 | -33.98 | 57.63 | 0.6440 | -413.0 | -358.6 | |
| 0.00 | 3.11 | 0.00 | 1.99 | 13.15 | 50.89 | -33.93 | 58.93 | 0.6369 | -810.0 | -603.4 | |
| 0.00 | 1.55 | 0.00 | 1.00 | 13.92 | 50.73 | -34.10 | 58.00 | 0.6439 | -538.0 | -474.1 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 13.35 | 50.79 | -34.04 | 58.74 | 0.6394 | -394.0 | -342.8 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 14.99 | 49.72 | -35.11 | 57.34 | 0.6622 | 743.0 | 577.5 | |
| 0.00 | 5.01 | 0.00 | 3.27 | 13.53 | 49.72 | -35.11 | 59.29 | 0.6527 | 439.0 | 321.1 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 14.33 | 49.58 | -35.25 | 58.31 | 0.6595 | -463.0 | -332.2 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 15.29 | 49.17 | -35.66 | 57.35 | 0.6701 | 655.0 | 593.1 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 13.16 | 49.52 | -35.31 | 59.92 | 0.6527 | 626.0 | 583.3 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 12.97 | 49.14 | -35.69 | 60.45 | 0.6559 | 861.0 | 694.5 | |
| 4.41 | 48.55 | 2.91 | 32.09 | 13.59 | 48.84 | -35.99 | 59.82 | 0.6631 | 858.0 | 558.3 | |
| 0.00 | 1.99 | 0.00 | 1.30 | 12.20 | 49.00 | -35.83 | 61.60 | 0.6528 | 791.0 | 683.8 | |
| 0.95 | -29.00 | 0.63 | -29.00 | 13.41 | 48.72 | -36.11 | 60.14 | 0.6633 | 973.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 12.13 | 48.67 | -36.16 | 61.92 | 0.6562 | 658.0 | 475.2 | |
| 3.97 | -29.00 | 2.64 | -29.00 | 13.54 | 48.36 | -36.47 | 60.22 | 0.6682 | 872.7 | 999999 | |
| 0.69 | 2.07 | 0.46 | 1.37 | 12.72 | 48.35 | -36.48 | 61.33 | 0.6634 | 818.4 | 638.0 | |
| 3.02 | 15.29 | 2.01 | 10.19 | 13.25 | 47.95 | -36.88 | 60.87 | 0.6710 | 741.8 | 629.9 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 13.72 | 47.67 | -37.16 | 60.44 | 0.6769 | 214.0 | 330.6 | |
| 2.25 | -35.00 | 1.50 | -35.00 | 13.12 | 47.66 | -37.16 | 61.24 | 0.6734 | 640.1 | 999999 | |
| 0.43 | 1.73 | 0.29 | 1.16 | 13.54 | 47.55 | -37.28 | 60.76 | 0.6772 | 525.6 | 423.1 | |
| 0.00 | 2.94 | 0.00 | 2.02 | 15.72 | 46.96 | -37.87 | 58.33 | 0.6966 | 836.0 | 636.4 | |
| 0.00 | 5.01 | 0.00 | 3.44 | 15.28 | 46.90 | -37.93 | 58.94 | 0.6946 | 822.0 | 674.4 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 13.04 | 47.02 | -37.81 | 61.75 | 0.6802 | 556.0 | 412.8 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 14.98 | 46.61 | -38.22 | 59.50 | 0.6960 | 541.0 | 477.0 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 14.67 | 46.51 | -38.31 | 59.96 | 0.6952 | 546.0 | 456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
