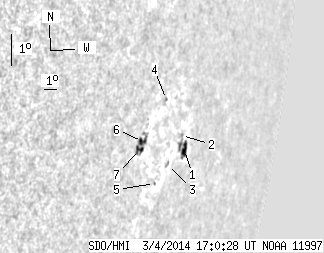

SDO HMI 2014-03-04 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.66 | 32.73 | 17.05 | 48.25 | -12.31 | 155.18 | 71.45 | 259.46 | 0.9432 | -48.0 | 77.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 13.21 | 8.38 | 21.18 | -12.14 | 156.97 | 73.25 | 259.53 | 0.9534 | 332.9 | 351.3 | |
| 0.00 | 1.55 | 0.00 | 2.45 | -11.78 | 156.41 | 72.68 | 259.94 | 0.9506 | 365.0 | 410.9 | |
| 0.00 | 2.07 | 0.00 | 3.13 | -12.75 | 155.65 | 71.93 | 258.96 | 0.9461 | 240.0 | 179.1 | |
| 0.00 | 0.78 | 0.00 | 1.11 | -10.92 | 154.42 | 70.69 | 260.99 | 0.9398 | -199.0 | -232.3 | |
| 0.00 | 0.95 | 0.00 | 1.38 | -13.43 | 154.85 | 71.13 | 258.29 | 0.9414 | 270.0 | 320.1 | |
| 3.11 | 14.17 | 4.17 | 19.00 | -12.35 | 153.07 | 69.34 | 259.54 | 0.9311 | -501.7 | -369.4 | |
| 3.37 | -6.00 | 4.50 | -6.00 | -12.61 | 152.96 | 69.23 | 259.27 | 0.9303 | -529.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
