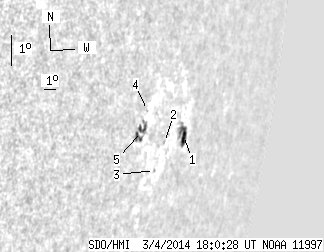

SDO HMI 2014-03-04 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.34 | 30.14 | 12.21 | 45.75 | -12.28 | 155.23 | 72.05 | 259.45 | 0.9465 | 144.4 | -78.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.34 | 14.86 | 12.21 | 24.57 | -12.11 | 156.95 | 73.77 | 259.52 | 0.9560 | 224.6 | 264.0 | |
| 0.00 | 0.69 | 0.00 | 1.05 | -12.52 | 155.24 | 72.07 | 259.20 | 0.9470 | 274.0 | 239.2 | |
| 0.00 | 0.78 | 0.00 | 1.16 | -13.42 | 154.88 | 71.71 | 258.27 | 0.9447 | 355.0 | 317.2 | |
| 0.00 | 0.60 | 0.00 | 0.84 | -11.79 | 153.17 | 70.00 | 260.10 | 0.9353 | -463.0 | -355.9 | |
| 0.00 | 13.21 | 0.00 | 18.13 | -12.45 | 153.02 | 69.84 | 259.41 | 0.9342 | -567.0 | -342.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
