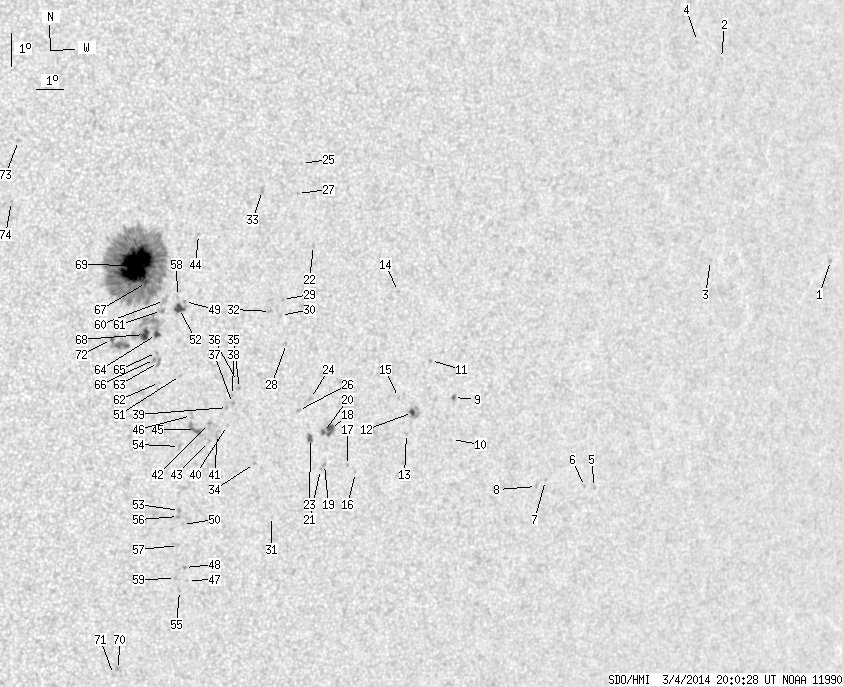

SDO HMI 2014-03-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.13 | 537.45 | 45.37 | 298.02 | -13.37 | 108.23 | 26.16 | 254.55 | 0.4469 | 163.9 | 226.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 1.08 | -10.11 | 133.50 | 51.43 | 262.84 | 0.7781 | 572.0 | 507.7 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -4.61 | 127.74 | 45.67 | 270.66 | 0.7154 | 427.0 | 377.4 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -10.62 | 128.08 | 46.01 | 262.22 | 0.7161 | 472.0 | 464.8 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -4.19 | 126.69 | 44.62 | 271.40 | 0.7031 | 526.0 | 453.0 | |
| 0.00 | 1.38 | 0.00 | 0.94 | -17.76 | 124.84 | 42.77 | 251.66 | 0.6836 | 512.0 | 485.9 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -17.76 | 124.42 | 42.35 | 251.56 | 0.6785 | 609.0 | 524.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -17.71 | 122.77 | 40.70 | 251.26 | 0.6583 | 628.0 | 519.7 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -17.92 | 122.46 | 40.39 | 250.87 | 0.6548 | 587.0 | 535.1 | |
| 0.60 | 2.42 | 0.37 | 1.49 | -15.51 | 118.58 | 36.51 | 253.71 | 0.5996 | 748.9 | 608.0 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -16.77 | 118.78 | 36.71 | 251.70 | 0.6051 | -710.0 | -590.9 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -14.47 | 117.51 | 35.44 | 255.20 | 0.5829 | 708.0 | 618.8 | |
| 2.25 | 8.55 | 1.36 | 5.20 | -16.06 | 117.13 | 35.06 | 252.39 | 0.5814 | 923.0 | 680.6 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -16.71 | 117.04 | 34.97 | 251.27 | 0.5818 | 614.0 | 504.3 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -12.50 | 115.99 | 33.92 | 258.34 | 0.5585 | -699.0 | -536.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -15.65 | 116.52 | 34.45 | 252.91 | 0.5721 | 702.0 | 662.7 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -18.00 | 115.39 | 33.32 | 248.45 | 0.5639 | 678.0 | 454.1 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -17.81 | 115.05 | 32.98 | 248.64 | 0.5586 | 565.0 | 487.2 | |
| 3.97 | 9.76 | 2.34 | 5.75 | -16.77 | 114.22 | 32.14 | 250.14 | 0.5438 | -738.4 | -673.1 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -17.84 | 114.20 | 32.13 | 248.23 | 0.5473 | -672.0 | -575.6 | |
| 0.95 | -18.00 | 0.56 | -18.00 | -16.88 | 113.98 | 31.91 | 249.85 | 0.5409 | -932.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -18.00 | 114.09 | 32.02 | 247.90 | 0.5463 | -547.0 | -416.7 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -11.33 | 112.78 | 30.70 | 259.97 | 0.5105 | 754.0 | 659.2 | |
| 1.81 | 4.23 | 1.06 | 2.48 | -17.09 | 113.54 | 31.47 | 249.29 | 0.5356 | -849.0 | -666.7 | |
| 0.00 | 2.33 | 0.00 | 1.36 | -15.89 | 113.33 | 31.26 | 251.40 | 0.5286 | -727.0 | -615.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -8.92 | 112.11 | 30.04 | 264.69 | 0.4986 | 630.0 | 436.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -16.28 | 112.96 | 30.89 | 250.54 | 0.5247 | -815.0 | -675.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -9.82 | 112.05 | 29.98 | 262.88 | 0.4982 | 491.0 | 427.9 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -14.30 | 112.21 | 30.14 | 254.02 | 0.5082 | -617.0 | -557.8 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -13.00 | 111.89 | 29.82 | 256.48 | 0.5004 | -532.0 | -489.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -13.48 | 111.88 | 29.81 | 255.52 | 0.5014 | -436.0 | -409.2 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -19.52 | 112.60 | 30.53 | 244.43 | 0.5328 | -490.0 | -405.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -13.38 | 111.52 | 29.45 | 255.61 | 0.4958 | -759.0 | -637.6 | |
| 0.00 | 2.76 | 0.00 | 1.56 | -9.81 | 110.84 | 28.77 | 262.79 | 0.4799 | 768.0 | 571.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -17.96 | 111.67 | 29.60 | 246.78 | 0.5134 | -739.0 | -604.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -15.74 | 110.77 | 28.70 | 250.61 | 0.4920 | -825.0 | -649.9 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -15.54 | 110.67 | 28.59 | 250.97 | 0.4898 | -560.0 | -568.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -16.21 | 110.59 | 28.52 | 249.61 | 0.4912 | -856.0 | -727.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -15.97 | 110.56 | 28.48 | 250.07 | 0.4897 | -920.0 | -682.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -16.34 | 110.44 | 28.37 | 249.27 | 0.4895 | -806.0 | -648.4 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -16.88 | 110.52 | 28.45 | 248.25 | 0.4928 | -652.0 | -597.0 | |
| 0.00 | 3.54 | 0.00 | 2.01 | -17.17 | 110.22 | 28.15 | 247.52 | 0.4898 | -699.0 | -609.4 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -16.85 | 109.88 | 27.81 | 247.96 | 0.4838 | -988.0 | -743.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -17.39 | 109.97 | 27.90 | 246.94 | 0.4873 | -722.0 | -587.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -11.24 | 108.79 | 26.71 | 259.37 | 0.4505 | 733.0 | 484.0 | |
| 0.00 | 7.86 | 0.00 | 4.43 | -17.06 | 109.43 | 27.36 | 247.29 | 0.4782 | -953.0 | -846.9 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -16.65 | 109.22 | 27.15 | 248.00 | 0.4735 | -611.0 | -555.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -21.64 | 109.98 | 27.91 | 238.92 | 0.5101 | -636.0 | -458.1 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -21.25 | 109.79 | 27.72 | 239.49 | 0.5053 | -842.0 | -696.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -13.25 | 108.53 | 26.46 | 254.84 | 0.4512 | -524.0 | -399.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -19.95 | 109.47 | 27.39 | 241.67 | 0.4934 | -605.0 | -403.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -15.47 | 108.67 | 26.60 | 250.14 | 0.4607 | -702.0 | -535.2 | |
| 4.40 | 7.26 | 2.44 | 4.02 | -13.47 | 108.38 | 26.31 | 254.31 | 0.4496 | -844.7 | -606.7 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -19.53 | 109.28 | 27.21 | 242.34 | 0.4886 | -817.0 | -702.2 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -17.60 | 108.95 | 26.88 | 245.91 | 0.4740 | -813.0 | -634.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -21.96 | 109.76 | 27.69 | 238.18 | 0.5092 | -773.0 | -644.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -19.72 | 109.28 | 27.21 | 241.98 | 0.4896 | -809.0 | -629.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -20.60 | 109.45 | 27.37 | 240.44 | 0.4968 | -724.0 | -552.7 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -13.12 | 108.27 | 26.20 | 255.04 | 0.4470 | -637.0 | -475.3 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -21.61 | 109.54 | 27.47 | 238.66 | 0.5042 | -723.0 | -544.5 | |
| 0.00 | 5.35 | 0.00 | 2.95 | -13.26 | 107.85 | 25.78 | 254.55 | 0.4410 | -151.0 | -76.9 | |
| 0.00 | 3.45 | 0.00 | 1.90 | -13.56 | 107.78 | 25.71 | 253.85 | 0.4409 | -69.0 | -248.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.72 | 107.98 | 25.91 | 249.24 | 0.4517 | -658.0 | -521.4 | |
| 0.00 | 3.02 | 0.00 | 1.67 | -15.12 | 107.87 | 25.80 | 250.46 | 0.4477 | -777.0 | -659.5 | |
| 1.90 | 38.43 | 1.05 | 21.15 | -14.29 | 107.69 | 25.62 | 252.20 | 0.4420 | -696.9 | -12.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -14.83 | 107.76 | 25.69 | 251.05 | 0.4450 | -793.0 | -624.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -15.04 | 107.72 | 25.65 | 250.56 | 0.4452 | -1010.0 | -844.5 | |
| 0.78 | 355.50 | 0.43 | 194.05 | -12.76 | 107.18 | 25.11 | 255.43 | 0.4295 | 826.3 | 480.9 | |
| 4.92 | -64.00 | 2.71 | -64.00 | -14.31 | 107.29 | 25.22 | 251.95 | 0.4361 | -879.4 | 999999 | |
| 60.03 | -67.00 | 32.77 | -67.00 | -12.27 | 106.80 | 24.73 | 256.42 | 0.4223 | 1358.9 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.64 | -24.51 | 108.10 | 26.02 | 232.32 | 0.5065 | -749.0 | -576.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -24.67 | 107.95 | 25.88 | 231.90 | 0.5060 | -701.0 | -541.0 | |
| 0.52 | 15.29 | 0.28 | 8.36 | -14.51 | 106.20 | 24.13 | 250.89 | 0.4206 | -775.2 | -238.3 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -8.73 | 102.66 | 20.59 | 264.44 | 0.3507 | -831.0 | -643.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -10.55 | 102.55 | 20.48 | 259.22 | 0.3516 | -721.0 | -534.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
