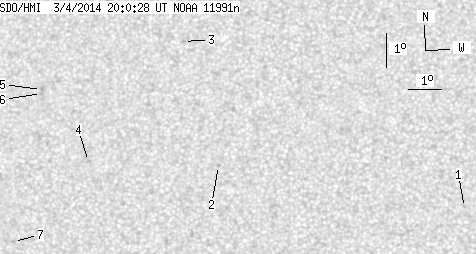

SDO HMI 2014-03-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.95 | 0.00 | 4.01 | -13.31 | 73.62 | -8.46 | 128.72 | 0.1880 | -331.3 | -316.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.26 | -15.28 | 84.47 | 2.40 | 196.12 | 0.1462 | -743.0 | -530.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -13.99 | 76.92 | -5.15 | 143.52 | 0.1472 | 892.0 | 709.7 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -10.28 | 75.93 | -6.14 | 116.96 | 0.1186 | 1063.0 | 834.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -13.80 | 72.91 | -9.16 | 126.82 | 0.1939 | -832.0 | -614.2 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -11.62 | 71.55 | -10.52 | 113.65 | 0.1961 | -988.0 | -785.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -11.74 | 71.55 | -10.53 | 114.20 | 0.1970 | -827.0 | -663.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -16.14 | 70.45 | -11.62 | 129.08 | 0.2504 | -884.0 | -686.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
