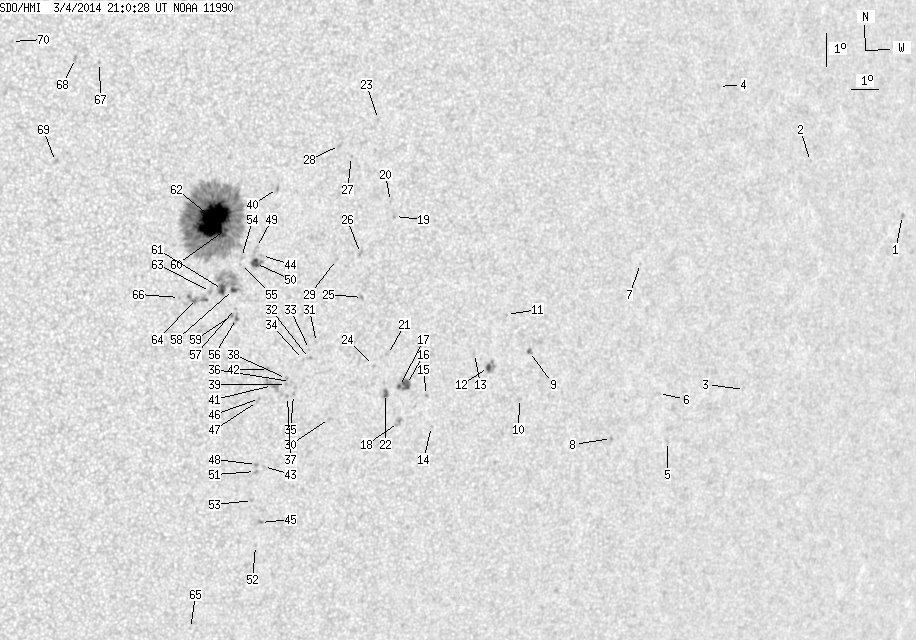

SDO HMI 2014-03-04 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.40 | 534.73 | 46.82 | 297.98 | -13.16 | 108.28 | 26.76 | 255.23 | 0.4549 | 219.6 | 229.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.44 | -10.09 | 133.49 | 51.97 | 262.86 | 0.7839 | 579.0 | 500.9 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -8.90 | 128.95 | 47.43 | 264.58 | 0.7332 | 461.0 | 371.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -15.89 | 127.63 | 46.11 | 254.87 | 0.7204 | 472.0 | 481.3 | |
| 0.00 | 1.99 | 0.00 | 1.34 | -7.03 | 124.74 | 43.22 | 267.47 | 0.6827 | 73.0 | 130.0 | |
| 0.00 | 2.33 | 0.00 | 1.59 | -17.72 | 124.80 | 43.28 | 251.83 | 0.6896 | 580.0 | 419.6 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -16.32 | 124.02 | 42.50 | 253.72 | 0.6778 | 180.0 | 288.9 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -12.52 | 122.41 | 40.89 | 259.20 | 0.6529 | 545.0 | 435.3 | |
| 0.00 | 1.64 | 0.00 | 1.08 | -17.82 | 122.46 | 40.94 | 251.17 | 0.6615 | 687.0 | 572.6 | |
| 0.69 | 2.85 | 0.43 | 1.77 | -15.47 | 118.61 | 37.09 | 253.93 | 0.6072 | 725.4 | 595.3 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -16.90 | 118.53 | 37.01 | 251.58 | 0.6094 | -181.0 | -240.1 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -14.43 | 117.52 | 36.00 | 255.40 | 0.5905 | 695.0 | 655.9 | |
| 2.07 | 7.86 | 1.27 | 4.81 | -16.05 | 117.16 | 35.64 | 252.57 | 0.5891 | 905.2 | 675.4 | |
| 0.00 | 1.55 | 0.00 | 0.94 | -15.67 | 116.55 | 35.03 | 253.05 | 0.5800 | 764.0 | 560.1 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -17.97 | 115.40 | 33.88 | 248.74 | 0.5712 | 512.0 | 465.5 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -17.05 | 115.02 | 33.50 | 250.18 | 0.5631 | 800.0 | 685.8 | |
| 4.41 | 11.32 | 2.61 | 6.70 | -16.77 | 114.22 | 32.70 | 250.37 | 0.5514 | -725.5 | -644.3 | |
| 0.78 | -16.00 | 0.46 | -16.00 | -16.84 | 113.98 | 32.46 | 250.14 | 0.5483 | -940.6 | 999999 | |
| 0.00 | 3.46 | 0.00 | 2.05 | -17.93 | 114.16 | 32.64 | 248.30 | 0.5544 | -664.0 | -593.0 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -11.79 | 113.00 | 31.48 | 259.22 | 0.5224 | 696.0 | 545.1 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -11.35 | 112.80 | 31.28 | 260.03 | 0.5190 | 728.0 | 662.3 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -15.92 | 113.37 | 31.85 | 251.59 | 0.5369 | -770.0 | -627.8 | |
| 1.81 | 3.80 | 1.07 | 2.24 | -17.09 | 113.51 | 31.99 | 249.52 | 0.5427 | -850.0 | -652.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -8.95 | 112.12 | 30.60 | 264.66 | 0.5071 | 683.0 | 482.5 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -16.28 | 112.92 | 31.40 | 250.76 | 0.5319 | -509.0 | -539.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -14.27 | 112.20 | 30.68 | 254.27 | 0.5158 | -646.0 | -531.1 | |
| 0.00 | 3.02 | 0.00 | 1.74 | -12.96 | 111.94 | 30.42 | 256.72 | 0.5091 | -622.0 | -441.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -10.10 | 111.29 | 29.77 | 262.29 | 0.4953 | 700.0 | 610.6 | |
| 0.00 | 2.68 | 0.00 | 1.52 | -9.80 | 110.84 | 29.32 | 262.86 | 0.4884 | 806.0 | 507.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -13.19 | 111.12 | 29.60 | 256.04 | 0.4976 | -629.0 | -516.6 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -17.96 | 111.63 | 30.11 | 247.05 | 0.5204 | -692.0 | -526.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -15.71 | 110.78 | 29.26 | 250.94 | 0.4999 | -758.0 | -629.9 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -16.20 | 110.61 | 29.09 | 249.90 | 0.4992 | -780.0 | -700.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -15.94 | 110.57 | 29.05 | 250.40 | 0.4976 | -784.0 | -688.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -16.25 | 110.41 | 28.89 | 249.72 | 0.4965 | -782.0 | -646.2 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -17.32 | 110.23 | 28.71 | 247.54 | 0.4983 | -669.0 | -575.7 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -16.93 | 110.06 | 28.54 | 248.20 | 0.4943 | -479.0 | -536.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -17.39 | 110.03 | 28.51 | 247.29 | 0.4958 | -723.0 | -624.7 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -16.85 | 109.90 | 28.38 | 248.28 | 0.4917 | -831.0 | -693.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -17.03 | 109.93 | 28.41 | 247.94 | 0.4929 | -789.0 | -647.7 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -11.20 | 108.85 | 27.33 | 259.60 | 0.4598 | 624.0 | 476.7 | |
| 0.00 | 8.90 | 0.00 | 5.04 | -17.09 | 109.45 | 27.93 | 247.56 | 0.4864 | -861.0 | -776.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -16.62 | 109.23 | 27.71 | 248.38 | 0.4813 | -793.0 | -703.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -19.55 | 109.56 | 28.04 | 242.88 | 0.4997 | -545.0 | -413.0 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -13.22 | 108.52 | 27.00 | 255.12 | 0.4593 | -518.0 | -409.4 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -21.25 | 109.79 | 28.27 | 239.89 | 0.5123 | -756.0 | -676.6 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -17.50 | 109.06 | 27.54 | 246.51 | 0.4827 | -683.0 | -494.6 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -17.60 | 109.00 | 27.48 | 246.29 | 0.4824 | -762.0 | -552.9 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -19.50 | 109.30 | 27.78 | 242.79 | 0.4960 | -823.0 | -725.3 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -12.99 | 108.33 | 26.81 | 255.55 | 0.4557 | -522.0 | -402.6 | |
| 3.71 | 7.77 | 2.07 | 4.33 | -13.47 | 108.35 | 26.83 | 254.52 | 0.4573 | -858.6 | -586.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -19.71 | 109.30 | 27.78 | 242.39 | 0.4972 | -637.0 | -645.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -21.96 | 109.76 | 28.24 | 238.59 | 0.5162 | -706.0 | -581.8 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -20.60 | 109.37 | 27.85 | 240.78 | 0.5030 | -709.0 | -640.9 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -13.32 | 107.85 | 26.33 | 254.65 | 0.4495 | 90.0 | -88.7 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -13.53 | 107.84 | 26.32 | 254.19 | 0.4500 | -512.0 | -333.8 | |
| 0.35 | 3.46 | 0.19 | 1.92 | -15.15 | 107.91 | 26.39 | 250.72 | 0.4564 | -750.0 | -608.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.85 | 107.83 | 26.32 | 251.32 | 0.4542 | -788.0 | -611.1 | |
| 1.73 | 36.45 | 0.96 | 20.15 | -14.29 | 107.69 | 26.18 | 252.47 | 0.4502 | -672.2 | -17.3 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -15.07 | 107.73 | 26.21 | 250.80 | 0.4534 | -940.0 | -845.9 | |
| 1.73 | 363.47 | 0.95 | 199.27 | -12.51 | 107.22 | 25.70 | 256.21 | 0.4378 | 717.3 | 461.2 | |
| 3.63 | -58.00 | 2.00 | -58.00 | -14.31 | 107.32 | 25.80 | 252.25 | 0.4447 | -894.9 | 999999 | |
| 63.49 | -60.00 | 34.81 | -60.00 | -12.24 | 106.79 | 25.27 | 256.69 | 0.4305 | 1320.2 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -14.39 | 106.92 | 25.40 | 251.87 | 0.4391 | -177.0 | -86.1 | |
| 0.00 | 11.83 | 0.00 | 6.50 | -14.62 | 106.48 | 24.96 | 251.11 | 0.4333 | 234.0 | -303.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -24.64 | 107.98 | 26.46 | 232.49 | 0.5127 | -726.0 | -565.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -14.62 | 105.90 | 24.38 | 250.79 | 0.4248 | -721.0 | -570.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -7.75 | 102.70 | 21.18 | 267.25 | 0.3600 | -725.0 | -508.0 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -7.67 | 101.93 | 20.41 | 267.50 | 0.3474 | -777.0 | -619.6 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -10.75 | 101.47 | 19.95 | 258.45 | 0.3436 | -780.0 | -615.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -7.25 | 99.87 | 18.35 | 268.85 | 0.3138 | -784.0 | -598.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
