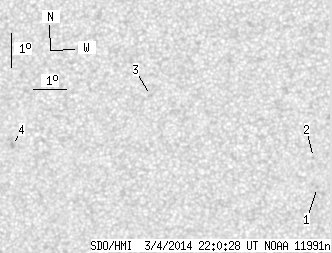

SDO HMI 2014-03-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.13 | 0.00 | 3.07 | -11.65 | 75.97 | -4.99 | 139.44 | 0.1292 | 401.8 | 75.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.65 | -13.04 | 80.88 | -0.09 | 179.14 | 0.1012 | 807.0 | 593.7 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -12.14 | 80.76 | -0.21 | 177.60 | 0.0857 | 712.0 | 553.6 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -10.26 | 75.83 | -5.13 | 121.02 | 0.1032 | 990.0 | 671.7 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -11.68 | 71.59 | -9.38 | 116.27 | 0.1789 | -902.0 | -800.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
