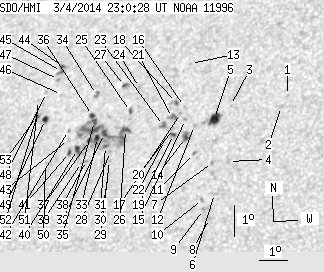

SDO HMI 2014-03-04 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.47 | 188.19 | 21.44 | 117.00 | 13.69 | 49.50 | -30.92 | 55.69 | 0.6062 | -6.3 | 173.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.31 | 14.40 | 55.19 | -25.23 | 49.13 | 0.5482 | -726.0 | -623.3 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 14.06 | 55.02 | -25.40 | 49.80 | 0.5469 | -738.0 | -597.0 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 14.19 | 53.26 | -27.16 | 51.48 | 0.5678 | 591.0 | 444.5 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 12.41 | 53.41 | -27.01 | 53.93 | 0.5509 | -653.0 | -497.9 | |
| 7.34 | 12.53 | 4.42 | 7.54 | 13.81 | 52.76 | -27.66 | 52.54 | 0.5702 | -931.8 | -630.8 | |
| 0.00 | 2.94 | 0.00 | 1.74 | 11.43 | 53.03 | -27.39 | 55.79 | 0.5473 | -35.0 | -97.0 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 12.41 | 52.86 | -27.56 | 54.48 | 0.5574 | -492.0 | -485.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 10.65 | 52.94 | -27.48 | 57.08 | 0.5423 | -818.0 | -686.1 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 10.95 | 52.71 | -27.71 | 56.85 | 0.5475 | -750.0 | -678.4 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 11.27 | 52.64 | -27.78 | 56.42 | 0.5508 | -666.0 | -630.8 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 12.74 | 52.20 | -28.22 | 54.64 | 0.5678 | -674.0 | -561.5 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 13.63 | 52.08 | -28.33 | 53.46 | 0.5763 | -813.0 | -626.9 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 15.64 | 51.66 | -28.76 | 51.08 | 0.5977 | -538.0 | -471.9 | |
| 1.99 | 6.39 | 1.20 | 3.87 | 13.27 | 51.82 | -28.60 | 54.23 | 0.5764 | -958.3 | -720.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 13.84 | 51.74 | -28.68 | 53.48 | 0.5819 | -752.0 | -652.0 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 14.26 | 51.65 | -28.77 | 52.98 | 0.5864 | -710.0 | -539.3 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 14.05 | 51.54 | -28.88 | 53.39 | 0.5859 | -754.0 | -730.0 | |
| 0.43 | 3.20 | 0.26 | 1.96 | 14.41 | 51.35 | -29.07 | 53.06 | 0.5910 | -702.0 | -493.1 | |
| 1.30 | 2.42 | 0.79 | 1.47 | 13.39 | 51.38 | -29.03 | 54.47 | 0.5824 | -793.1 | -635.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 13.58 | 51.36 | -29.06 | 54.22 | 0.5842 | -554.0 | -405.1 | |
| 0.00 | 3.89 | 0.00 | 2.38 | 13.94 | 51.27 | -29.14 | 53.79 | 0.5880 | -687.0 | -648.1 | |
| 0.00 | 2.25 | 0.00 | 1.37 | 13.22 | 51.09 | -29.33 | 54.98 | 0.5844 | -610.0 | -524.0 | |
| 0.00 | 3.63 | 0.00 | 2.22 | 13.70 | 50.99 | -29.43 | 54.39 | 0.5894 | -784.0 | -589.9 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 14.98 | 49.95 | -30.47 | 53.56 | 0.6111 | 573.0 | 542.1 | |
| 0.78 | 2.07 | 0.48 | 1.29 | 14.23 | 49.74 | -30.67 | 54.77 | 0.6076 | -370.7 | -271.8 | |
| 2.33 | 83.46 | 1.45 | 52.22 | 13.67 | 49.65 | -30.77 | 55.64 | 0.6044 | -421.1 | 450.2 | |
| 0.60 | 3.02 | 0.38 | 1.90 | 15.09 | 49.40 | -31.02 | 53.91 | 0.6180 | 738.3 | 645.2 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 13.00 | 49.21 | -31.21 | 56.96 | 0.6046 | 855.0 | 749.2 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 12.72 | 49.21 | -31.21 | 57.36 | 0.6025 | 813.0 | 725.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 12.27 | 49.24 | -31.18 | 57.97 | 0.5990 | 645.0 | 582.4 | |
| 0.78 | -26.00 | 0.48 | -26.00 | 13.17 | 49.01 | -31.41 | 56.88 | 0.6082 | 925.3 | 999999 | |
| 2.51 | -26.00 | 1.57 | -26.00 | 13.59 | 48.91 | -31.51 | 56.38 | 0.6123 | 965.9 | 999999 | |
| 2.51 | -26.00 | 1.57 | -26.00 | 13.48 | 48.67 | -31.75 | 56.73 | 0.6142 | 966.4 | 999999 | |
| 0.00 | 3.20 | 0.00 | 2.03 | 14.87 | 48.42 | -32.00 | 55.04 | 0.6272 | -652.0 | -505.4 | |
| 2.16 | -26.00 | 1.36 | -26.00 | 14.00 | 48.49 | -31.93 | 56.16 | 0.6201 | -527.8 | 999999 | |
| 1.64 | -26.00 | 1.04 | -26.00 | 14.20 | 48.38 | -32.04 | 55.98 | 0.6227 | -598.8 | 999999 | |
| 1.47 | -26.00 | 0.92 | -26.00 | 13.41 | 48.40 | -32.02 | 57.06 | 0.6169 | 962.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 12.78 | 48.38 | -32.04 | 57.96 | 0.6126 | 918.0 | 743.7 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 12.72 | 48.21 | -32.21 | 58.17 | 0.6143 | 523.0 | 444.6 | |
| 2.59 | 10.02 | 1.63 | 6.30 | 13.15 | 48.00 | -32.42 | 57.74 | 0.6196 | 813.9 | 664.3 | |
| 1.04 | 3.11 | 0.65 | 1.96 | 13.07 | 47.72 | -32.70 | 58.07 | 0.6223 | 686.5 | 529.2 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 13.78 | 47.58 | -32.84 | 57.20 | 0.6289 | 559.0 | 498.6 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 13.49 | 47.62 | -32.80 | 57.57 | 0.6264 | 570.0 | 474.9 | |
| 0.86 | 5.36 | 0.56 | 3.48 | 15.87 | 46.99 | -33.42 | 54.88 | 0.6501 | 769.9 | 614.1 | |
| 0.60 | -44.00 | 0.39 | -44.00 | 15.71 | 46.99 | -33.43 | 55.10 | 0.6490 | 864.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 14.96 | 47.12 | -33.30 | 55.97 | 0.6422 | 748.0 | 573.8 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 15.46 | 46.92 | -33.50 | 55.48 | 0.6479 | 709.0 | 653.8 | |
| 0.00 | 1.99 | 0.00 | 1.29 | 15.07 | 46.55 | -33.87 | 56.28 | 0.6493 | 568.0 | 487.5 | |
| 2.42 | 3.72 | 1.56 | 2.39 | 14.20 | 46.66 | -33.76 | 57.35 | 0.6421 | 789.4 | 614.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 12.79 | 46.89 | -33.53 | 59.11 | 0.6300 | 550.0 | 517.3 | |
| 0.00 | 1.30 | 0.00 | 0.84 | 14.83 | 46.29 | -34.13 | 56.79 | 0.6505 | 622.0 | 419.8 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 14.51 | 46.35 | -34.07 | 57.18 | 0.6477 | 611.0 | 474.3 | |
| 1.12 | 3.20 | 0.73 | 2.07 | 14.32 | 46.31 | -34.11 | 57.46 | 0.6469 | 692.1 | 526.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
