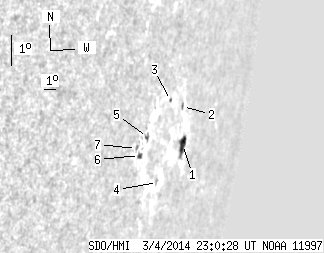

SDO HMI 2014-03-04 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.12 | 20.91 | 15.57 | 37.98 | -11.99 | 155.69 | 75.27 | 259.53 | 0.9628 | 122.5 | -4.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-04 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.57 | 10.45 | 13.08 | 20.79 | -11.90 | 157.14 | 76.72 | 259.52 | 0.9696 | 244.8 | 173.3 | |
| 0.00 | 1.73 | 0.00 | 3.27 | -10.85 | 156.26 | 75.84 | 260.67 | 0.9662 | 174.0 | 169.6 | |
| 0.43 | 0.95 | 0.75 | 1.65 | -10.85 | 154.81 | 74.40 | 260.80 | 0.9596 | -27.8 | -67.2 | |
| 0.00 | 0.95 | 0.00 | 1.67 | -13.30 | 155.22 | 74.80 | 258.21 | 0.9606 | 192.0 | 185.5 | |
| 0.00 | 2.76 | 0.00 | 4.36 | -12.16 | 153.22 | 72.80 | 259.53 | 0.9510 | -148.0 | -117.2 | |
| 1.12 | 2.51 | 1.74 | 3.88 | -12.76 | 152.81 | 72.40 | 258.93 | 0.9487 | -293.2 | -268.6 | |
| 0.00 | 1.56 | 0.00 | 2.36 | -12.60 | 152.39 | 71.98 | 259.13 | 0.9464 | -491.0 | -490.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
