SDO HMI 2014-03-05 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 161.33 | 738.28 | 85.60 | 391.70 | -25.37 | 90.05 | 10.19 | 206.90 | 0.3607 | -35.8 | -49.0 | |
|
previous
or next observation for the same group /

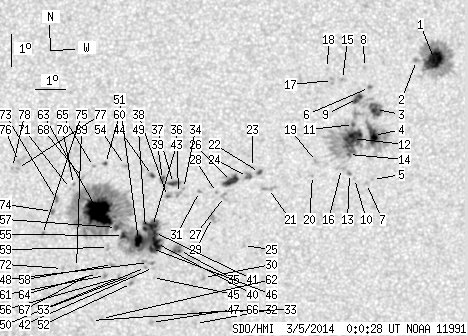

back to the solar disc SDO HMI 2014-03-05 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.19 | 88.48 | 12.89 | 47.14 | -21.54 | 96.59 | 16.72 | 226.76 | 0.3689 | 1113.3 | 447.7 | |
| 0.00 | 3.02 | 0.00 | 1.61 | -21.59 | 95.99 | 16.12 | 225.68 | 0.3625 | 933.0 | 690.5 | |
| 8.73 | 29.03 | 4.64 | 15.42 | -23.14 | 94.80 | 14.93 | 220.49 | 0.3665 | 933.7 | 741.0 | |
| 11.15 | 57.03 | 5.95 | 30.46 | -23.95 | 94.83 | 14.96 | 219.02 | 0.3763 | 909.4 | 349.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -25.32 | 94.96 | 15.09 | 216.86 | 0.3940 | 742.0 | 612.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -22.47 | 94.53 | 14.66 | 221.30 | 0.3558 | 980.0 | 786.8 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -25.45 | 94.77 | 14.90 | 216.32 | 0.3938 | 772.0 | 587.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -21.86 | 94.30 | 14.43 | 222.12 | 0.3463 | 822.0 | 572.5 | |
| 4.41 | -3.00 | 2.33 | -3.00 | -22.82 | 94.16 | 14.30 | 219.94 | 0.3561 | 1081.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -25.30 | 94.34 | 14.48 | 215.80 | 0.3880 | 629.0 | 503.5 | |
| 0.86 | 84.51 | 0.46 | 45.01 | -23.62 | 94.12 | 14.25 | 218.32 | 0.3653 | 1118.8 | 553.6 | |
| 20.91 | -11.00 | 11.15 | -11.00 | -24.06 | 94.13 | 14.26 | 217.56 | 0.3707 | 1049.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -25.15 | 94.16 | 14.29 | 215.71 | 0.3844 | 969.0 | 719.2 | |
| 0.69 | -11.00 | 0.37 | -11.00 | -24.56 | 94.05 | 14.19 | 216.53 | 0.3761 | 775.0 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -22.25 | 93.61 | 13.74 | 220.00 | 0.3435 | 922.0 | 684.2 | |
| 0.00 | 3.46 | 0.00 | 1.85 | -25.00 | 93.87 | 14.00 | 215.43 | 0.3798 | 437.0 | 382.8 | |
| 0.00 | 2.85 | 0.00 | 1.50 | -22.29 | 93.28 | 13.41 | 219.27 | 0.3406 | 760.0 | 763.4 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -21.92 | 93.08 | 13.21 | 219.61 | 0.3341 | 557.0 | 421.2 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -24.81 | 93.00 | 13.14 | 214.12 | 0.3694 | 714.0 | 648.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -25.25 | 92.92 | 13.05 | 213.23 | 0.3743 | -595.0 | -531.0 | |
| 0.00 | 5.70 | 0.00 | 3.04 | -25.69 | 91.48 | 11.61 | 209.66 | 0.3681 | -605.0 | -642.2 | |
| 1.21 | 2.51 | 0.64 | 1.33 | -25.20 | 91.13 | 11.26 | 209.67 | 0.3585 | 842.9 | 640.2 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -25.04 | 90.88 | 11.01 | 209.37 | 0.3545 | 811.0 | 597.6 | |
| 0.00 | 4.75 | 0.00 | 2.52 | -25.33 | 90.74 | 10.87 | 208.64 | 0.3573 | 1051.0 | 864.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -27.50 | 90.81 | 10.94 | 205.82 | 0.3883 | -423.0 | -509.7 | |
| 7.34 | 12.36 | 3.89 | 6.54 | -25.50 | 90.22 | 10.35 | 207.26 | 0.3557 | 1053.9 | 618.1 | |
| 0.00 | 3.89 | 0.00 | 2.06 | -25.97 | 90.03 | 10.16 | 206.17 | 0.3610 | -582.0 | -528.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -25.85 | 89.75 | 9.88 | 205.72 | 0.3573 | 653.0 | 503.9 | |
| 0.00 | 5.70 | 0.00 | 3.04 | -26.64 | 89.68 | 9.81 | 204.55 | 0.3682 | -961.0 | -764.6 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -28.55 | 89.54 | 9.67 | 202.04 | 0.3951 | -847.0 | -679.9 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -25.83 | 89.18 | 9.31 | 204.46 | 0.3531 | -527.0 | -405.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -30.03 | 89.40 | 9.54 | 200.26 | 0.4159 | -730.0 | -599.9 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -29.67 | 89.34 | 9.47 | 200.47 | 0.4103 | -734.0 | -566.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.75 | 88.63 | 8.77 | 203.32 | 0.3483 | 380.0 | 341.4 | |
| 0.86 | 6.74 | 0.46 | 3.60 | -27.70 | 88.65 | 8.78 | 201.08 | 0.3774 | -903.0 | -868.5 | |
| 0.00 | 3.37 | 0.00 | 1.78 | -25.90 | 88.48 | 8.61 | 202.76 | 0.3496 | 464.0 | 124.2 | |
| 2.85 | 10.80 | 1.50 | 5.69 | -25.59 | 88.29 | 8.42 | 202.70 | 0.3438 | -821.4 | -613.4 | |
| 0.52 | 3.37 | 0.27 | 1.78 | -26.01 | 88.12 | 8.25 | 201.79 | 0.3489 | -558.5 | -179.1 | |
| 1.47 | -37.00 | 0.77 | -37.00 | -25.47 | 87.92 | 8.05 | 201.94 | 0.3397 | -918.5 | 999999 | |
| 8.30 | 335.53 | 4.42 | 177.39 | -27.49 | 87.85 | 7.99 | 199.56 | 0.3698 | -1051.5 | -358.1 | |
| 1.99 | -40.00 | 1.06 | -40.00 | -27.15 | 87.76 | 7.89 | 199.71 | 0.3640 | -1009.7 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -28.26 | 87.81 | 7.94 | 198.70 | 0.3811 | -475.0 | -452.5 | |
| 3.72 | -40.00 | 1.97 | -40.00 | -26.96 | 87.68 | 7.81 | 199.72 | 0.3607 | -1142.0 | 999999 | |
| 1.12 | 1.99 | 0.59 | 1.04 | -25.35 | 87.58 | 7.71 | 201.25 | 0.3359 | 801.8 | 653.4 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -28.58 | 87.80 | 7.93 | 198.38 | 0.3859 | -244.0 | -343.2 | |
| 1.81 | -40.00 | 0.97 | -40.00 | -27.65 | 87.70 | 7.83 | 199.04 | 0.3714 | -989.2 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -30.02 | 87.88 | 8.01 | 197.27 | 0.4080 | -686.0 | -558.4 | |
| 0.00 | 4.41 | 0.00 | 2.36 | -28.10 | 87.63 | 7.76 | 198.46 | 0.3778 | -674.0 | -735.8 | |
| 1.47 | -40.00 | 0.78 | -40.00 | -27.02 | 87.45 | 7.58 | 199.12 | 0.3605 | 338.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.26 | 87.54 | 7.67 | 198.11 | 0.3798 | -744.0 | -652.5 | |
| 8.04 | -40.00 | 4.27 | -40.00 | -27.41 | 87.24 | 7.37 | 198.25 | 0.3653 | 909.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -28.78 | 87.09 | 7.23 | 196.69 | 0.3855 | -842.0 | -705.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -28.52 | 87.08 | 7.21 | 196.87 | 0.3815 | -775.0 | -635.0 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -25.05 | 86.66 | 6.80 | 199.28 | 0.3261 | -917.0 | -729.1 | |
| 2.94 | -40.00 | 1.56 | -40.00 | -27.26 | 86.72 | 6.86 | 197.20 | 0.3604 | -684.7 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -28.59 | 86.67 | 6.80 | 195.93 | 0.3808 | -799.0 | -665.9 | |
| 2.25 | -40.00 | 1.19 | -40.00 | -27.01 | 86.47 | 6.61 | 196.84 | 0.3553 | -704.1 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -28.18 | 86.41 | 6.54 | 195.68 | 0.3732 | -585.0 | -656.5 | |
| 0.00 | 2.59 | 0.00 | 1.38 | -27.64 | 86.24 | 6.37 | 195.74 | 0.3642 | -669.0 | -502.7 | |
| 0.60 | 2.07 | 0.32 | 1.08 | -25.00 | 86.00 | 6.13 | 197.59 | 0.3218 | 668.4 | 520.8 | |
| 0.00 | 2.59 | 0.00 | 1.39 | -28.53 | 86.19 | 6.32 | 194.91 | 0.3778 | -807.0 | -658.3 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -29.91 | 86.14 | 6.27 | 193.79 | 0.3990 | -678.0 | -633.8 | |
| 43.90 | -40.00 | 23.15 | -40.00 | -26.51 | 85.84 | 5.98 | 195.75 | 0.3447 | -1291.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.47 | 85.92 | 6.05 | 194.33 | 0.3757 | -746.0 | -546.8 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.10 | 85.61 | 5.74 | 196.45 | 0.3214 | 726.0 | 453.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -29.98 | 85.80 | 5.93 | 193.02 | 0.3988 | -709.0 | -584.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -28.47 | 85.71 | 5.84 | 193.87 | 0.3750 | -670.0 | -518.3 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -25.45 | 85.26 | 5.39 | 195.19 | 0.3254 | -258.0 | -251.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -28.29 | 85.19 | 5.33 | 192.81 | 0.3701 | -745.0 | -584.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.67 | 84.97 | 5.11 | 194.23 | 0.3277 | -773.0 | -553.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -25.79 | 84.88 | 5.01 | 193.88 | 0.3294 | 243.0 | 166.1 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -28.33 | 84.72 | 4.85 | 191.69 | 0.3691 | -704.0 | -570.2 | |
| 0.00 | 2.77 | 0.00 | 1.45 | -26.14 | 84.43 | 4.56 | 192.43 | 0.3333 | -1039.0 | -868.2 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -26.52 | 84.31 | 4.44 | 191.85 | 0.3389 | -995.0 | -856.8 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -27.25 | 84.00 | 4.14 | 190.61 | 0.3497 | -923.0 | -725.0 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -24.96 | 83.14 | 3.27 | 189.64 | 0.3100 | -940.0 | -768.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.18 | 83.11 | 3.24 | 189.44 | 0.3135 | -987.0 | -856.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.15 | 82.95 | 3.08 | 188.98 | 0.3126 | -810.0 | -607.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
