SDO HMI 2014-03-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.60 | 95.30 | 9.71 | 56.02 | 16.77 | 101.33 | 22.01 | 318.03 | 0.5388 | 97.6 | -111.0 | |
|
previous
or next observation for the same group /

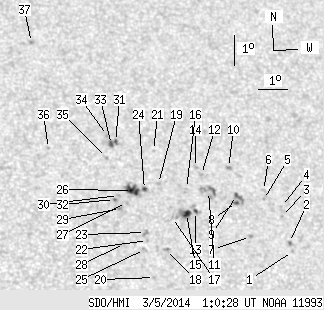

back to the solar disc SDO HMI 2014-03-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.46 | 15.16 | 105.01 | 25.69 | 311.43 | 0.5603 | -742.0 | -647.7 | |
| 0.35 | 1.90 | 0.21 | 1.14 | 15.44 | 104.95 | 25.63 | 311.90 | 0.5622 | -736.8 | -611.9 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 16.27 | 104.79 | 25.47 | 313.19 | 0.5683 | -526.0 | -478.9 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 16.60 | 104.83 | 25.51 | 313.57 | 0.5719 | -700.0 | -580.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 16.79 | 104.24 | 24.92 | 314.49 | 0.5677 | -602.0 | -473.8 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 17.09 | 104.28 | 24.97 | 314.83 | 0.5710 | -343.0 | -376.0 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 15.56 | 103.63 | 24.31 | 313.55 | 0.5495 | -718.0 | -568.5 | |
| 0.78 | 8.99 | 0.46 | 5.36 | 16.65 | 103.30 | 23.98 | 315.39 | 0.5567 | -854.8 | -624.3 | |
| 0.86 | -8.00 | 0.52 | -8.00 | 16.87 | 103.33 | 24.01 | 315.65 | 0.5593 | -715.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 17.78 | 103.19 | 23.87 | 316.99 | 0.5670 | -697.0 | -575.0 | |
| 0.00 | 11.23 | 0.00 | 6.66 | 16.96 | 102.39 | 23.07 | 316.89 | 0.5507 | -545.0 | -674.8 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 17.50 | 102.23 | 22.91 | 317.79 | 0.5548 | -739.0 | -593.5 | |
| 0.95 | 4.93 | 0.56 | 2.89 | 16.28 | 101.87 | 22.55 | 316.66 | 0.5385 | -533.4 | -354.5 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 17.72 | 102.05 | 22.74 | 318.28 | 0.5554 | -523.0 | -406.5 | |
| 3.46 | 10.98 | 2.02 | 6.42 | 16.20 | 101.56 | 22.24 | 316.95 | 0.5345 | -911.7 | -479.5 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 17.02 | 101.66 | 22.34 | 317.89 | 0.5441 | -684.0 | -633.0 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 16.05 | 101.07 | 21.75 | 317.38 | 0.5280 | -273.0 | -213.2 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 15.00 | 100.75 | 21.44 | 316.38 | 0.5137 | 730.0 | 582.2 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 17.13 | 100.73 | 21.41 | 319.23 | 0.5364 | -120.0 | -143.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 14.08 | 100.26 | 20.95 | 315.74 | 0.4989 | 801.0 | 567.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 18.21 | 100.70 | 21.38 | 320.61 | 0.5479 | 557.0 | 402.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 15.26 | 100.15 | 20.84 | 317.55 | 0.5104 | 644.0 | 513.3 | |
| 0.00 | 2.77 | 0.00 | 1.59 | 15.52 | 100.12 | 20.80 | 317.95 | 0.5128 | 683.0 | 579.4 | |
| 1.04 | 1.99 | 0.60 | 1.16 | 16.91 | 100.24 | 20.92 | 319.61 | 0.5293 | 499.8 | 365.8 | |
| 0.00 | 1.99 | 0.00 | 1.14 | 14.97 | 100.02 | 20.71 | 317.32 | 0.5059 | 680.0 | 582.2 | |
| 7.09 | 12.62 | 4.12 | 7.33 | 16.86 | 99.84 | 20.52 | 320.09 | 0.5249 | 810.0 | 435.2 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 16.46 | 99.59 | 20.27 | 319.92 | 0.5181 | 627.0 | 539.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 15.13 | 99.38 | 20.06 | 318.44 | 0.5012 | 603.0 | 505.3 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 16.26 | 99.37 | 20.05 | 319.96 | 0.5137 | 852.0 | 658.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 16.68 | 99.35 | 20.03 | 320.53 | 0.5182 | 500.0 | 537.9 | |
| 0.60 | 5.27 | 0.36 | 3.09 | 18.45 | 99.46 | 20.14 | 322.55 | 0.5393 | 734.7 | 657.9 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 16.54 | 99.20 | 19.88 | 320.56 | 0.5153 | 810.0 | 751.4 | |
| 1.47 | -31.00 | 0.86 | -31.00 | 18.34 | 99.31 | 19.99 | 322.63 | 0.5368 | 902.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 18.64 | 99.22 | 19.90 | 323.11 | 0.5393 | 780.0 | 643.2 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 17.91 | 99.09 | 19.77 | 322.41 | 0.5299 | 776.0 | 569.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.12 | 97.20 | 17.88 | 325.39 | 0.5159 | 640.0 | 560.9 | |
| 0.00 | 2.07 | 0.00 | 1.24 | 21.66 | 97.05 | 17.73 | 329.36 | 0.5577 | 742.0 | 586.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
