SDO HMI 2014-03-05 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160.52 | 711.55 | 85.52 | 378.93 | -25.40 | 90.17 | 11.40 | 209.41 | 0.3702 | -99.2 | -20.6 | |
|
previous
or next observation for the same group /

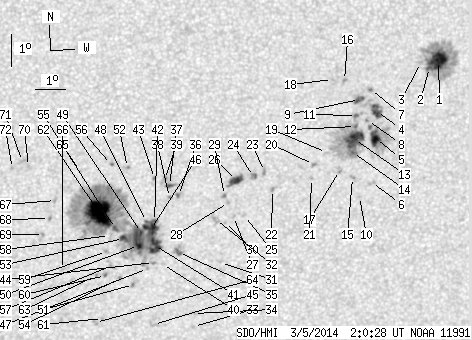

back to the solar disc SDO HMI 2014-03-05 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.75 | 95.77 | 11.11 | 51.32 | -21.53 | 96.66 | 17.89 | 228.57 | 0.3828 | 1129.0 | 415.1 | |
| 2.51 | -1.00 | 1.34 | -1.00 | -21.76 | 96.39 | 17.62 | 227.70 | 0.3817 | 865.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -21.61 | 96.07 | 17.30 | 227.51 | 0.3765 | 832.0 | 649.1 | |
| 8.30 | 27.23 | 4.44 | 14.53 | -23.17 | 94.78 | 16.01 | 222.31 | 0.3784 | 906.5 | 740.6 | |
| 10.03 | 38.72 | 5.39 | 20.81 | -24.00 | 94.85 | 16.08 | 220.85 | 0.3885 | 889.3 | 287.5 | |
| 0.00 | 2.85 | 0.00 | 1.54 | -25.38 | 94.90 | 16.13 | 218.50 | 0.4048 | 344.0 | 601.4 | |
| 0.52 | 1.64 | 0.28 | 0.87 | -22.50 | 94.50 | 15.73 | 223.15 | 0.3678 | 923.8 | 823.8 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -23.46 | 94.51 | 15.74 | 221.30 | 0.3787 | 923.0 | 813.2 | |
| 3.37 | -4.00 | 1.79 | -4.00 | -22.82 | 94.17 | 15.40 | 221.94 | 0.3678 | 1088.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -25.83 | 94.55 | 15.78 | 217.17 | 0.4067 | 561.0 | 489.8 | |
| 0.95 | 95.60 | 0.51 | 51.15 | -23.31 | 94.13 | 15.36 | 220.91 | 0.3730 | 990.0 | 540.9 | |
| 0.69 | -11.00 | 0.37 | -11.00 | -23.65 | 94.13 | 15.36 | 220.28 | 0.3770 | 1077.9 | 999999 | |
| 20.66 | -11.00 | 11.06 | -11.00 | -24.06 | 94.15 | 15.38 | 219.56 | 0.3819 | 1052.7 | 999999 | |
| 0.86 | -11.00 | 0.46 | -11.00 | -24.46 | 94.13 | 15.36 | 218.80 | 0.3864 | 803.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -25.24 | 94.23 | 15.46 | 217.62 | 0.3967 | 862.0 | 741.7 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -22.25 | 93.61 | 14.83 | 222.07 | 0.3552 | 963.0 | 765.2 | |
| 0.00 | 2.25 | 0.00 | 1.21 | -25.04 | 93.76 | 14.99 | 217.16 | 0.3897 | 429.0 | 447.8 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -22.23 | 93.20 | 14.43 | 221.37 | 0.3506 | 821.0 | 665.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.49 | 93.25 | 14.48 | 217.20 | 0.3781 | 167.0 | 168.6 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -24.88 | 92.86 | 14.09 | 215.81 | 0.3791 | 863.0 | 703.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -25.31 | 92.84 | 14.07 | 215.05 | 0.3844 | -566.0 | -419.0 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -25.69 | 91.56 | 12.79 | 212.03 | 0.3779 | -763.0 | -590.7 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -25.14 | 91.24 | 12.47 | 212.25 | 0.3678 | 900.0 | 733.7 | |
| 0.00 | 3.98 | 0.00 | 2.12 | -25.30 | 90.88 | 12.11 | 211.28 | 0.3670 | 1111.0 | 927.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -26.53 | 90.70 | 11.93 | 209.09 | 0.3822 | -673.0 | -571.0 | |
| 7.09 | 11.50 | 3.77 | 6.11 | -25.44 | 90.33 | 11.55 | 209.92 | 0.3642 | 1010.0 | 670.8 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -26.57 | 90.34 | 11.56 | 208.30 | 0.3799 | -636.0 | -610.2 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -26.14 | 90.12 | 11.35 | 208.48 | 0.3722 | -688.0 | -573.9 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -25.92 | 89.97 | 11.20 | 208.47 | 0.3680 | -735.0 | -584.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -26.77 | 90.05 | 11.28 | 207.46 | 0.3804 | -581.0 | -497.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -28.04 | 90.04 | 11.27 | 205.80 | 0.3981 | -651.0 | -554.0 | |
| 0.00 | 6.05 | 0.00 | 3.23 | -26.68 | 89.74 | 10.97 | 206.93 | 0.3769 | -938.0 | -680.1 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -30.10 | 89.33 | 10.56 | 202.11 | 0.4228 | -574.0 | -492.5 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -29.69 | 89.28 | 10.51 | 202.46 | 0.4166 | -683.0 | -502.5 | |
| 1.73 | 5.88 | 0.93 | 3.15 | -27.75 | 88.58 | 9.81 | 203.20 | 0.3843 | -908.2 | -767.8 | |
| 0.00 | 2.68 | 0.00 | 1.42 | -25.95 | 88.42 | 9.65 | 205.09 | 0.3572 | 150.0 | 152.6 | |
| 1.38 | 4.67 | 0.73 | 2.47 | -25.64 | 88.10 | 9.33 | 204.76 | 0.3505 | -845.4 | -521.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -26.02 | 88.13 | 9.36 | 204.33 | 0.3561 | -682.0 | -429.4 | |
| 0.00 | 2.85 | 0.00 | 1.51 | -25.46 | 87.92 | 9.15 | 204.58 | 0.3465 | -956.0 | -777.9 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -28.14 | 88.07 | 9.30 | 201.70 | 0.3868 | -585.0 | -485.6 | |
| 14.35 | 334.77 | 7.66 | 177.39 | -27.54 | 87.74 | 8.97 | 201.67 | 0.3761 | -949.3 | -305.9 | |
| 1.38 | -41.00 | 0.74 | -41.00 | -26.78 | 87.68 | 8.91 | 202.40 | 0.3645 | -925.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -25.43 | 87.58 | 8.81 | 203.83 | 0.3439 | 807.0 | 654.4 | |
| 0.00 | 2.42 | 0.00 | 1.30 | -28.08 | 87.75 | 8.98 | 201.11 | 0.3842 | -800.0 | -714.6 | |
| 0.00 | 3.98 | 0.00 | 2.16 | -30.07 | 87.93 | 9.16 | 199.50 | 0.4144 | -453.0 | -574.2 | |
| 13.74 | -41.00 | 7.31 | -41.00 | -27.04 | 87.57 | 8.80 | 201.85 | 0.3676 | -676.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -28.28 | 87.57 | 8.79 | 200.51 | 0.3860 | -760.0 | -642.1 | |
| 0.69 | -41.00 | 0.37 | -41.00 | -26.79 | 87.41 | 8.64 | 201.79 | 0.3629 | -883.9 | 999999 | |
| 1.30 | -41.00 | 0.69 | -41.00 | -27.14 | 87.27 | 8.50 | 201.08 | 0.3673 | 661.5 | 999999 | |
| 3.46 | -41.00 | 1.84 | -41.00 | -27.55 | 87.20 | 8.43 | 200.48 | 0.3731 | 915.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -28.79 | 87.13 | 8.36 | 199.08 | 0.3913 | -838.0 | -705.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -25.10 | 86.66 | 7.89 | 202.02 | 0.3331 | -932.0 | -742.0 | |
| 3.63 | -41.00 | 1.93 | -41.00 | -27.34 | 86.68 | 7.91 | 199.54 | 0.3670 | -571.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.61 | 86.63 | 7.86 | 198.21 | 0.3860 | -798.0 | -666.5 | |
| 1.90 | -41.00 | 1.01 | -41.00 | -27.02 | 86.39 | 7.62 | 199.20 | 0.3607 | -672.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -25.02 | 86.13 | 7.36 | 200.77 | 0.3286 | 768.0 | 687.6 | |
| 0.00 | 4.32 | 0.00 | 2.31 | -28.20 | 86.33 | 7.56 | 197.93 | 0.3783 | -681.0 | -540.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -27.25 | 86.20 | 7.43 | 198.54 | 0.3631 | -178.0 | -199.7 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -27.76 | 86.13 | 7.36 | 197.90 | 0.3705 | -766.0 | -499.1 | |
| 0.43 | 1.56 | 0.23 | 0.83 | -28.52 | 86.15 | 7.38 | 197.25 | 0.3823 | -727.0 | -660.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -29.90 | 86.15 | 7.37 | 196.09 | 0.4033 | -783.0 | -659.9 | |
| 40.80 | -41.00 | 21.56 | -41.00 | -26.53 | 85.82 | 7.05 | 198.36 | 0.3501 | -1276.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -28.52 | 85.84 | 7.07 | 196.57 | 0.3809 | -666.0 | -557.6 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -30.03 | 85.91 | 7.14 | 195.51 | 0.4043 | -724.0 | -656.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -25.25 | 85.11 | 6.34 | 197.89 | 0.3267 | -740.0 | -555.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -28.35 | 84.68 | 5.91 | 194.10 | 0.3732 | -607.0 | -392.1 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -26.17 | 84.33 | 5.56 | 195.00 | 0.3375 | -915.0 | -710.9 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -26.74 | 84.16 | 5.39 | 194.09 | 0.3458 | -971.0 | -846.6 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -27.24 | 83.98 | 5.21 | 193.27 | 0.3531 | -954.0 | -770.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.11 | 83.39 | 4.62 | 193.37 | 0.3169 | -894.0 | -781.0 | |
| 0.00 | 3.72 | 0.00 | 1.94 | -24.96 | 83.19 | 4.42 | 192.93 | 0.3136 | -874.0 | -744.1 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.18 | 82.87 | 4.10 | 191.86 | 0.3160 | -925.0 | -760.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
