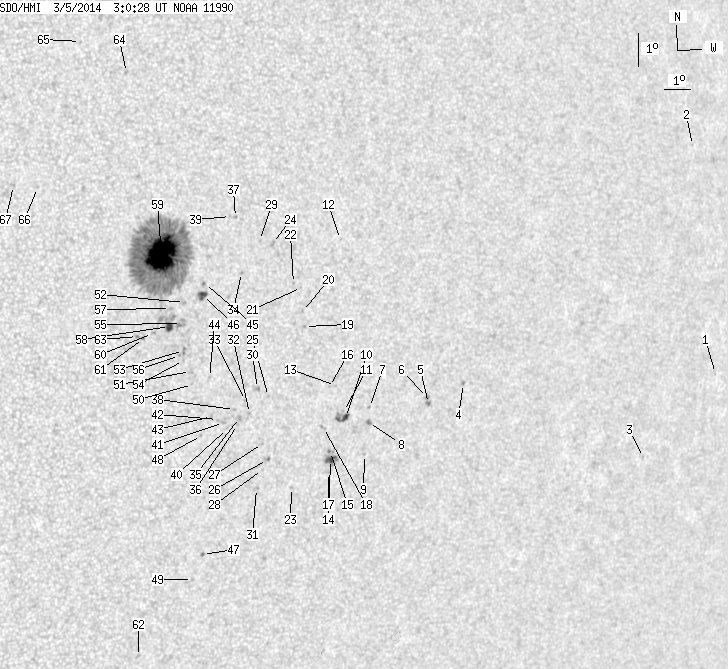

SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.34 | 501.51 | 43.47 | 286.36 | -13.07 | 107.84 | 29.62 | 256.43 | 0.4973 | 136.2 | 232.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.47 | -14.07 | 129.42 | 51.20 | 257.74 | 0.7759 | 439.0 | 368.1 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -7.45 | 126.85 | 48.62 | 266.47 | 0.7478 | 515.0 | 429.7 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -16.87 | 126.87 | 48.65 | 253.86 | 0.7502 | 527.0 | 479.8 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -15.32 | 118.59 | 40.36 | 254.84 | 0.6495 | 730.0 | 589.3 | |
| 0.00 | 2.42 | 0.00 | 1.55 | -16.03 | 117.34 | 39.12 | 253.50 | 0.6348 | 736.0 | 644.0 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -15.85 | 117.26 | 39.04 | 253.76 | 0.6334 | 788.0 | 732.0 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -16.32 | 115.08 | 36.86 | 252.49 | 0.6059 | -530.0 | -423.3 | |
| 0.00 | 2.42 | 0.00 | 1.51 | -16.77 | 115.14 | 36.92 | 251.77 | 0.6078 | 921.0 | 777.9 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -17.74 | 115.21 | 36.99 | 250.22 | 0.6113 | 607.0 | 521.6 | |
| 2.77 | 9.68 | 1.70 | 5.95 | -16.68 | 114.24 | 36.01 | 251.65 | 0.5956 | -625.2 | -664.9 | |
| 0.00 | 1.47 | 0.00 | 0.90 | -16.51 | 114.12 | 35.90 | 251.91 | 0.5937 | -566.0 | -444.9 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -11.40 | 113.11 | 34.89 | 260.44 | 0.5708 | 601.0 | 499.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -15.75 | 113.66 | 35.44 | 253.04 | 0.5856 | -447.0 | -410.4 | |
| 4.15 | 8.30 | 2.55 | 5.11 | -17.98 | 113.95 | 35.73 | 249.41 | 0.5955 | -800.2 | -573.8 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -17.74 | 113.89 | 35.67 | 249.79 | 0.5941 | -800.0 | -696.6 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -15.80 | 113.44 | 35.22 | 252.90 | 0.5828 | -607.0 | -558.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -18.37 | 113.97 | 35.74 | 248.77 | 0.5970 | -461.0 | -443.5 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -17.04 | 113.47 | 35.25 | 250.82 | 0.5864 | -760.0 | -645.0 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -14.07 | 112.19 | 33.97 | 255.56 | 0.5618 | -592.0 | -489.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -13.63 | 112.04 | 33.82 | 256.31 | 0.5589 | -632.0 | -533.7 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -12.92 | 111.89 | 33.67 | 257.55 | 0.5556 | -577.0 | -489.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -12.82 | 111.59 | 33.36 | 257.67 | 0.5510 | -554.0 | -517.8 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -18.92 | 112.67 | 34.45 | 247.37 | 0.5820 | -593.0 | -431.7 | |
| 0.00 | 2.51 | 0.00 | 1.47 | -11.68 | 110.66 | 32.44 | 259.60 | 0.5362 | 671.0 | 540.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.25 | 111.24 | 33.02 | 251.42 | 0.5541 | -457.0 | -383.0 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -18.14 | 111.59 | 33.37 | 248.25 | 0.5649 | -677.0 | -606.1 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -17.67 | 111.30 | 33.08 | 248.94 | 0.5594 | -526.0 | -505.8 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -18.45 | 111.47 | 33.25 | 247.66 | 0.5644 | -441.0 | -523.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -11.62 | 110.19 | 31.97 | 259.64 | 0.5293 | 626.0 | 631.3 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -16.03 | 110.80 | 32.58 | 251.65 | 0.5474 | -701.0 | -580.3 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -19.04 | 111.37 | 33.15 | 246.61 | 0.5654 | -555.0 | -536.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -16.80 | 110.65 | 32.42 | 250.22 | 0.5477 | -700.0 | -624.4 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.42 | 110.43 | 32.21 | 250.81 | 0.5434 | -659.0 | -491.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -12.61 | 109.68 | 31.45 | 257.66 | 0.5233 | -55.0 | -140.3 | |
| 0.00 | 2.77 | 0.00 | 1.63 | -16.95 | 110.31 | 32.08 | 249.82 | 0.5435 | -750.0 | -622.0 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -17.16 | 110.27 | 32.05 | 249.42 | 0.5437 | -350.0 | -382.0 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -10.99 | 109.26 | 31.04 | 260.70 | 0.5149 | 630.0 | 508.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -16.72 | 110.08 | 31.86 | 250.14 | 0.5396 | -734.0 | -582.8 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -10.97 | 109.08 | 30.86 | 260.71 | 0.5123 | 617.0 | 453.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -17.30 | 109.93 | 31.71 | 249.02 | 0.5396 | -582.0 | -493.1 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -17.13 | 109.76 | 31.53 | 249.26 | 0.5366 | -782.0 | -726.1 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -17.06 | 109.52 | 31.30 | 249.29 | 0.5331 | -636.0 | -559.9 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.98 | 109.29 | 31.07 | 249.33 | 0.5296 | -788.0 | -678.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -15.82 | 109.01 | 30.79 | 251.38 | 0.5218 | -567.0 | -395.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -13.02 | 108.41 | 30.19 | 256.56 | 0.5058 | -572.0 | -490.9 | |
| 3.72 | 6.57 | 2.13 | 3.77 | -13.38 | 108.39 | 30.17 | 255.84 | 0.5063 | -723.2 | -548.8 | |
| 0.00 | 1.47 | 0.00 | 0.87 | -21.17 | 109.84 | 31.61 | 242.19 | 0.5548 | -691.0 | -587.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -17.57 | 109.04 | 30.81 | 248.13 | 0.5283 | -712.0 | -622.5 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -21.95 | 109.65 | 31.43 | 240.75 | 0.5564 | -686.0 | -532.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -16.06 | 108.44 | 30.22 | 250.68 | 0.5146 | -676.0 | -551.0 | |
| 0.00 | 2.25 | 0.00 | 1.29 | -15.68 | 108.31 | 30.09 | 251.36 | 0.5114 | -542.0 | -431.0 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -13.63 | 107.79 | 29.57 | 255.17 | 0.4981 | -102.0 | -180.4 | |
| 0.00 | 2.59 | 0.00 | 1.49 | -15.06 | 107.96 | 29.74 | 252.41 | 0.5046 | -705.0 | -634.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.36 | 108.01 | 29.79 | 251.85 | 0.5062 | -507.0 | -447.4 | |
| 0.00 | 7.26 | 0.00 | 4.15 | -14.26 | 107.77 | 29.55 | 253.91 | 0.4995 | -341.0 | -220.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -15.22 | 107.85 | 29.62 | 252.05 | 0.5034 | -696.0 | -606.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -13.84 | 107.33 | 29.10 | 254.60 | 0.4919 | 81.0 | 5.5 | |
| 3.54 | 14.35 | 2.02 | 8.16 | -14.38 | 107.37 | 29.14 | 253.54 | 0.4939 | -786.5 | -160.7 | |
| 62.16 | 377.88 | 35.07 | 213.16 | -12.25 | 106.81 | 28.59 | 257.69 | 0.4806 | 1158.5 | 422.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -14.62 | 106.80 | 28.58 | 252.83 | 0.4865 | -536.0 | -406.0 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -14.79 | 106.51 | 28.29 | 252.37 | 0.4828 | -582.0 | -485.6 | |
| 0.00 | 1.56 | 0.00 | 0.92 | -24.43 | 108.25 | 30.02 | 235.70 | 0.5536 | -698.0 | -573.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -14.74 | 106.30 | 28.07 | 252.38 | 0.4795 | -691.0 | -648.3 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -6.91 | 105.15 | 26.93 | 269.04 | 0.4515 | -692.0 | -521.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -6.08 | 103.57 | 25.35 | 271.15 | 0.4276 | -595.0 | -561.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -10.48 | 102.43 | 24.21 | 260.54 | 0.4106 | -694.0 | -526.1 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -10.46 | 101.64 | 23.42 | 260.40 | 0.3981 | -721.0 | -627.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
