SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.67 | 700.21 | 85.25 | 373.45 | -25.42 | 89.96 | 11.73 | 210.02 | 0.3735 | -103.8 | -62.5 | |
|
previous
or next observation for the same group /

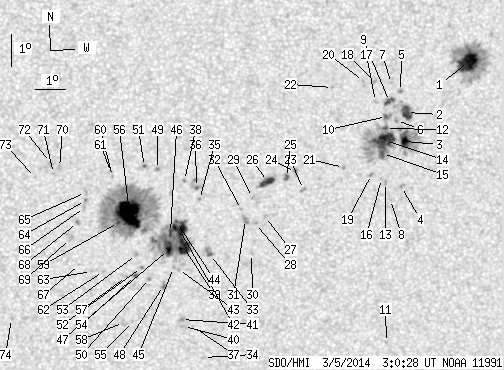

back to the solar disc SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.70 | 99.94 | 15.42 | 53.72 | -21.52 | 96.65 | 18.42 | 229.37 | 0.3891 | 1118.6 | 373.4 | |
| 8.47 | 19.19 | 4.54 | 10.28 | -23.16 | 94.77 | 16.55 | 223.21 | 0.3841 | 914.6 | 727.1 | |
| 6.66 | 37.61 | 3.59 | 20.27 | -24.05 | 94.82 | 16.59 | 221.60 | 0.3945 | 959.0 | 347.2 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -25.46 | 94.91 | 16.68 | 219.26 | 0.4113 | 822.0 | 651.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -22.51 | 94.49 | 16.26 | 224.01 | 0.3740 | 950.0 | 793.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -23.41 | 94.46 | 16.24 | 222.22 | 0.3836 | 940.0 | 826.2 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -22.28 | 94.16 | 15.94 | 223.94 | 0.3677 | 682.0 | 516.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -25.88 | 94.59 | 16.36 | 218.05 | 0.4130 | 631.0 | 518.3 | |
| 2.68 | 5.27 | 1.43 | 2.81 | -22.83 | 94.16 | 15.93 | 222.83 | 0.3738 | 1084.9 | 905.6 | |
| 0.78 | 80.23 | 0.42 | 43.04 | -23.30 | 94.11 | 15.89 | 221.85 | 0.3785 | 1055.7 | 585.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -30.42 | 95.17 | 16.95 | 212.27 | 0.4728 | -694.0 | -489.3 | |
| 1.30 | -10.00 | 0.69 | -10.00 | -23.67 | 94.12 | 15.90 | 221.16 | 0.3829 | 1030.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -25.35 | 94.34 | 16.12 | 218.54 | 0.4045 | 759.0 | 707.9 | |
| 20.66 | -10.00 | 11.09 | -10.00 | -24.05 | 94.14 | 15.91 | 220.50 | 0.3873 | 1047.9 | 999999 | |
| 2.42 | -10.00 | 1.30 | -10.00 | -24.45 | 94.12 | 15.90 | 219.74 | 0.3918 | 809.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -25.23 | 94.19 | 15.97 | 218.49 | 0.4015 | 761.0 | 638.7 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -22.85 | 93.69 | 15.47 | 222.00 | 0.3689 | 864.0 | 611.6 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -22.23 | 93.59 | 15.36 | 223.04 | 0.3609 | 968.0 | 797.3 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -25.12 | 93.83 | 15.61 | 218.09 | 0.3967 | 852.0 | 666.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -22.25 | 93.22 | 15.00 | 222.37 | 0.3570 | 860.0 | 697.8 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -24.93 | 92.86 | 14.63 | 216.72 | 0.3849 | 943.0 | 753.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -22.46 | 92.21 | 13.99 | 220.07 | 0.3487 | 801.0 | 653.5 | |
| 0.00 | 2.51 | 0.00 | 1.34 | -25.65 | 91.59 | 13.36 | 213.18 | 0.3823 | -764.0 | -617.3 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -25.13 | 91.26 | 13.03 | 213.39 | 0.3726 | 867.0 | 706.0 | |
| 1.12 | 3.03 | 0.60 | 1.61 | -25.29 | 90.97 | 12.75 | 212.57 | 0.3723 | 1047.8 | 839.1 | |
| 7.09 | 11.33 | 3.78 | 6.03 | -25.43 | 90.35 | 12.12 | 211.10 | 0.3688 | 987.1 | 645.7 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -26.53 | 90.39 | 12.17 | 209.56 | 0.3840 | -730.0 | -638.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -26.76 | 90.08 | 11.85 | 208.61 | 0.3846 | -618.0 | -449.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -25.94 | 89.89 | 11.67 | 209.40 | 0.3720 | -756.0 | -592.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -27.71 | 90.04 | 11.82 | 207.27 | 0.3975 | -740.0 | -581.3 | |
| 0.00 | 4.24 | 0.00 | 2.27 | -26.64 | 89.72 | 11.50 | 208.08 | 0.3803 | -960.0 | -744.4 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -26.33 | 89.56 | 11.33 | 208.17 | 0.3747 | -789.0 | -556.7 | |
| 0.78 | 6.05 | 0.42 | 3.25 | -27.77 | 88.64 | 10.42 | 204.43 | 0.3886 | -832.4 | -804.0 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -31.08 | 88.74 | 10.52 | 201.07 | 0.4367 | -555.0 | -362.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -26.04 | 88.12 | 9.89 | 205.49 | 0.3602 | -724.0 | -578.4 | |
| 0.35 | 6.92 | 0.18 | 3.66 | -25.67 | 87.98 | 9.76 | 205.70 | 0.3539 | -932.5 | -741.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -30.09 | 88.25 | 10.03 | 201.14 | 0.4195 | -574.0 | -407.9 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -25.46 | 87.57 | 9.34 | 205.04 | 0.3479 | 661.0 | 555.2 | |
| 13.92 | 346.59 | 7.45 | 183.85 | -27.54 | 87.70 | 9.48 | 202.76 | 0.3791 | -1006.6 | -327.1 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -30.09 | 87.94 | 9.71 | 200.54 | 0.4179 | -642.0 | -536.4 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -29.87 | 87.85 | 9.62 | 200.58 | 0.4141 | -907.0 | -761.6 | |
| 13.31 | -39.00 | 7.09 | -39.00 | -27.00 | 87.52 | 9.30 | 202.99 | 0.3702 | -709.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -28.27 | 87.60 | 9.37 | 201.72 | 0.3892 | -744.0 | -692.6 | |
| 0.78 | -39.00 | 0.41 | -39.00 | -26.75 | 87.40 | 9.18 | 203.02 | 0.3657 | -669.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -28.21 | 87.42 | 9.20 | 201.42 | 0.3873 | -770.0 | -637.4 | |
| 2.68 | -39.00 | 1.43 | -39.00 | -27.10 | 87.23 | 9.00 | 202.23 | 0.3698 | 610.6 | 999999 | |
| 3.37 | -39.00 | 1.80 | -39.00 | -27.64 | 87.20 | 8.98 | 201.57 | 0.3776 | 763.9 | 999999 | |
| 0.00 | 3.11 | 0.00 | 1.68 | -28.79 | 87.13 | 8.90 | 200.22 | 0.3942 | -763.0 | -665.3 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -25.13 | 86.64 | 8.42 | 203.28 | 0.3369 | -1006.0 | -854.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -28.57 | 86.63 | 8.41 | 199.39 | 0.3883 | -783.0 | -624.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -25.04 | 86.21 | 7.98 | 202.32 | 0.3328 | 735.0 | 588.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -28.23 | 86.33 | 8.11 | 199.09 | 0.3815 | -852.0 | -693.6 | |
| 0.00 | 2.33 | 0.00 | 1.25 | -27.82 | 86.13 | 7.90 | 199.05 | 0.3742 | -803.0 | -517.6 | |
| 0.69 | 1.73 | 0.37 | 0.93 | -28.49 | 86.14 | 7.92 | 198.45 | 0.3844 | -796.6 | -669.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -29.96 | 86.15 | 7.93 | 197.16 | 0.4068 | -718.0 | -620.2 | |
| 42.79 | -39.00 | 22.64 | -39.00 | -26.52 | 85.80 | 7.58 | 199.63 | 0.3529 | -1319.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.52 | 85.84 | 7.62 | 197.76 | 0.3835 | -852.0 | -651.3 | |
| 0.00 | 3.54 | 0.00 | 1.92 | -30.00 | 85.84 | 7.62 | 196.51 | 0.4059 | -675.0 | -558.8 | |
| 1.12 | -39.00 | 0.60 | -39.00 | -26.81 | 85.45 | 7.23 | 198.50 | 0.3554 | -755.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.37 | 85.17 | 6.94 | 199.31 | 0.3317 | -665.0 | -515.1 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -25.25 | 85.13 | 6.90 | 199.35 | 0.3296 | -773.0 | -435.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -28.37 | 85.04 | 6.82 | 196.14 | 0.3775 | -716.0 | -574.1 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -28.38 | 84.64 | 6.41 | 195.23 | 0.3758 | -738.0 | -493.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -26.13 | 84.31 | 6.09 | 196.37 | 0.3393 | -883.0 | -720.7 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -25.88 | 84.30 | 6.07 | 196.57 | 0.3353 | -570.0 | -612.8 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -26.35 | 84.29 | 6.07 | 196.11 | 0.3427 | -867.0 | -676.3 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -28.16 | 84.22 | 5.99 | 194.45 | 0.3706 | -725.0 | -548.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -26.83 | 84.08 | 5.86 | 195.18 | 0.3492 | -1075.0 | -830.5 | |
| 0.00 | 2.51 | 0.00 | 1.33 | -27.34 | 83.87 | 5.65 | 194.26 | 0.3563 | -498.0 | -572.9 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -25.11 | 83.40 | 5.18 | 194.91 | 0.3191 | -716.0 | -697.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.30 | 83.21 | 4.99 | 194.23 | 0.3213 | -688.0 | -534.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -24.96 | 83.10 | 4.88 | 194.21 | 0.3154 | -914.0 | -800.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.43 | 82.62 | 4.40 | 192.51 | 0.3212 | -755.0 | -562.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -29.91 | 81.98 | 3.75 | 188.38 | 0.3912 | -780.0 | -644.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
