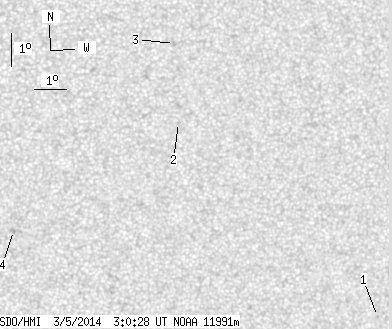

SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.96 | 0.00 | 3.06 | -14.76 | 90.40 | 12.18 | 236.15 | 0.2510 | -374.2 | -438.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | -19.01 | 98.11 | 19.89 | 236.76 | 0.3862 | 630.0 | 495.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -13.39 | 91.20 | 12.97 | 243.27 | 0.2457 | -637.0 | -518.5 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -11.04 | 90.96 | 12.74 | 252.31 | 0.2282 | -708.0 | -555.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -16.74 | 86.19 | 7.97 | 218.66 | 0.2134 | -782.0 | -724.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
