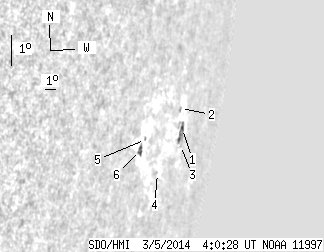

SDO HMI 2014-03-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 17.82 | 3.27 | 40.22 | -11.99 | 156.24 | 78.56 | 259.27 | 0.9762 | 15.6 | 0.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 9.08 | 3.27 | 22.73 | -11.61 | 157.55 | 79.87 | 259.55 | 0.9814 | 43.0 | 108.5 | |
| 0.00 | 1.04 | 0.00 | 2.45 | -11.11 | 156.66 | 78.99 | 260.14 | 0.9786 | 280.0 | 225.8 | |
| 0.00 | 1.30 | 0.00 | 3.33 | -12.10 | 157.78 | 80.11 | 259.03 | 0.9821 | -188.0 | -119.9 | |
| 0.00 | 0.78 | 0.00 | 1.64 | -13.26 | 155.39 | 77.71 | 258.05 | 0.9732 | 198.0 | 171.4 | |
| 0.00 | 0.86 | 0.00 | 1.57 | -12.50 | 153.05 | 75.37 | 259.00 | 0.9636 | 118.0 | -28.8 | |
| 0.00 | 4.76 | 0.00 | 8.50 | -12.87 | 152.76 | 75.09 | 258.64 | 0.9621 | -420.0 | -293.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
