SDO HMI 2014-03-05 05:00:28 UT

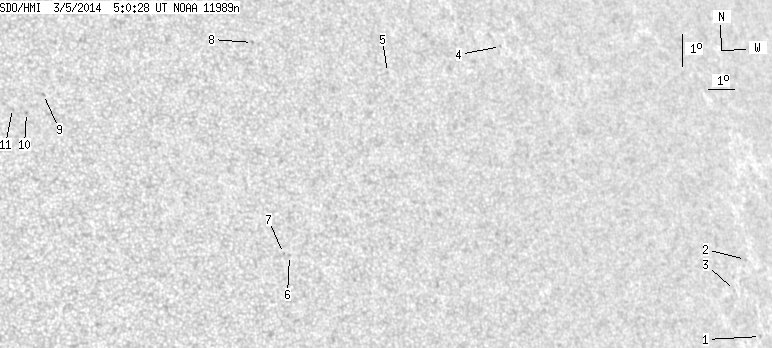

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.23 | 0.00 | 7.45 | 9.17 | 114.04 | 36.91 | 295.02 | 0.6453 | 75.8 | 57.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.73 | 5.14 | 130.10 | 52.97 | 281.70 | 0.8142 | -566.0 | -518.7 | |
| 0.00 | 0.61 | 0.00 | 0.52 | 7.44 | 129.70 | 52.57 | 284.57 | 0.8158 | -517.0 | -462.7 | |
| 0.00 | 0.69 | 0.00 | 0.58 | 6.43 | 128.99 | 51.87 | 283.56 | 0.8063 | -488.0 | -415.0 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 13.10 | 119.78 | 42.65 | 295.54 | 0.7337 | -518.0 | -487.0 | |
| 0.00 | 1.38 | 0.00 | 0.93 | 11.89 | 115.02 | 37.89 | 296.67 | 0.6749 | -711.0 | -543.9 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 5.91 | 110.68 | 33.55 | 290.61 | 0.5896 | 613.0 | 523.6 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 5.95 | 110.47 | 33.34 | 290.82 | 0.5871 | 586.0 | 568.4 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 12.45 | 110.06 | 32.93 | 300.88 | 0.6207 | 482.0 | 445.7 | |
| 0.00 | 1.56 | 0.00 | 0.90 | 10.35 | 102.54 | 25.41 | 304.54 | 0.5144 | 761.0 | 598.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 9.76 | 101.92 | 24.79 | 304.23 | 0.5018 | 714.0 | 561.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 9.86 | 101.46 | 24.33 | 304.90 | 0.4970 | 478.0 | 406.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
