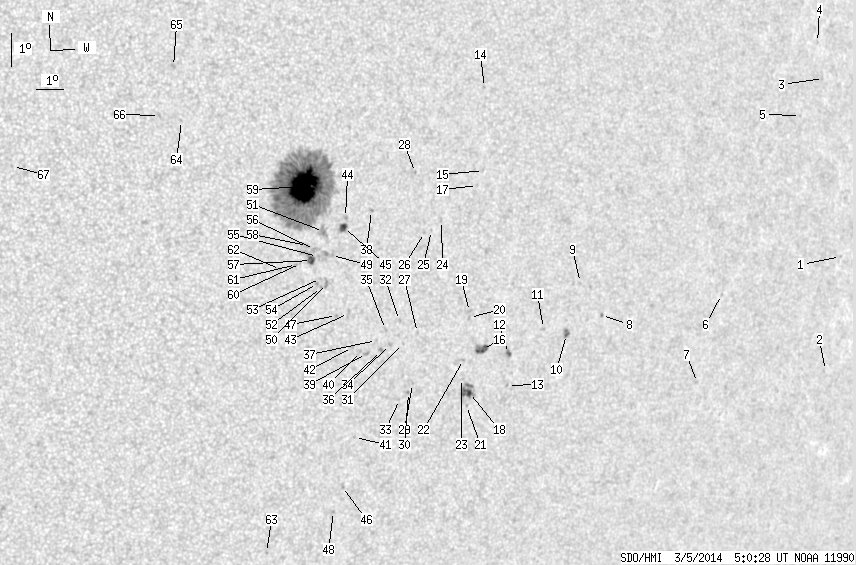

SDO HMI 2014-03-05 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.77 | 485.26 | 42.64 | 281.22 | -13.10 | 108.17 | 31.04 | 256.71 | 0.5177 | 174.0 | 250.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.61 | -12.62 | 128.60 | 51.47 | 259.61 | 0.7784 | 426.0 | 392.2 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -16.04 | 128.96 | 51.83 | 255.23 | 0.7837 | 287.0 | 226.3 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -7.45 | 126.68 | 49.56 | 266.41 | 0.7584 | 486.0 | 432.9 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -6.41 | 126.26 | 49.13 | 267.81 | 0.7544 | 447.0 | 446.7 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -8.64 | 125.82 | 48.69 | 264.87 | 0.7479 | 521.0 | 390.4 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -14.24 | 123.48 | 46.35 | 257.18 | 0.7216 | 446.0 | 425.3 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -16.94 | 123.19 | 46.06 | 253.41 | 0.7211 | 593.0 | 402.2 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -15.29 | 118.60 | 41.47 | 255.07 | 0.6635 | 453.0 | 495.6 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -14.38 | 117.53 | 40.41 | 256.29 | 0.6486 | 578.0 | 496.9 | |
| 1.04 | 4.06 | 0.67 | 2.64 | -15.97 | 117.33 | 40.20 | 253.81 | 0.6485 | 715.2 | 670.2 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -15.86 | 116.38 | 39.25 | 253.78 | 0.6361 | 591.0 | 542.7 | |
| 1.04 | 2.94 | 0.66 | 1.86 | -16.71 | 115.18 | 38.06 | 252.16 | 0.6225 | 826.8 | 703.8 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -17.67 | 115.38 | 38.25 | 250.70 | 0.6273 | 582.0 | 437.6 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -8.87 | 112.93 | 35.80 | 264.88 | 0.5826 | 639.0 | 441.2 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -11.34 | 113.21 | 36.08 | 260.67 | 0.5874 | 567.0 | 493.9 | |
| 4.93 | 9.60 | 3.07 | 5.98 | -16.66 | 114.15 | 37.02 | 251.96 | 0.6090 | -714.4 | -611.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -11.80 | 113.05 | 35.92 | 259.86 | 0.5857 | 542.0 | 382.9 | |
| 2.42 | 15.91 | 1.51 | 9.91 | -17.99 | 113.95 | 36.83 | 249.76 | 0.6099 | -812.2 | -665.5 | |
| 0.00 | 2.25 | 0.00 | 1.38 | -15.57 | 113.42 | 36.29 | 253.57 | 0.5966 | -715.0 | -527.0 | |
| 0.00 | 1.38 | 0.00 | 0.85 | -15.74 | 113.45 | 36.32 | 253.28 | 0.5975 | -783.0 | -639.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -18.39 | 113.94 | 36.81 | 249.11 | 0.6108 | -499.0 | -438.0 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -17.02 | 113.49 | 36.37 | 251.20 | 0.6012 | -683.0 | -586.9 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -17.59 | 113.55 | 36.42 | 250.27 | 0.6035 | -44.0 | -48.6 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -12.93 | 111.88 | 34.75 | 257.73 | 0.5708 | -552.0 | -471.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -13.25 | 111.56 | 34.43 | 257.10 | 0.5668 | -589.0 | -491.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -13.33 | 111.31 | 34.19 | 256.92 | 0.5635 | -593.0 | -507.5 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -16.33 | 111.59 | 34.46 | 251.76 | 0.5740 | -430.0 | -395.3 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -11.57 | 110.72 | 33.60 | 259.97 | 0.5527 | 700.0 | 600.2 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -17.87 | 111.73 | 34.60 | 249.18 | 0.5804 | -471.0 | -455.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -18.15 | 111.64 | 34.51 | 248.68 | 0.5801 | -662.0 | -565.4 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -16.69 | 111.14 | 34.01 | 250.98 | 0.5689 | -479.0 | -339.5 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -16.02 | 110.86 | 33.73 | 252.07 | 0.5631 | -753.0 | -546.6 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -18.38 | 111.35 | 34.22 | 248.17 | 0.5771 | -776.0 | -536.5 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -16.76 | 110.67 | 33.54 | 250.71 | 0.5627 | -760.0 | -637.0 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -16.32 | 110.39 | 33.27 | 251.38 | 0.5577 | -684.0 | -635.7 | |
| 0.00 | 2.08 | 0.00 | 1.24 | -16.96 | 110.37 | 33.24 | 250.25 | 0.5593 | -739.0 | -668.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -16.67 | 110.13 | 33.00 | 250.66 | 0.5551 | -705.0 | -608.8 | |
| 0.00 | 1.56 | 0.00 | 0.91 | -12.80 | 109.30 | 32.17 | 257.45 | 0.5340 | -605.0 | -465.9 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -17.08 | 109.84 | 32.71 | 249.82 | 0.5525 | -824.0 | -727.1 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -17.04 | 109.61 | 32.48 | 249.81 | 0.5492 | -754.0 | -628.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -19.64 | 109.93 | 32.81 | 245.41 | 0.5633 | -631.0 | -503.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -16.94 | 109.29 | 32.16 | 249.86 | 0.5445 | -566.0 | -410.9 | |
| 0.00 | 3.11 | 0.00 | 1.82 | -15.93 | 108.96 | 31.83 | 251.57 | 0.5367 | -677.0 | -497.5 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -13.07 | 108.40 | 31.27 | 256.73 | 0.5216 | -536.0 | -465.0 | |
| 3.29 | 4.84 | 1.91 | 2.81 | -13.37 | 108.37 | 31.24 | 256.15 | 0.5218 | -736.0 | -551.3 | |
| 0.00 | 1.99 | 0.00 | 1.20 | -21.15 | 109.84 | 32.71 | 242.81 | 0.5688 | -600.0 | -531.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -16.02 | 108.54 | 31.41 | 251.25 | 0.5311 | -685.0 | -560.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -21.94 | 109.70 | 32.57 | 241.43 | 0.5707 | -764.0 | -640.8 | |
| 0.00 | 2.16 | 0.00 | 1.25 | -14.23 | 108.07 | 30.94 | 254.42 | 0.5195 | 172.0 | 126.9 | |
| 0.00 | 3.20 | 0.00 | 1.85 | -15.08 | 108.02 | 30.89 | 252.80 | 0.5211 | -684.0 | -541.8 | |
| 0.00 | 8.56 | 0.00 | 4.93 | -13.54 | 107.68 | 30.55 | 255.65 | 0.5122 | -4.0 | 53.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -15.21 | 107.86 | 30.73 | 252.50 | 0.5192 | -783.0 | -608.0 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -14.95 | 107.79 | 30.66 | 252.97 | 0.5173 | -629.0 | -563.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -15.10 | 107.70 | 30.57 | 252.65 | 0.5166 | -877.0 | -743.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -14.30 | 107.58 | 30.45 | 254.15 | 0.5126 | -223.0 | -330.9 | |
| 0.00 | 2.59 | 0.00 | 1.49 | -14.09 | 107.44 | 30.31 | 254.50 | 0.5101 | -163.0 | -146.9 | |
| 3.11 | 6.83 | 1.79 | 3.93 | -14.43 | 107.38 | 30.26 | 253.83 | 0.5101 | -831.5 | -483.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -13.99 | 107.18 | 30.05 | 254.61 | 0.5060 | 741.0 | 498.4 | |
| 57.94 | 358.52 | 33.03 | 204.37 | -12.24 | 106.84 | 29.71 | 257.99 | 0.4972 | 1234.4 | 458.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -14.54 | 107.01 | 29.88 | 253.48 | 0.5051 | -466.0 | -388.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -14.58 | 106.87 | 29.75 | 253.35 | 0.5032 | -704.0 | -510.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -14.76 | 106.34 | 29.21 | 252.79 | 0.4960 | -704.0 | -627.3 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -23.35 | 107.52 | 30.39 | 237.75 | 0.5514 | -650.0 | -532.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -10.51 | 102.45 | 25.32 | 260.72 | 0.4279 | -663.0 | -539.8 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -8.92 | 102.06 | 24.93 | 264.42 | 0.4201 | -711.0 | -608.1 | |
| 0.00 | 1.56 | 0.00 | 0.85 | -10.40 | 101.70 | 24.58 | 260.82 | 0.4161 | -827.0 | -666.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.14 | 97.02 | 19.90 | 254.46 | 0.3468 | -746.0 | -594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
