SDO HMI 2014-03-05 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.65 | 0.00 | 4.50 | -14.75 | 92.98 | 15.85 | 242.99 | 0.3007 | -484.0 | -197.4 | |
|
previous
or next observation for the same group /

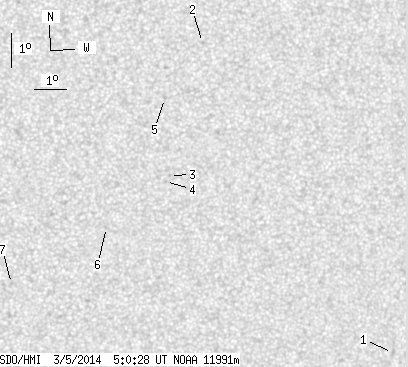

back to the solar disc SDO HMI 2014-03-05 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.68 | 0.00 | 1.45 | -18.47 | 98.90 | 21.77 | 240.01 | 0.4079 | 640.0 | 444.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.43 | 92.01 | 14.88 | 260.58 | 0.2580 | -620.0 | -449.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.42 | 91.18 | 14.05 | 244.81 | 0.2621 | -763.0 | -617.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -13.60 | 91.06 | 13.93 | 244.00 | 0.2616 | -715.0 | -588.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -11.13 | 90.90 | 13.77 | 253.07 | 0.2453 | -560.0 | -456.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -15.03 | 89.29 | 12.16 | 235.85 | 0.2469 | -677.0 | -413.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -16.78 | 86.39 | 9.26 | 222.70 | 0.2282 | -693.0 | -500.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
