SDO HMI 2014-03-05 06:37:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.23 | 611.02 | 72.21 | 328.21 | -25.42 | 89.96 | 13.71 | 213.74 | 0.3903 | -55.5 | -75.7 | |
|
previous
or next observation for the same group /

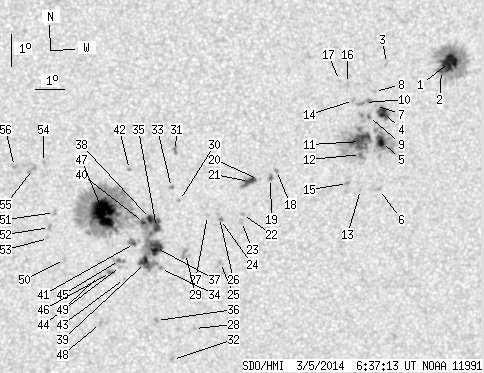

back to the solar disc SDO HMI 2014-03-05 06:37:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.77 | 90.03 | 10.21 | 49.00 | -21.52 | 96.78 | 20.53 | 232.12 | 0.4152 | 1230.4 | 452.4 | |
| 1.56 | -1.00 | 0.85 | -1.00 | -21.77 | 96.54 | 20.30 | 231.31 | 0.4145 | 938.1 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -21.63 | 94.66 | 18.41 | 229.10 | 0.3901 | 844.0 | 480.1 | |
| 8.13 | 10.64 | 4.40 | 5.76 | -23.17 | 94.77 | 18.52 | 226.17 | 0.4065 | 971.1 | 740.6 | |
| 4.67 | 35.80 | 2.54 | 19.50 | -24.07 | 94.83 | 18.58 | 224.57 | 0.4164 | 1055.5 | 396.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -25.53 | 94.99 | 18.74 | 222.20 | 0.4334 | 859.0 | 670.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -22.93 | 94.46 | 18.21 | 226.19 | 0.4006 | 834.0 | 768.5 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -22.50 | 94.37 | 18.12 | 226.90 | 0.3952 | 923.0 | 740.8 | |
| 0.52 | 7.09 | 0.28 | 3.83 | -23.28 | 94.27 | 18.02 | 225.24 | 0.4020 | 1032.5 | 901.8 | |
| 0.00 | 5.79 | 0.00 | 3.12 | -22.85 | 94.08 | 17.83 | 225.78 | 0.3954 | 996.0 | 926.1 | |
| 19.72 | 67.63 | 10.69 | 36.65 | -24.06 | 94.11 | 17.86 | 223.53 | 0.4084 | 1096.1 | 590.8 | |
| 0.61 | -11.00 | 0.33 | -11.00 | -24.47 | 94.17 | 17.92 | 222.88 | 0.4133 | 830.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -25.56 | 94.33 | 18.08 | 221.21 | 0.4268 | 835.0 | 706.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -22.80 | 93.70 | 17.45 | 225.31 | 0.3906 | 992.0 | 726.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -25.39 | 93.86 | 17.61 | 220.80 | 0.4200 | 978.0 | 815.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -22.29 | 93.43 | 17.18 | 225.92 | 0.3821 | 919.0 | 728.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -22.21 | 93.15 | 16.90 | 225.65 | 0.3780 | 863.0 | 561.8 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -25.06 | 91.38 | 15.13 | 217.35 | 0.3914 | 1035.0 | 807.9 | |
| 0.78 | 2.51 | 0.42 | 1.35 | -25.31 | 91.20 | 14.96 | 216.62 | 0.3928 | 1014.1 | 801.7 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -25.36 | 90.80 | 14.55 | 215.84 | 0.3895 | 499.0 | 586.4 | |
| 5.19 | 8.82 | 2.79 | 4.74 | -25.43 | 90.50 | 14.26 | 215.18 | 0.3877 | 1091.6 | 775.5 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -26.47 | 90.39 | 14.14 | 213.33 | 0.3998 | -828.0 | -654.5 | |
| 0.00 | 2.77 | 0.00 | 1.50 | -26.69 | 90.39 | 14.14 | 212.99 | 0.4026 | -507.0 | -458.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -26.65 | 89.66 | 13.41 | 211.74 | 0.3958 | -937.0 | -803.9 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -28.01 | 89.83 | 13.58 | 210.11 | 0.4150 | -855.0 | -622.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -26.59 | 89.62 | 13.37 | 211.75 | 0.3947 | -655.0 | -427.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -26.53 | 89.20 | 12.96 | 211.06 | 0.3905 | -832.0 | -721.3 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -30.14 | 89.20 | 12.95 | 206.32 | 0.4389 | -587.0 | -452.3 | |
| 0.00 | 6.92 | 0.00 | 3.74 | -27.75 | 88.59 | 12.34 | 208.20 | 0.4020 | -861.0 | -726.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -26.08 | 88.20 | 11.96 | 209.77 | 0.3764 | -685.0 | -480.4 | |
| 0.00 | 2.77 | 0.00 | 1.46 | -24.53 | 87.92 | 11.67 | 211.58 | 0.3529 | -818.0 | -615.7 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -31.17 | 88.55 | 12.30 | 204.09 | 0.4486 | -764.0 | -619.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -25.68 | 87.89 | 11.65 | 209.73 | 0.3684 | -964.0 | -848.4 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -28.25 | 87.78 | 11.54 | 206.04 | 0.4030 | -828.0 | -803.8 | |
| 4.32 | 299.33 | 2.32 | 159.51 | -26.95 | 87.51 | 11.26 | 207.16 | 0.3830 | -983.6 | -427.5 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -29.92 | 87.83 | 11.58 | 204.18 | 0.4267 | -948.0 | -789.2 | |
| 12.97 | -35.00 | 6.98 | -35.00 | -27.59 | 87.54 | 11.29 | 206.40 | 0.3921 | -1054.3 | 999999 | |
| 3.72 | -35.00 | 1.99 | -35.00 | -26.67 | 87.28 | 11.03 | 207.07 | 0.3774 | 500.8 | 999999 | |
| 8.48 | -35.00 | 4.57 | -35.00 | -28.07 | 87.25 | 11.00 | 205.22 | 0.3968 | 600.4 | 999999 | |
| 2.16 | -35.00 | 1.16 | -35.00 | -26.80 | 87.06 | 10.81 | 206.43 | 0.3776 | 969.4 | 999999 | |
| 1.12 | 6.49 | 0.60 | 3.48 | -27.47 | 86.81 | 10.57 | 205.08 | 0.3854 | -839.4 | -522.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -25.15 | 86.44 | 10.19 | 207.38 | 0.3497 | 837.0 | 686.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -28.59 | 86.58 | 10.33 | 203.29 | 0.3999 | -620.0 | -439.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -28.21 | 86.41 | 10.16 | 203.38 | 0.3934 | -578.0 | -504.9 | |
| 0.78 | 6.40 | 0.42 | 3.44 | -28.02 | 86.35 | 10.11 | 203.49 | 0.3903 | -903.7 | -736.3 | |
| 0.95 | 2.94 | 0.51 | 1.58 | -28.41 | 86.08 | 9.83 | 202.50 | 0.3942 | -791.1 | -687.1 | |
| 39.78 | -35.00 | 21.15 | -35.00 | -26.52 | 85.68 | 9.43 | 203.86 | 0.3640 | -1421.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -30.05 | 85.89 | 9.64 | 200.44 | 0.4170 | -786.0 | -664.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -28.51 | 85.71 | 9.46 | 201.64 | 0.3935 | -413.0 | -457.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -28.02 | 84.48 | 8.23 | 199.55 | 0.3792 | -823.0 | -667.5 | |
| 0.00 | 2.77 | 0.00 | 1.47 | -26.54 | 84.03 | 7.78 | 200.08 | 0.3544 | -879.0 | -722.9 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -27.02 | 83.90 | 7.65 | 199.27 | 0.3609 | -1047.0 | -813.3 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -27.37 | 83.89 | 7.64 | 198.89 | 0.3662 | -854.0 | -736.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -24.98 | 83.57 | 7.32 | 200.71 | 0.3280 | -770.0 | -646.6 | |
| 0.00 | 5.10 | 0.00 | 2.68 | -25.20 | 83.22 | 6.97 | 199.55 | 0.3295 | -949.0 | -766.2 | |
| 0.00 | 2.51 | 0.00 | 1.31 | -25.12 | 82.62 | 6.37 | 198.09 | 0.3249 | -873.0 | -780.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
