SDO HMI 2014-03-05 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.86 | 0.00 | 7.11 | 10.61 | 117.39 | 42.13 | 293.96 | 0.7105 | -34.0 | -140.6 | |
|
previous
or next observation for the same group /

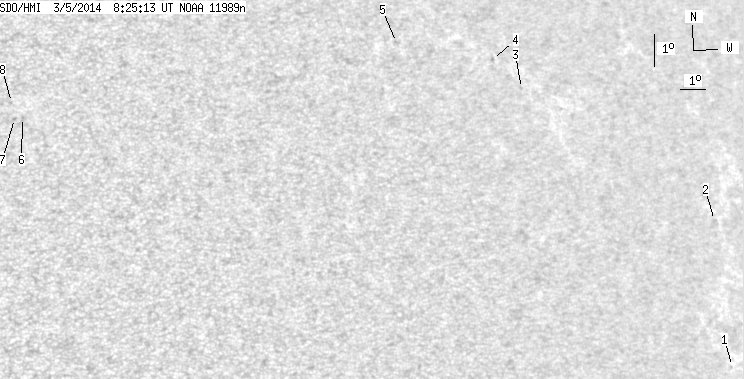

back to the solar disc SDO HMI 2014-03-05 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.53 | 4.58 | 129.42 | 54.15 | 280.72 | 0.8245 | -393.0 | -409.9 | |
| 0.00 | 1.99 | 0.00 | 1.77 | 9.02 | 129.24 | 53.97 | 285.99 | 0.8330 | -168.0 | -245.3 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 12.30 | 120.87 | 45.61 | 293.08 | 0.7612 | -511.0 | -476.3 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 13.11 | 119.80 | 44.54 | 294.59 | 0.7535 | -538.0 | -443.2 | |
| 0.00 | 2.08 | 0.00 | 1.46 | 13.30 | 115.85 | 40.58 | 296.91 | 0.7123 | -563.0 | -406.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 9.94 | 101.69 | 26.43 | 302.79 | 0.5236 | 594.0 | 444.9 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 9.89 | 101.42 | 26.16 | 302.99 | 0.5198 | 687.0 | 540.6 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 10.39 | 101.36 | 26.10 | 303.85 | 0.5231 | 620.0 | 514.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
