SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.59 | 620.99 | 70.68 | 335.36 | -25.37 | 89.96 | 15.02 | 216.10 | 0.4016 | 4.5 | -61.6 | |
|
previous
or next observation for the same group /

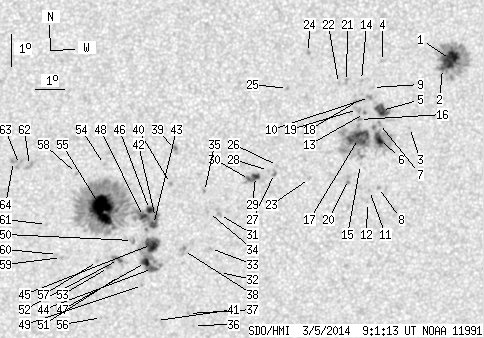

back to the solar disc SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.68 | 90.38 | 10.25 | 49.63 | -21.50 | 96.84 | 21.90 | 233.72 | 0.4324 | 1222.0 | 429.8 | |
| 1.38 | -1.00 | 0.76 | -1.00 | -21.79 | 96.61 | 21.67 | 232.89 | 0.4318 | 925.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -23.65 | 95.77 | 20.83 | 228.32 | 0.4380 | -685.0 | -444.7 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -21.66 | 94.54 | 19.60 | 230.63 | 0.4050 | 740.0 | 574.7 | |
| 8.56 | 13.84 | 4.67 | 7.55 | -23.17 | 94.72 | 19.79 | 227.90 | 0.4212 | 950.6 | 646.9 | |
| 7.35 | 33.82 | 4.03 | 18.56 | -24.07 | 94.79 | 19.86 | 226.31 | 0.4307 | 996.1 | 287.4 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -23.57 | 94.72 | 19.78 | 227.13 | 0.4250 | 678.0 | 566.7 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -25.56 | 95.01 | 20.07 | 223.95 | 0.4480 | 903.0 | 729.4 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -22.47 | 94.31 | 19.37 | 228.71 | 0.4098 | 815.0 | 684.6 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -22.78 | 94.25 | 19.32 | 228.02 | 0.4121 | 994.0 | 861.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -25.67 | 94.71 | 19.78 | 223.38 | 0.4459 | 811.0 | 669.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -26.05 | 94.71 | 19.77 | 222.73 | 0.4497 | 643.0 | 430.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -23.28 | 94.16 | 19.22 | 226.92 | 0.4158 | 1022.0 | 885.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -22.27 | 93.91 | 18.97 | 228.56 | 0.4030 | 937.0 | 778.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -24.87 | 94.26 | 19.33 | 224.16 | 0.4329 | 526.0 | 405.4 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -23.47 | 94.01 | 19.08 | 226.36 | 0.4160 | 1070.0 | 845.5 | |
| 20.24 | 66.25 | 11.05 | 36.17 | -24.06 | 94.07 | 19.13 | 225.34 | 0.4225 | 1096.3 | 580.2 | |
| 0.00 | 2.85 | 0.00 | 1.55 | -22.89 | 93.89 | 18.96 | 227.32 | 0.4089 | 970.0 | 860.5 | |
| 0.00 | 4.41 | 0.00 | 2.40 | -23.17 | 93.90 | 18.96 | 226.79 | 0.4117 | 935.0 | 810.2 | |
| 0.00 | 3.55 | 0.00 | 1.95 | -25.35 | 93.93 | 18.99 | 222.85 | 0.4342 | 850.0 | 827.8 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -22.32 | 93.41 | 18.47 | 227.76 | 0.3976 | 856.0 | 802.8 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -22.39 | 93.14 | 18.21 | 227.24 | 0.3952 | 823.0 | 660.6 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -25.37 | 92.58 | 17.64 | 220.87 | 0.4203 | -759.0 | -528.5 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -21.48 | 92.02 | 17.08 | 227.43 | 0.3727 | 910.0 | 774.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -22.60 | 91.45 | 16.51 | 224.21 | 0.3779 | 1060.0 | 888.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -25.00 | 91.42 | 16.49 | 219.71 | 0.4043 | 822.0 | 639.0 | |
| 0.00 | 3.03 | 0.00 | 1.64 | -25.25 | 91.35 | 16.42 | 219.16 | 0.4065 | 877.0 | 704.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -25.17 | 91.14 | 16.20 | 218.96 | 0.4033 | 875.0 | 727.0 | |
| 3.46 | 9.51 | 1.87 | 5.14 | -25.37 | 90.72 | 15.78 | 217.93 | 0.4015 | 1125.1 | 756.1 | |
| 1.12 | -29.00 | 0.61 | -29.00 | -25.47 | 90.53 | 15.59 | 217.44 | 0.4009 | 965.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -26.60 | 89.65 | 14.71 | 214.12 | 0.4065 | -938.0 | -767.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -28.43 | 89.90 | 14.96 | 211.87 | 0.4318 | -646.0 | -572.6 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -27.68 | 89.48 | 14.54 | 212.23 | 0.4188 | -763.0 | -509.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -26.54 | 89.26 | 14.33 | 213.53 | 0.4024 | -811.0 | -767.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -25.89 | 89.04 | 14.11 | 214.16 | 0.3922 | -789.0 | -657.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -30.16 | 89.23 | 14.30 | 208.53 | 0.4489 | -596.0 | -476.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -29.77 | 89.00 | 14.06 | 208.62 | 0.4421 | -797.0 | -669.8 | |
| 0.00 | 4.50 | 0.00 | 2.44 | -27.77 | 88.56 | 13.62 | 210.50 | 0.4123 | -862.0 | -745.7 | |
| 0.00 | 3.03 | 0.00 | 1.61 | -24.60 | 87.92 | 12.98 | 214.13 | 0.3656 | -941.0 | -827.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -25.67 | 87.86 | 12.93 | 212.30 | 0.3790 | -960.0 | -810.9 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -30.03 | 87.91 | 12.97 | 206.48 | 0.4376 | -923.0 | -609.0 | |
| 1.56 | 317.07 | 0.84 | 169.65 | -26.75 | 87.47 | 12.54 | 209.94 | 0.3901 | -770.6 | -391.4 | |
| 3.20 | -42.00 | 1.72 | -42.00 | -26.97 | 87.43 | 12.49 | 209.54 | 0.3927 | -946.7 | 999999 | |
| 3.03 | -42.00 | 1.64 | -42.00 | -28.37 | 87.56 | 12.62 | 207.90 | 0.4126 | -529.4 | 999999 | |
| 12.37 | -42.00 | 6.68 | -42.00 | -27.61 | 87.43 | 12.50 | 208.67 | 0.4013 | -1025.7 | 999999 | |
| 3.11 | -42.00 | 1.67 | -42.00 | -26.50 | 87.24 | 12.30 | 209.84 | 0.3849 | 943.1 | 999999 | |
| 4.76 | -42.00 | 2.58 | -42.00 | -28.18 | 87.29 | 12.36 | 207.66 | 0.4081 | 844.9 | 999999 | |
| 3.11 | -42.00 | 1.67 | -42.00 | -26.73 | 87.06 | 12.12 | 209.17 | 0.3865 | 998.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -28.92 | 87.28 | 12.34 | 206.70 | 0.4181 | -815.0 | -626.9 | |
| 0.00 | 3.72 | 0.00 | 2.00 | -27.49 | 86.77 | 11.83 | 207.56 | 0.3948 | -795.0 | -734.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -28.62 | 86.48 | 11.54 | 205.59 | 0.4083 | -618.0 | -582.4 | |
| 1.64 | 5.62 | 0.89 | 3.04 | -28.11 | 86.35 | 11.42 | 205.98 | 0.4004 | -950.0 | -816.8 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -28.37 | 86.04 | 11.10 | 205.05 | 0.4019 | -885.0 | -737.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -25.12 | 85.59 | 10.65 | 208.44 | 0.3530 | 771.0 | 516.6 | |
| 37.02 | -42.00 | 19.75 | -42.00 | -26.54 | 85.65 | 10.71 | 206.58 | 0.3733 | -1435.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -29.98 | 85.97 | 11.03 | 203.11 | 0.4242 | -753.0 | -642.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -28.19 | 85.64 | 10.70 | 204.49 | 0.3966 | -835.0 | -680.3 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -25.42 | 84.68 | 9.74 | 205.98 | 0.3505 | -846.0 | -631.2 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -28.08 | 84.40 | 9.46 | 202.09 | 0.3873 | -847.0 | -598.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -27.99 | 84.25 | 9.32 | 201.89 | 0.3850 | -655.0 | -447.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -27.05 | 83.80 | 8.86 | 201.97 | 0.3684 | -936.0 | -802.7 | |
| 0.00 | 4.07 | 0.00 | 2.14 | -25.20 | 83.10 | 8.16 | 202.54 | 0.3366 | -862.0 | -819.8 | |
| 0.00 | 3.72 | 0.00 | 1.95 | -25.18 | 82.76 | 7.83 | 201.75 | 0.3341 | -877.0 | -771.6 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -25.08 | 82.56 | 7.62 | 201.35 | 0.3315 | -879.0 | -848.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
