SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.20 | 69.02 | 34.59 | 127.01 | -10.19 | 359.62 | -75.32 | 98.61 | 0.9638 | 354.6 | 142.3 | |
|
previous
or next observation for the same group /

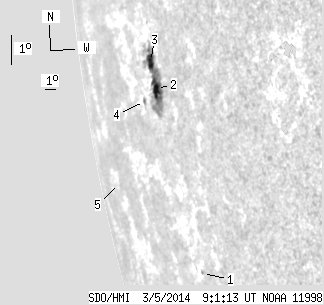

back to the solar disc SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.89 | -16.12 | 0.44 | -74.49 | 104.71 | 0.9584 | 121.0 | 84.7 | |
| 11.16 | 64.95 | 20.02 | 117.06 | -10.40 | 0.04 | -74.90 | 98.78 | 0.9621 | 452.0 | 167.4 | |
| 8.04 | -2.00 | 14.57 | -2.00 | -9.56 | 359.89 | -75.05 | 97.93 | 0.9631 | 295.7 | 999999 | |
| 0.00 | 2.08 | 0.00 | 4.11 | -10.59 | 358.39 | -76.55 | 99.12 | 0.9694 | 8.0 | -17.0 | |
| 0.00 | 1.47 | 0.00 | 4.95 | -12.31 | 352.03 | -82.90 | 101.44 | 0.9899 | -158.0 | -133.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
