SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.03 | 42.56 | 11.03 | 24.65 | -17.30 | 44.69 | -30.25 | 111.68 | 0.5195 | -41.2 | 49.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

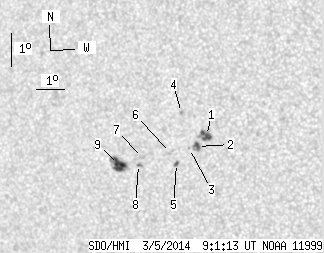

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.19 | 10.03 | 2.95 | 5.71 | -16.89 | 46.45 | -28.49 | 111.76 | 0.4935 | 955.4 | 615.0 | |
| 2.34 | 5.36 | 1.33 | 3.06 | -17.20 | 46.08 | -28.86 | 112.17 | 0.5000 | 873.3 | 667.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -17.25 | 45.78 | -29.15 | 112.10 | 0.5042 | 504.0 | 426.4 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -16.15 | 45.68 | -29.25 | 109.94 | 0.5013 | 800.0 | 672.9 | |
| 0.86 | 2.08 | 0.50 | 1.20 | -17.67 | 45.24 | -29.70 | 112.62 | 0.5135 | 732.5 | 579.1 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -17.32 | 45.09 | -29.85 | 111.90 | 0.5142 | -322.0 | -292.9 | |
| 0.00 | 2.08 | 0.00 | 1.21 | -17.41 | 44.06 | -30.88 | 111.57 | 0.5287 | -146.0 | -56.5 | |
| 0.35 | 1.82 | 0.20 | 1.06 | -17.61 | 43.87 | -31.06 | 111.85 | 0.5320 | -652.8 | -526.4 | |
| 10.29 | 16.69 | 6.05 | 9.82 | -17.57 | 43.15 | -31.79 | 111.44 | 0.5417 | -964.1 | -626.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
