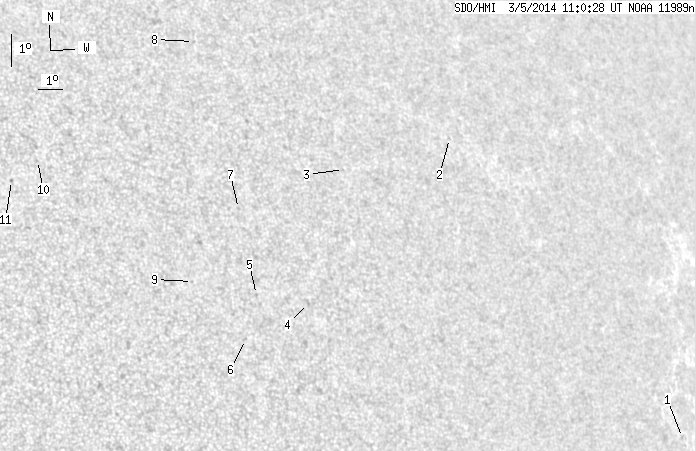

SDO HMI 2014-03-05 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.21 | 0.00 | 7.02 | 8.73 | 114.04 | 40.19 | 291.81 | 0.6835 | 264.2 | 196.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 1.25 | 4.79 | 129.40 | 55.55 | 280.61 | 0.8382 | -555.0 | -460.7 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 13.06 | 119.83 | 45.98 | 293.83 | 0.7681 | -511.0 | -384.6 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 11.66 | 115.06 | 41.21 | 294.44 | 0.7111 | -565.0 | -516.0 | |
| 0.00 | 1.30 | 0.00 | 0.86 | 7.34 | 113.05 | 39.20 | 289.64 | 0.6678 | 504.0 | 368.4 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 7.46 | 111.07 | 37.22 | 290.84 | 0.6441 | 546.0 | 447.8 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 6.04 | 110.53 | 36.68 | 289.04 | 0.6306 | 645.0 | 536.4 | |
| 0.00 | 1.30 | 0.00 | 0.85 | 10.09 | 110.70 | 36.85 | 294.81 | 0.6529 | 538.0 | 426.7 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 15.28 | 109.87 | 36.02 | 302.39 | 0.6741 | 404.0 | 371.2 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 7.68 | 108.71 | 34.86 | 292.54 | 0.6156 | 530.0 | 374.2 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 11.07 | 103.53 | 29.68 | 301.51 | 0.5723 | 646.0 | 566.3 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 10.39 | 102.56 | 28.71 | 301.33 | 0.5553 | 724.0 | 573.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
