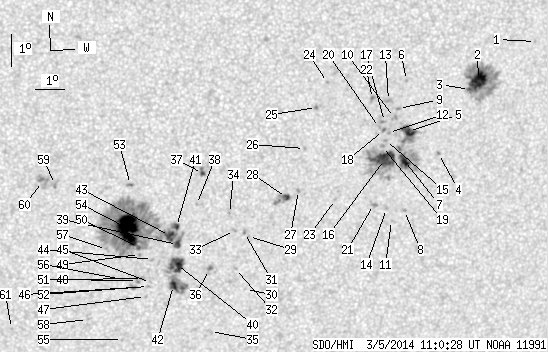

SDO HMI 2014-03-05 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.99 | 599.77 | 68.51 | 325.50 | -25.18 | 89.90 | 16.05 | 218.04 | 0.4093 | 8.2 | -52.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.43 | -20.22 | 98.66 | 24.81 | 239.11 | 0.4608 | 806.0 | 588.3 | |
| 19.46 | 87.43 | 10.76 | 48.40 | -21.50 | 96.89 | 23.04 | 234.92 | 0.4469 | 1160.8 | 374.6 | |
| 0.95 | -2.00 | 0.53 | -2.00 | -21.79 | 96.63 | 22.78 | 234.08 | 0.4458 | 903.6 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -23.81 | 95.89 | 22.05 | 229.46 | 0.4537 | -758.0 | -607.7 | |
| 8.30 | 58.28 | 4.56 | 32.14 | -23.18 | 94.74 | 20.89 | 229.28 | 0.4344 | 874.5 | 288.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -21.61 | 94.43 | 20.58 | 231.96 | 0.4167 | 767.0 | 623.0 | |
| 6.40 | -5.00 | 3.53 | -5.00 | -24.08 | 94.75 | 20.90 | 227.62 | 0.4428 | 975.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -25.63 | 95.03 | 21.18 | 225.22 | 0.4608 | 950.0 | 700.1 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.48 | 94.29 | 20.44 | 230.05 | 0.4227 | 908.0 | 717.1 | |
| 0.00 | 2.68 | 0.00 | 1.46 | -22.76 | 94.19 | 20.34 | 229.38 | 0.4241 | 933.0 | 828.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.96 | 94.63 | 20.78 | 224.16 | 0.4597 | 471.0 | 507.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -23.23 | 94.06 | 20.21 | 228.31 | 0.4269 | 985.0 | 893.9 | |
| 0.00 | 3.89 | 0.00 | 2.12 | -22.25 | 93.91 | 20.06 | 230.03 | 0.4160 | 1018.0 | 747.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -25.60 | 94.39 | 20.54 | 224.48 | 0.4534 | 993.0 | 699.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -23.49 | 93.99 | 20.15 | 227.76 | 0.4285 | 1045.0 | 869.8 | |
| 20.75 | 58.89 | 11.40 | 32.35 | -24.07 | 94.05 | 20.21 | 226.74 | 0.4348 | 1068.0 | 568.4 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.90 | 93.87 | 20.02 | 228.71 | 0.4215 | 1037.0 | 852.7 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -23.18 | 93.88 | 20.03 | 228.18 | 0.4242 | 1057.0 | 928.9 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -23.68 | 93.92 | 20.07 | 227.31 | 0.4295 | 980.0 | 882.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -23.09 | 93.73 | 19.88 | 228.15 | 0.4216 | 875.0 | 742.0 | |
| 0.00 | 3.11 | 0.00 | 1.72 | -25.49 | 93.91 | 20.06 | 224.05 | 0.4472 | 886.0 | 759.1 | |
| 0.00 | 2.94 | 0.00 | 1.59 | -22.21 | 93.36 | 19.51 | 229.39 | 0.4089 | 985.0 | 723.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -25.38 | 92.56 | 18.72 | 222.40 | 0.4317 | -734.0 | -601.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -21.78 | 91.77 | 17.92 | 228.07 | 0.3858 | 845.0 | 684.3 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -22.56 | 91.50 | 17.65 | 226.08 | 0.3905 | 1071.0 | 865.9 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -23.84 | 91.27 | 17.42 | 223.26 | 0.4012 | 887.0 | 721.8 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -25.15 | 91.25 | 17.40 | 220.88 | 0.4154 | 946.0 | 683.2 | |
| 2.25 | 10.81 | 1.22 | 5.87 | -25.38 | 90.87 | 17.02 | 219.89 | 0.4141 | 1106.5 | 757.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -26.65 | 89.74 | 15.89 | 216.02 | 0.4179 | -658.0 | -516.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -28.33 | 89.88 | 16.03 | 213.73 | 0.4397 | -751.0 | -644.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -26.52 | 89.58 | 15.73 | 215.95 | 0.4150 | -821.0 | -717.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -27.67 | 89.43 | 15.58 | 213.97 | 0.4277 | -785.0 | -636.8 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -26.47 | 89.23 | 15.38 | 215.45 | 0.4111 | -915.0 | -777.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -25.94 | 88.99 | 15.14 | 215.88 | 0.4024 | -755.0 | -625.8 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -29.71 | 88.86 | 15.01 | 210.24 | 0.4485 | -426.0 | -350.8 | |
| 0.00 | 3.20 | 0.00 | 1.75 | -27.73 | 88.54 | 14.69 | 212.40 | 0.4207 | -983.0 | -780.8 | |
| 1.04 | 3.46 | 0.55 | 1.85 | -24.72 | 87.92 | 14.07 | 216.01 | 0.3773 | -846.7 | -803.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -25.69 | 87.83 | 13.98 | 214.24 | 0.3887 | -829.0 | -666.6 | |
| 3.20 | 255.62 | 1.73 | 136.89 | -26.97 | 87.33 | 13.49 | 211.39 | 0.4008 | -897.6 | -376.7 | |
| 11.76 | 41.94 | 6.38 | 22.81 | -27.60 | 87.38 | 13.53 | 210.56 | 0.4095 | -980.3 | -338.8 | |
| 1.99 | -39.00 | 1.07 | -39.00 | -26.40 | 87.23 | 13.38 | 212.04 | 0.3925 | 1018.6 | 999999 | |
| 4.32 | -40.00 | 2.36 | -40.00 | -28.27 | 87.36 | 13.51 | 209.61 | 0.4181 | 897.2 | 999999 | |
| 5.88 | -39.00 | 3.17 | -39.00 | -26.69 | 87.03 | 13.18 | 211.23 | 0.3946 | 669.1 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -27.46 | 86.54 | 12.69 | 209.21 | 0.4009 | -840.0 | -686.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -28.20 | 86.55 | 12.70 | 208.27 | 0.4109 | -665.0 | -589.5 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -28.32 | 86.50 | 12.65 | 208.01 | 0.4123 | -767.0 | -563.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -28.65 | 86.43 | 12.58 | 207.48 | 0.4162 | -571.0 | -524.4 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -28.08 | 86.26 | 12.41 | 207.89 | 0.4071 | -865.0 | -740.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -27.32 | 86.07 | 12.22 | 208.54 | 0.3954 | -725.0 | -609.5 | |
| 0.86 | -39.00 | 0.47 | -39.00 | -27.10 | 86.01 | 12.16 | 208.73 | 0.3919 | -621.3 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -28.14 | 86.10 | 12.25 | 207.50 | 0.4069 | -947.0 | -778.2 | |
| 0.00 | 2.77 | 0.00 | 1.50 | -28.37 | 85.99 | 12.14 | 207.00 | 0.4091 | -798.0 | -675.7 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -25.12 | 85.54 | 11.69 | 210.66 | 0.3614 | 804.0 | 709.7 | |
| 38.83 | -39.00 | 20.78 | -39.00 | -26.51 | 85.58 | 11.73 | 208.69 | 0.3805 | -1381.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -30.04 | 85.80 | 11.95 | 204.69 | 0.4310 | -632.0 | -547.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -28.12 | 85.58 | 11.73 | 206.55 | 0.4028 | -751.0 | -583.1 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -27.18 | 84.93 | 11.08 | 206.48 | 0.3851 | -726.0 | -611.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -29.43 | 84.51 | 10.66 | 203.00 | 0.4141 | -555.0 | -445.6 | |
| 0.00 | 4.06 | 0.00 | 2.14 | -25.17 | 83.04 | 9.19 | 205.04 | 0.3430 | -953.0 | -774.6 | |
| 0.00 | 9.08 | 0.00 | 4.78 | -25.09 | 82.60 | 8.75 | 204.11 | 0.3388 | -761.0 | -779.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -29.76 | 81.90 | 8.05 | 197.57 | 0.4047 | -687.0 | -594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
