SDO HMI 2014-03-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.01 | 25.42 | 6.35 | 29.19 | 7.39 | 136.24 | 62.94 | 281.82 | 0.9033 | -21.5 | -27.5 | |
|
previous
or next observation for the same group /

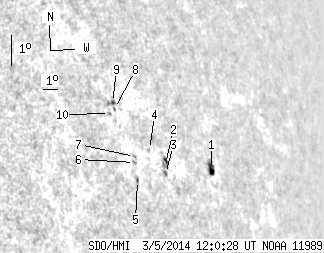

back to the solar disc SDO HMI 2014-03-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.58 | 7.95 | 5.90 | 10.24 | 7.29 | 139.29 | 65.99 | 281.04 | 0.9248 | -452.9 | -294.0 | |
| 0.00 | 4.84 | 0.00 | 5.50 | 7.10 | 136.02 | 62.72 | 281.53 | 0.9019 | -691.0 | -533.0 | |
| 0.00 | 1.99 | 0.00 | 2.25 | 6.79 | 135.94 | 62.64 | 281.20 | 0.9009 | -540.0 | -451.0 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 7.42 | 135.06 | 61.76 | 282.09 | 0.8953 | 316.0 | 221.8 | |
| 0.00 | 1.47 | 0.00 | 1.56 | 6.36 | 134.07 | 60.76 | 281.16 | 0.8859 | 233.0 | 220.2 | |
| 0.00 | 1.56 | 0.00 | 1.65 | 6.90 | 134.00 | 60.69 | 281.77 | 0.8862 | 555.0 | 423.6 | |
| 0.00 | 1.04 | 0.00 | 1.10 | 7.09 | 134.04 | 60.74 | 281.97 | 0.8869 | 460.0 | 389.3 | |
| 0.00 | 0.86 | 0.00 | 0.90 | 8.46 | 133.15 | 59.85 | 283.70 | 0.8823 | 552.0 | 496.3 | |
| 0.43 | 3.63 | 0.45 | 3.78 | 8.63 | 133.08 | 59.77 | 283.91 | 0.8820 | 672.2 | 580.4 | |
| 0.00 | 1.04 | 0.00 | 1.07 | 8.27 | 132.80 | 59.50 | 283.58 | 0.8792 | 482.0 | 456.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
