SDO HMI 2014-03-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.25 | 590.64 | 65.02 | 321.36 | -25.13 | 89.97 | 16.66 | 219.08 | 0.4147 | 22.4 | -34.8 | |
|
previous
or next observation for the same group /

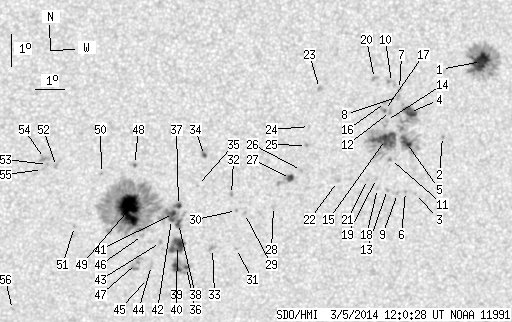

back to the solar disc SDO HMI 2014-03-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.24 | 84.91 | 10.13 | 47.18 | -21.51 | 96.93 | 23.63 | 235.50 | 0.4545 | 1153.9 | 423.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -23.88 | 95.99 | 22.69 | 230.07 | 0.4619 | -680.0 | -639.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.69 | 95.37 | 22.07 | 226.19 | 0.4712 | 602.0 | 537.0 | |
| 8.13 | 64.85 | 4.48 | 35.87 | -23.19 | 94.71 | 21.41 | 229.88 | 0.4407 | 863.3 | 302.5 | |
| 6.23 | -4.00 | 3.45 | -4.00 | -24.12 | 94.77 | 21.46 | 228.23 | 0.4497 | 956.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.64 | 95.01 | 21.71 | 225.84 | 0.4667 | 946.0 | 785.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -22.49 | 94.25 | 20.95 | 230.66 | 0.4290 | 799.0 | 731.8 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -22.71 | 94.25 | 20.95 | 230.24 | 0.4309 | 854.0 | 726.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -25.72 | 94.74 | 21.44 | 225.39 | 0.4645 | 809.0 | 703.2 | |
| 0.00 | 3.89 | 0.00 | 2.13 | -22.29 | 93.95 | 20.64 | 230.68 | 0.4235 | 615.0 | 722.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -24.67 | 94.30 | 21.00 | 226.68 | 0.4495 | 740.0 | 686.2 | |
| 0.00 | 2.16 | 0.00 | 1.19 | -23.18 | 94.05 | 20.75 | 229.09 | 0.4328 | 868.0 | 749.3 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -25.61 | 94.36 | 21.06 | 225.12 | 0.4593 | 780.0 | 699.8 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -23.47 | 93.96 | 20.66 | 228.44 | 0.4343 | 917.0 | 829.9 | |
| 19.37 | 58.71 | 10.68 | 32.34 | -24.05 | 94.02 | 20.72 | 227.43 | 0.4405 | 1072.8 | 597.3 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -22.91 | 93.84 | 20.53 | 229.34 | 0.4277 | 967.0 | 866.1 | |
| 0.35 | 2.59 | 0.19 | 1.42 | -23.16 | 93.84 | 20.54 | 228.87 | 0.4301 | 1039.0 | 838.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -25.59 | 94.01 | 20.71 | 224.71 | 0.4552 | 854.0 | 680.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.28 | 93.92 | 20.62 | 225.13 | 0.4512 | 852.0 | 702.3 | |
| 0.00 | 2.68 | 0.00 | 1.46 | -22.19 | 93.35 | 20.05 | 230.13 | 0.4153 | 911.0 | 762.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.32 | 93.61 | 20.31 | 224.66 | 0.4482 | 857.0 | 662.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -25.43 | 92.58 | 19.28 | 223.11 | 0.4381 | -674.0 | -521.4 | |
| 0.00 | 2.25 | 0.00 | 1.21 | -22.57 | 91.53 | 18.23 | 226.91 | 0.3972 | 1047.0 | 807.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -23.75 | 91.35 | 18.05 | 224.37 | 0.4073 | 869.0 | 614.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -24.34 | 91.34 | 18.03 | 223.25 | 0.4134 | 899.0 | 742.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -25.13 | 91.28 | 17.98 | 221.78 | 0.4212 | 881.0 | 779.2 | |
| 2.85 | 9.25 | 1.56 | 5.04 | -25.39 | 90.94 | 17.64 | 220.82 | 0.4206 | 1070.8 | 731.0 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -26.29 | 90.49 | 17.18 | 218.63 | 0.4261 | -717.0 | -511.0 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -26.54 | 89.52 | 16.22 | 216.71 | 0.4197 | -828.0 | -610.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -26.45 | 89.23 | 15.93 | 216.38 | 0.4160 | -945.0 | -827.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.65 | 89.40 | 16.10 | 214.82 | 0.4321 | -683.0 | -639.6 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -25.96 | 88.99 | 15.69 | 216.78 | 0.4077 | -785.0 | -643.8 | |
| 0.00 | 3.29 | 0.00 | 1.80 | -27.68 | 88.57 | 15.27 | 213.44 | 0.4251 | -1018.0 | -773.3 | |
| 0.95 | 3.63 | 0.51 | 1.94 | -24.77 | 87.92 | 14.61 | 216.92 | 0.3830 | -876.1 | -744.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -25.71 | 87.79 | 14.49 | 215.13 | 0.3935 | -758.0 | -548.1 | |
| 1.04 | 17.55 | 0.57 | 9.59 | -28.31 | 87.75 | 14.45 | 211.18 | 0.4262 | -942.2 | -105.5 | |
| 1.99 | 257.14 | 1.07 | 137.96 | -26.36 | 87.22 | 13.92 | 213.09 | 0.3966 | 983.4 | -375.8 | |
| 2.51 | -37.00 | 1.36 | -37.00 | -26.92 | 87.29 | 13.99 | 212.36 | 0.4045 | -879.9 | 999999 | |
| 12.10 | 17.38 | 6.58 | 9.45 | -27.62 | 87.35 | 14.05 | 211.45 | 0.4139 | -933.9 | -742.3 | |
| 4.67 | -36.00 | 2.55 | -36.00 | -28.32 | 87.41 | 14.10 | 210.58 | 0.4235 | 818.9 | 999999 | |
| 2.51 | -37.00 | 1.35 | -37.00 | -26.61 | 87.08 | 13.78 | 212.45 | 0.3987 | 898.9 | 999999 | |
| 1.56 | -37.00 | 0.84 | -37.00 | -26.80 | 87.04 | 13.74 | 212.08 | 0.4008 | 117.8 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -27.54 | 86.75 | 13.45 | 210.50 | 0.4080 | -947.0 | -804.8 | |
| 0.00 | 2.85 | 0.00 | 1.55 | -28.28 | 86.53 | 13.23 | 209.11 | 0.4161 | -715.0 | -582.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -28.70 | 86.45 | 13.14 | 208.41 | 0.4210 | -740.0 | -535.6 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -27.33 | 86.11 | 12.80 | 209.61 | 0.4002 | -675.0 | -561.8 | |
| 0.00 | 9.42 | 0.00 | 5.12 | -28.23 | 86.01 | 12.70 | 208.23 | 0.4114 | -807.0 | -679.8 | |
| 0.35 | 1.56 | 0.18 | 0.83 | -25.11 | 85.59 | 12.29 | 211.91 | 0.3662 | 806.8 | 686.8 | |
| 36.40 | -37.00 | 19.52 | -37.00 | -26.49 | 85.57 | 12.27 | 209.77 | 0.3846 | -1379.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -25.42 | 84.51 | 11.21 | 209.21 | 0.3615 | -847.0 | -643.6 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -27.10 | 83.76 | 10.46 | 205.31 | 0.3796 | -891.0 | -611.3 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -25.23 | 82.99 | 9.69 | 206.13 | 0.3474 | -912.0 | -789.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -25.17 | 82.69 | 9.39 | 205.50 | 0.3444 | -965.0 | -765.8 | |
| 0.00 | 5.01 | 0.00 | 2.64 | -24.99 | 82.57 | 9.27 | 205.49 | 0.3409 | -1003.0 | -829.5 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -25.33 | 82.53 | 9.23 | 204.93 | 0.3456 | -730.0 | -600.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -29.79 | 81.87 | 8.57 | 198.59 | 0.4076 | -726.0 | -586.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
