SDO HMI 2014-03-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.59 | 563.13 | 69.72 | 306.90 | -25.26 | 89.64 | 16.89 | 219.25 | 0.4181 | 21.4 | -31.1 | |
|
previous
or next observation for the same group /

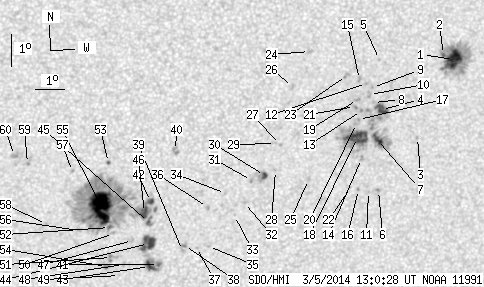

back to the solar disc SDO HMI 2014-03-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.92 | 74.18 | 11.67 | 41.39 | -21.52 | 96.94 | 24.19 | 236.01 | 0.4616 | 1111.1 | 426.7 | |
| 0.86 | -1.00 | 0.48 | -1.00 | -21.38 | 96.56 | 23.81 | 235.92 | 0.4558 | 1029.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -23.97 | 96.12 | 23.37 | 230.63 | 0.4708 | -764.0 | -594.0 | |
| 6.92 | 25.16 | 3.83 | 13.92 | -23.17 | 94.71 | 21.95 | 230.55 | 0.4470 | 851.0 | 512.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -21.63 | 94.39 | 21.63 | 233.15 | 0.4301 | 840.0 | 712.7 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -25.68 | 95.06 | 22.31 | 226.48 | 0.4738 | 947.0 | 735.4 | |
| 5.27 | 24.55 | 2.93 | 13.66 | -24.10 | 94.73 | 21.98 | 228.86 | 0.4555 | 964.2 | 316.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -22.96 | 94.39 | 21.64 | 230.57 | 0.4415 | 806.0 | 615.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.50 | 94.28 | 21.53 | 231.32 | 0.4362 | 856.0 | 732.0 | |
| 0.00 | 2.77 | 0.00 | 1.52 | -22.72 | 94.22 | 21.46 | 230.82 | 0.4372 | 672.0 | 727.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -25.73 | 94.72 | 21.96 | 226.00 | 0.4704 | 826.0 | 739.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -22.39 | 94.06 | 21.30 | 231.28 | 0.4324 | 950.0 | 731.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -23.23 | 94.02 | 21.27 | 229.64 | 0.4393 | 994.0 | 867.0 | |
| 0.00 | 2.42 | 0.00 | 1.35 | -24.71 | 94.28 | 21.53 | 227.24 | 0.4559 | 687.0 | 568.7 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -22.28 | 93.80 | 21.05 | 231.19 | 0.4283 | 1018.0 | 789.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -25.68 | 94.35 | 21.60 | 225.65 | 0.4659 | 917.0 | 772.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -23.51 | 93.96 | 21.21 | 229.04 | 0.4412 | 1044.0 | 876.8 | |
| 18.67 | 50.66 | 10.33 | 28.01 | -24.07 | 94.02 | 21.27 | 228.09 | 0.4470 | 1056.2 | 613.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -22.89 | 93.83 | 21.08 | 230.03 | 0.4341 | 987.0 | 866.4 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -23.63 | 93.92 | 21.16 | 228.75 | 0.4418 | 961.0 | 766.4 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -23.11 | 93.76 | 21.01 | 229.53 | 0.4352 | 990.0 | 858.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.63 | 94.06 | 21.31 | 225.38 | 0.4622 | 886.0 | 632.5 | |
| 0.00 | 2.68 | 0.00 | 1.46 | -22.17 | 93.34 | 20.58 | 230.84 | 0.4217 | 768.0 | 683.7 | |
| 0.00 | 2.77 | 0.00 | 1.49 | -21.49 | 91.98 | 19.22 | 230.49 | 0.3988 | 817.0 | 526.5 | |
| 0.00 | 2.16 | 0.00 | 1.19 | -25.44 | 92.55 | 19.79 | 223.78 | 0.4438 | -629.0 | -481.7 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -22.58 | 91.55 | 18.80 | 227.69 | 0.4041 | 912.0 | 736.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -24.39 | 91.40 | 18.65 | 224.07 | 0.4206 | 867.0 | 666.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -25.20 | 91.36 | 18.60 | 222.55 | 0.4286 | 869.0 | 712.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -24.36 | 91.23 | 18.48 | 223.86 | 0.4184 | 758.0 | 461.3 | |
| 2.42 | 8.73 | 1.32 | 4.78 | -25.37 | 91.00 | 18.25 | 221.75 | 0.4267 | 1047.1 | 661.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -25.54 | 90.58 | 17.83 | 220.83 | 0.4242 | 858.0 | 666.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -26.24 | 90.44 | 17.69 | 219.47 | 0.4306 | -722.0 | -594.2 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -26.66 | 90.16 | 17.41 | 218.37 | 0.4326 | -527.0 | -410.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -25.98 | 89.74 | 16.99 | 218.84 | 0.4207 | -656.0 | -390.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -27.67 | 89.41 | 16.66 | 215.66 | 0.4373 | -692.0 | -589.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -26.44 | 89.19 | 16.44 | 217.22 | 0.4207 | -836.0 | -706.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.72 | 89.00 | 16.24 | 214.95 | 0.4341 | -604.0 | -534.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -27.67 | 88.57 | 15.82 | 214.34 | 0.4297 | -980.0 | -866.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -27.83 | 88.52 | 15.77 | 214.03 | 0.4313 | -661.0 | -570.4 | |
| 0.00 | 3.37 | 0.00 | 1.81 | -24.69 | 87.86 | 15.11 | 217.92 | 0.3870 | -813.0 | -785.6 | |
| 0.69 | 18.07 | 0.38 | 9.90 | -28.30 | 87.75 | 15.00 | 212.11 | 0.4305 | -946.8 | -165.3 | |
| 2.42 | 266.97 | 1.31 | 143.53 | -26.31 | 87.21 | 14.46 | 214.11 | 0.4008 | 1024.1 | -342.2 | |
| 4.75 | -41.00 | 2.60 | -41.00 | -28.37 | 87.45 | 14.70 | 211.51 | 0.4289 | 757.7 | 999999 | |
| 12.36 | 16.77 | 6.74 | 9.14 | -27.64 | 87.31 | 14.56 | 212.31 | 0.4185 | -926.8 | -685.3 | |
| 1.21 | -42.00 | 0.66 | -42.00 | -26.98 | 87.22 | 14.47 | 213.13 | 0.4093 | -976.0 | 999999 | |
| 6.57 | -42.00 | 3.55 | -42.00 | -26.66 | 87.05 | 14.29 | 213.28 | 0.4038 | 518.1 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -27.56 | 86.75 | 14.00 | 211.44 | 0.4128 | -897.0 | -747.2 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -28.33 | 86.54 | 13.78 | 210.01 | 0.4211 | -734.0 | -588.9 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -28.68 | 86.44 | 13.69 | 209.38 | 0.4250 | -599.0 | -465.2 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -27.36 | 86.07 | 13.31 | 210.52 | 0.4045 | -688.0 | -574.1 | |
| 0.00 | 5.53 | 0.00 | 3.01 | -28.12 | 86.09 | 13.34 | 209.52 | 0.4148 | -900.0 | -727.4 | |
| 0.78 | -42.00 | 0.42 | -42.00 | -27.17 | 85.91 | 13.15 | 210.49 | 0.4008 | -683.0 | 999999 | |
| 0.61 | 1.73 | 0.32 | 0.92 | -25.13 | 85.64 | 12.89 | 213.08 | 0.3717 | 778.0 | 649.2 | |
| 0.00 | 2.85 | 0.00 | 1.55 | -28.41 | 85.96 | 13.20 | 208.89 | 0.4176 | -821.0 | -684.8 | |
| 43.14 | -42.00 | 23.18 | -42.00 | -26.51 | 85.56 | 12.81 | 210.78 | 0.3892 | -1331.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -27.29 | 84.86 | 12.11 | 208.35 | 0.3942 | -735.0 | -609.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -25.44 | 84.46 | 11.71 | 210.21 | 0.3658 | -870.0 | -601.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -27.13 | 83.75 | 11.00 | 206.38 | 0.3837 | -843.0 | -626.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -25.22 | 82.94 | 10.18 | 207.25 | 0.3509 | -857.0 | -781.6 | |
| 0.00 | 4.24 | 0.00 | 2.23 | -24.98 | 82.48 | 9.73 | 206.56 | 0.3441 | -883.0 | -802.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
