SDO HMI 2014-03-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.73 | 527.36 | 61.78 | 288.42 | -25.20 | 89.77 | 17.56 | 220.31 | 0.4245 | 8.5 | -34.4 | |
|
previous
or next observation for the same group /

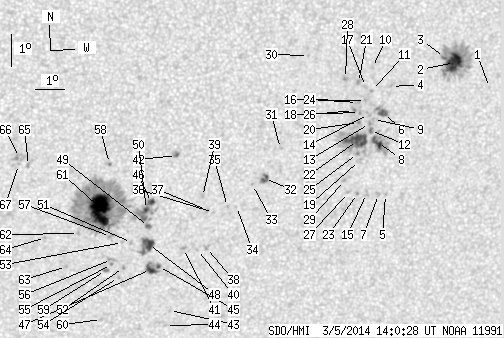

back to the solar disc SDO HMI 2014-03-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.22 | 98.36 | 26.16 | 236.46 | 0.4916 | 594.0 | 465.8 | |
| 20.40 | 83.07 | 11.43 | 46.55 | -21.52 | 96.98 | 24.78 | 236.56 | 0.4692 | 1117.6 | 398.2 | |
| 0.78 | -2.00 | 0.43 | -2.00 | -21.38 | 96.61 | 24.40 | 236.48 | 0.4634 | 1142.0 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -22.36 | 94.92 | 22.72 | 232.93 | 0.4496 | 783.0 | 665.0 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -25.71 | 95.34 | 23.14 | 227.36 | 0.4832 | 576.0 | 432.1 | |
| 3.37 | 10.29 | 1.87 | 5.71 | -23.20 | 94.79 | 22.59 | 231.19 | 0.4549 | 854.9 | 719.3 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -25.72 | 95.09 | 22.89 | 227.07 | 0.4806 | 832.0 | 673.0 | |
| 5.45 | 23.25 | 3.04 | 12.98 | -24.11 | 94.74 | 22.54 | 229.49 | 0.4622 | 926.7 | 363.5 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -23.40 | 94.48 | 22.27 | 230.47 | 0.4529 | 700.0 | 540.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -21.80 | 94.17 | 21.97 | 233.18 | 0.4357 | 834.0 | 686.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -22.51 | 94.25 | 22.05 | 231.90 | 0.4426 | 878.0 | 702.9 | |
| 0.86 | 2.25 | 0.48 | 1.25 | -23.75 | 94.43 | 22.23 | 229.79 | 0.4553 | 880.3 | 788.1 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -23.53 | 94.36 | 22.16 | 230.10 | 0.4526 | 861.0 | 804.1 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -23.25 | 94.28 | 22.07 | 230.52 | 0.4492 | 760.0 | 765.6 | |
| 0.00 | 3.28 | 0.00 | 1.85 | -25.71 | 94.66 | 22.46 | 226.60 | 0.4756 | 756.0 | 645.6 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.83 | 94.10 | 21.89 | 231.12 | 0.4434 | 1013.0 | 758.5 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -22.40 | 94.03 | 21.82 | 231.86 | 0.4388 | 824.0 | 656.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -23.21 | 93.95 | 21.75 | 230.24 | 0.4449 | 880.0 | 841.9 | |
| 0.00 | 3.20 | 0.00 | 1.78 | -24.69 | 94.22 | 22.01 | 227.85 | 0.4613 | 581.0 | 462.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -23.52 | 93.97 | 21.77 | 229.68 | 0.4479 | 1050.0 | 896.7 | |
| 0.00 | 2.77 | 0.00 | 1.52 | -22.29 | 93.77 | 21.56 | 231.78 | 0.4347 | 979.0 | 764.0 | |
| 16.94 | 44.43 | 9.41 | 24.65 | -24.07 | 94.03 | 21.83 | 228.74 | 0.4536 | 1054.1 | 629.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -25.72 | 94.34 | 22.14 | 226.21 | 0.4722 | 873.0 | 746.2 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -22.90 | 93.83 | 21.63 | 230.67 | 0.4408 | 901.0 | 842.7 | |
| 0.00 | 2.16 | 0.00 | 1.20 | -24.48 | 94.11 | 21.90 | 228.10 | 0.4581 | 727.0 | 596.4 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -23.15 | 93.74 | 21.53 | 230.08 | 0.4418 | 966.0 | 872.5 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -25.70 | 94.02 | 21.81 | 225.86 | 0.4685 | 831.0 | 564.3 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -22.18 | 93.30 | 21.10 | 231.44 | 0.4281 | 938.0 | 712.8 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -25.34 | 93.81 | 21.60 | 226.24 | 0.4627 | 922.0 | 804.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -21.53 | 91.94 | 19.74 | 231.07 | 0.4055 | 818.0 | 668.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -24.43 | 91.41 | 19.21 | 224.77 | 0.4272 | 842.0 | 626.1 | |
| 2.77 | 6.14 | 1.52 | 3.37 | -25.38 | 91.01 | 18.81 | 222.52 | 0.4327 | 1032.0 | 791.3 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -25.59 | 90.62 | 18.42 | 221.63 | 0.4308 | 862.0 | 740.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -26.30 | 90.18 | 17.98 | 219.80 | 0.4341 | -637.0 | -496.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -26.31 | 89.87 | 17.66 | 219.32 | 0.4311 | -718.0 | -566.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -26.51 | 89.41 | 17.21 | 218.31 | 0.4289 | -776.0 | -569.5 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -26.46 | 89.20 | 16.99 | 218.06 | 0.4262 | -720.0 | -657.4 | |
| 0.00 | 2.85 | 0.00 | 1.57 | -27.62 | 89.34 | 17.14 | 216.46 | 0.4412 | -719.0 | -642.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -26.02 | 88.96 | 16.75 | 218.40 | 0.4188 | -677.0 | -609.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.70 | 89.04 | 16.83 | 215.89 | 0.4393 | -596.0 | -517.1 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -27.68 | 88.54 | 16.34 | 215.15 | 0.4346 | -1044.0 | -833.8 | |
| 0.61 | 2.51 | 0.33 | 1.35 | -24.77 | 87.89 | 15.69 | 218.79 | 0.3937 | -912.9 | -774.3 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -29.67 | 88.37 | 16.16 | 212.07 | 0.4574 | -666.0 | -590.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -30.16 | 88.30 | 16.10 | 211.34 | 0.4630 | -653.0 | -482.2 | |
| 0.61 | 13.14 | 0.33 | 7.22 | -28.28 | 87.76 | 15.56 | 213.04 | 0.4350 | -909.1 | -182.1 | |
| 2.68 | 27.66 | 1.45 | 14.99 | -26.27 | 87.23 | 15.03 | 215.18 | 0.4054 | 922.4 | 165.4 | |
| 4.84 | -45.00 | 2.66 | -45.00 | -28.38 | 87.49 | 15.29 | 212.46 | 0.4341 | 716.4 | 999999 | |
| 8.04 | 16.51 | 4.39 | 9.02 | -27.59 | 87.31 | 15.11 | 213.29 | 0.4226 | -965.6 | -727.4 | |
| 1.12 | 2.77 | 0.61 | 1.50 | -27.02 | 87.23 | 15.03 | 214.01 | 0.4148 | -949.2 | -805.0 | |
| 1.56 | -46.00 | 0.84 | -46.00 | -26.49 | 87.09 | 14.89 | 214.58 | 0.4069 | 880.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -27.55 | 86.71 | 14.51 | 212.36 | 0.4169 | -956.0 | -803.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -28.35 | 86.55 | 14.34 | 210.94 | 0.4258 | -800.0 | -643.3 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -27.56 | 86.40 | 14.20 | 211.81 | 0.4144 | -719.0 | -427.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -28.67 | 86.42 | 14.21 | 210.29 | 0.4289 | -534.0 | -391.0 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -28.26 | 86.12 | 13.91 | 210.32 | 0.4212 | -827.0 | -725.9 | |
| 0.00 | 3.11 | 0.00 | 1.70 | -28.11 | 86.10 | 13.89 | 210.50 | 0.4190 | -905.0 | -598.5 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -27.38 | 85.97 | 13.76 | 211.30 | 0.4085 | -692.0 | -547.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -25.08 | 85.66 | 13.46 | 214.25 | 0.3762 | 837.0 | 683.9 | |
| 0.00 | 2.51 | 0.00 | 1.37 | -28.46 | 85.93 | 13.73 | 209.74 | 0.4224 | -794.0 | -623.4 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -30.03 | 86.01 | 13.80 | 207.87 | 0.4437 | -688.0 | -490.3 | |
| 42.70 | 208.32 | 22.99 | 112.07 | -26.50 | 85.52 | 13.31 | 211.75 | 0.3933 | -1346.3 | -429.7 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -27.31 | 84.86 | 12.66 | 209.37 | 0.3987 | -810.0 | -619.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -28.37 | 84.57 | 12.36 | 207.43 | 0.4108 | -767.0 | -614.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -27.46 | 83.75 | 11.54 | 207.03 | 0.3924 | -817.0 | -618.2 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -25.21 | 82.95 | 10.75 | 208.51 | 0.3550 | -902.0 | -684.0 | |
| 0.00 | 7.00 | 0.00 | 3.70 | -24.97 | 82.63 | 10.43 | 208.17 | 0.3491 | -596.0 | -752.3 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -25.19 | 82.62 | 10.41 | 207.81 | 0.3521 | -802.0 | -646.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
