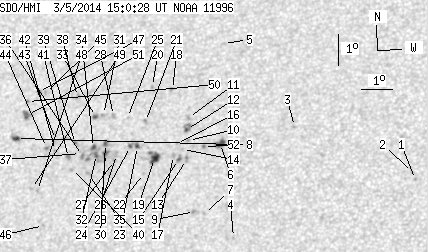

SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.06 | 126.97 | 14.39 | 72.84 | 13.84 | 49.90 | -21.75 | 45.56 | 0.5050 | -107.9 | 16.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 12.33 | 59.32 | -12.33 | 32.14 | 0.3940 | -759.0 | -649.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 12.56 | 59.21 | -12.44 | 32.05 | 0.3979 | -693.0 | -538.7 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 14.15 | 55.40 | -16.26 | 37.04 | 0.4526 | -761.0 | -574.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 10.72 | 53.68 | -17.97 | 45.09 | 0.4299 | -713.0 | -578.9 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 16.93 | 52.85 | -18.80 | 37.42 | 0.5094 | -569.0 | -374.5 | |
| 3.80 | 6.22 | 2.13 | 3.49 | 13.70 | 53.05 | -18.60 | 41.44 | 0.4702 | -997.5 | -721.6 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 11.51 | 52.70 | -18.95 | 45.32 | 0.4494 | -811.0 | -601.9 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 13.63 | 52.51 | -19.14 | 42.36 | 0.4749 | -898.0 | -777.6 | |
| 0.00 | 2.33 | 0.00 | 1.30 | 11.59 | 52.38 | -19.28 | 45.69 | 0.4539 | -918.0 | -695.6 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.85 | 52.00 | -19.65 | 42.80 | 0.4825 | -582.0 | -510.4 | |
| 0.00 | 2.16 | 0.00 | 1.23 | 14.58 | 51.94 | -19.72 | 41.85 | 0.4914 | -826.0 | -636.2 | |
| 1.04 | 5.27 | 0.59 | 2.99 | 14.20 | 51.91 | -19.75 | 42.43 | 0.4875 | -919.3 | -734.1 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 13.24 | 51.99 | -19.66 | 43.70 | 0.4761 | -978.0 | -829.6 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 13.57 | 51.83 | -19.82 | 43.45 | 0.4813 | -737.0 | -584.8 | |
| 0.78 | 2.68 | 0.44 | 1.51 | 13.26 | 51.73 | -19.92 | 44.06 | 0.4789 | -937.3 | -767.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.77 | 51.62 | -20.03 | 43.46 | 0.4857 | -739.0 | -664.7 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 13.39 | 51.55 | -20.10 | 44.11 | 0.4823 | -842.0 | -712.2 | |
| 0.00 | 1.82 | 0.00 | 1.04 | 15.51 | 51.32 | -20.33 | 41.45 | 0.5078 | -681.0 | -631.2 | |
| 5.79 | 11.50 | 3.28 | 6.52 | 13.32 | 50.94 | -20.71 | 45.07 | 0.4881 | -889.7 | -482.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 15.64 | 50.65 | -21.01 | 42.20 | 0.5160 | -725.0 | -575.0 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 14.52 | 50.53 | -21.12 | 43.90 | 0.5051 | 774.0 | 639.2 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 12.86 | 50.62 | -21.03 | 46.20 | 0.4868 | -637.0 | -570.2 | |
| 1.12 | 5.36 | 0.64 | 3.06 | 13.73 | 50.35 | -21.31 | 45.28 | 0.4988 | -713.0 | -496.1 | |
| 0.69 | -23.00 | 0.40 | -23.00 | 13.75 | 50.11 | -21.54 | 45.57 | 0.5014 | -424.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 14.68 | 49.92 | -21.73 | 44.49 | 0.5132 | 631.0 | 556.8 | |
| 0.00 | 2.42 | 0.00 | 1.39 | 13.51 | 49.68 | -21.98 | 46.49 | 0.5038 | 291.0 | 306.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 13.33 | 49.63 | -22.03 | 46.83 | 0.5024 | 318.0 | 325.2 | |
| 0.00 | 2.68 | 0.00 | 1.55 | 14.77 | 49.45 | -22.21 | 44.98 | 0.5191 | -904.0 | -720.5 | |
| 1.64 | 19.71 | 0.94 | 11.34 | 13.56 | 49.31 | -22.35 | 46.89 | 0.5083 | 932.4 | 631.7 | |
| 1.21 | 3.89 | 0.70 | 2.24 | 13.88 | 49.27 | -22.38 | 46.47 | 0.5119 | 607.4 | 304.2 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 14.82 | 49.11 | -22.54 | 45.35 | 0.5231 | -664.0 | -594.4 | |
| 1.21 | -29.00 | 0.70 | -29.00 | 13.55 | 49.01 | -22.64 | 47.30 | 0.5114 | 944.2 | 999999 | |
| 1.21 | 2.33 | 0.70 | 1.36 | 14.77 | 48.85 | -22.81 | 45.75 | 0.5254 | -694.8 | -588.1 | |
| 1.38 | -29.00 | 0.80 | -29.00 | 13.78 | 48.89 | -22.77 | 47.12 | 0.5150 | -122.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.24 | 12.96 | 48.80 | -22.85 | 48.44 | 0.5078 | 794.0 | 567.4 | |
| 0.00 | 2.68 | 0.00 | 1.55 | 13.54 | 48.55 | -23.11 | 47.89 | 0.5164 | 831.0 | 723.2 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 13.61 | 48.47 | -23.18 | 47.88 | 0.5179 | 452.0 | 540.8 | |
| 0.00 | 2.59 | 0.00 | 1.52 | 15.45 | 48.17 | -23.49 | 45.65 | 0.5394 | 857.0 | 697.8 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 13.94 | 48.27 | -23.38 | 47.65 | 0.5233 | -482.0 | -364.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 13.11 | 48.22 | -23.43 | 48.91 | 0.5159 | 801.0 | 624.6 | |
| 0.00 | 2.59 | 0.00 | 1.50 | 13.50 | 48.08 | -23.57 | 48.51 | 0.5212 | 814.0 | 681.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 13.75 | 47.62 | -24.03 | 48.70 | 0.5287 | 779.0 | 603.5 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 14.10 | 47.58 | -24.07 | 48.23 | 0.5325 | 298.0 | 370.0 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 13.86 | 47.31 | -24.35 | 48.90 | 0.5332 | 896.0 | 755.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 15.64 | 47.06 | -24.59 | 46.70 | 0.5528 | 709.0 | 572.6 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 11.39 | 47.45 | -24.20 | 52.48 | 0.5087 | 733.0 | 560.0 | |
| 0.35 | 1.56 | 0.21 | 0.93 | 15.68 | 46.82 | -24.84 | 46.92 | 0.5559 | 715.8 | 615.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 12.51 | 47.15 | -24.51 | 51.10 | 0.5224 | 775.0 | 614.1 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 12.58 | 46.94 | -24.71 | 51.22 | 0.5255 | 723.0 | 595.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 15.38 | 46.48 | -25.17 | 47.71 | 0.5566 | 614.0 | 506.2 | |
| 2.25 | 5.45 | 1.33 | 3.23 | 14.93 | 46.50 | -25.15 | 48.31 | 0.5521 | 904.1 | 709.4 | |
| 2.59 | 5.01 | 1.53 | 2.97 | 14.21 | 46.25 | -25.40 | 49.61 | 0.5481 | 909.6 | 643.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
