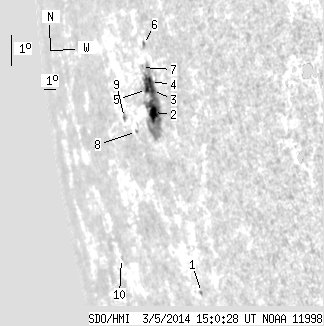

SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.72 | 92.33 | 26.81 | 140.51 | -10.18 | 359.77 | -71.89 | 98.32 | 0.9467 | 362.2 | 181.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 2.23 | -16.01 | 0.69 | -70.97 | 104.45 | 0.9398 | 200.0 | 241.9 | |
| 9.33 | 80.99 | 14.04 | 121.82 | -10.42 | 359.99 | -71.67 | 98.56 | 0.9455 | 490.0 | 233.6 | |
| 2.25 | -2.00 | 3.34 | -2.00 | -9.79 | 0.24 | -71.42 | 97.87 | 0.9444 | 551.2 | 999999 | |
| 2.94 | -2.00 | 4.39 | -2.00 | -9.51 | 0.19 | -71.46 | 97.58 | 0.9448 | 639.3 | 999999 | |
| 2.51 | -2.00 | 3.82 | -2.00 | -9.69 | 359.70 | -71.95 | 97.81 | 0.9474 | 215.4 | 999999 | |
| 0.00 | 2.25 | 0.00 | 3.39 | -8.38 | 0.06 | -71.60 | 96.39 | 0.9460 | -380.0 | -314.3 | |
| 0.00 | 2.51 | 0.00 | 3.86 | -9.01 | 359.56 | -72.09 | 97.10 | 0.9485 | -89.0 | 29.3 | |
| 0.00 | 1.04 | 0.00 | 1.72 | -10.77 | 358.03 | -73.63 | 99.07 | 0.9558 | 82.0 | 96.0 | |
| 0.69 | 2.94 | 1.22 | 5.18 | -10.22 | 357.04 | -74.62 | 98.58 | 0.9609 | -266.9 | -239.6 | |
| 0.00 | 1.04 | 0.00 | 2.31 | -14.05 | 353.10 | -78.55 | 102.83 | 0.9762 | -316.0 | -279.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
