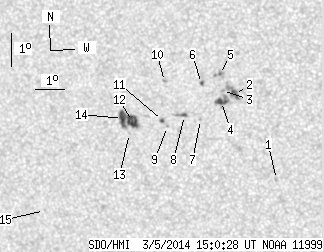

SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.73 | 62.65 | 13.95 | 35.14 | -17.26 | 44.95 | -26.70 | 113.57 | 0.4699 | -155.5 | 232.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.91 | -19.55 | 47.90 | -23.75 | 120.47 | 0.4423 | -506.0 | -491.5 | |
| 2.77 | 10.46 | 1.52 | 5.77 | -16.91 | 46.85 | -24.80 | 114.06 | 0.4414 | 1052.2 | 795.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.77 | 46.46 | -25.19 | 113.49 | 0.4463 | 787.0 | 695.8 | |
| 3.89 | 10.20 | 2.15 | 5.65 | -17.10 | 46.38 | -25.27 | 114.13 | 0.4490 | 797.3 | 657.2 | |
| 0.00 | 4.24 | 0.00 | 2.34 | -16.29 | 46.43 | -25.23 | 112.42 | 0.4444 | 917.0 | 760.5 | |
| 0.69 | 1.56 | 0.38 | 0.86 | -16.52 | 45.77 | -25.88 | 112.52 | 0.4549 | 671.0 | 564.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.60 | 45.58 | -26.08 | 114.64 | 0.4629 | 596.0 | 433.2 | |
| 0.78 | 4.75 | 0.44 | 2.67 | -17.45 | 45.04 | -26.61 | 113.98 | 0.4696 | 824.8 | 482.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -17.75 | 44.40 | -27.26 | 114.17 | 0.4801 | -733.0 | -559.3 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -16.39 | 44.51 | -27.14 | 111.50 | 0.4724 | -855.0 | -689.4 | |
| 0.78 | 1.64 | 0.44 | 0.93 | -17.56 | 44.25 | -27.40 | 113.71 | 0.4812 | -759.8 | -677.3 | |
| 9.08 | 22.64 | 5.17 | 12.91 | -17.53 | 43.20 | -28.45 | 113.03 | 0.4957 | -1030.6 | -691.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -17.88 | 43.03 | -28.62 | 113.62 | 0.4996 | -601.0 | -495.8 | |
| 6.74 | -12.00 | 3.85 | -12.00 | -17.42 | 42.86 | -28.79 | 112.63 | 0.4999 | -826.3 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -20.02 | 39.49 | -32.16 | 115.57 | 0.5566 | 692.0 | 591.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
