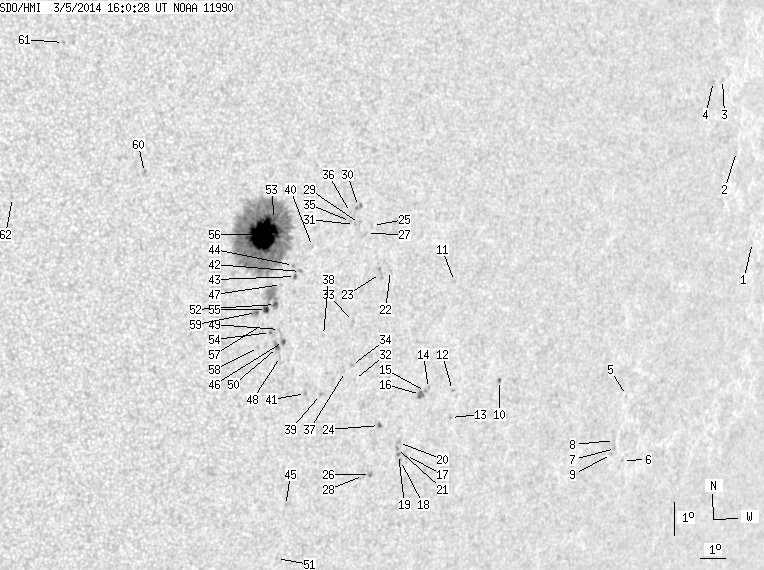

SDO HMI 2014-03-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.40 | 444.97 | 41.27 | 275.51 | -12.87 | 108.04 | 36.94 | 258.20 | 0.6000 | 317.9 | 258.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.47 | -10.58 | 128.29 | 57.19 | 262.07 | 0.8363 | 213.0 | 230.7 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -8.00 | 126.78 | 55.67 | 265.27 | 0.8228 | 397.0 | 446.4 | |
| 0.00 | 1.21 | 0.00 | 1.03 | -5.95 | 125.68 | 54.58 | 267.86 | 0.8133 | 525.0 | 556.3 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -6.06 | 125.23 | 54.13 | 267.78 | 0.8087 | 433.0 | 439.6 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -15.72 | 123.28 | 52.17 | 255.66 | 0.7871 | 464.0 | 477.1 | |
| 0.00 | 0.95 | 0.00 | 0.77 | -17.66 | 123.83 | 52.72 | 253.25 | 0.7941 | 568.0 | 480.1 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -17.34 | 123.33 | 52.23 | 253.61 | 0.7888 | 495.0 | 467.1 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -17.10 | 123.19 | 52.09 | 253.89 | 0.7871 | 603.0 | 510.8 | |
| 0.00 | 1.47 | 0.00 | 1.18 | -17.53 | 123.21 | 52.11 | 253.35 | 0.7877 | 720.0 | 598.1 | |
| 0.60 | 1.38 | 0.43 | 0.99 | -15.82 | 117.27 | 46.17 | 254.96 | 0.7210 | 336.4 | 314.2 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -13.05 | 114.61 | 43.51 | 258.62 | 0.6865 | -484.0 | -396.6 | |
| 0.00 | 1.21 | 0.00 | 0.84 | -16.29 | 115.34 | 44.24 | 254.03 | 0.6988 | 654.0 | 575.5 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -17.10 | 115.49 | 44.39 | 252.91 | 0.7018 | 655.0 | 575.5 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -16.31 | 114.31 | 43.21 | 253.83 | 0.6865 | -322.0 | -349.6 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -16.41 | 114.21 | 43.11 | 253.67 | 0.6855 | -649.0 | -606.1 | |
| 0.00 | 4.41 | 0.00 | 2.98 | -16.52 | 114.03 | 42.93 | 253.48 | 0.6834 | -753.0 | -555.0 | |
| 0.00 | 2.16 | 0.00 | 1.47 | -18.39 | 113.93 | 42.83 | 250.75 | 0.6857 | -516.0 | -424.3 | |
| 0.00 | 1.90 | 0.00 | 1.29 | -18.56 | 113.77 | 42.67 | 250.47 | 0.6841 | -670.0 | -528.1 | |
| 0.43 | 1.30 | 0.29 | 0.88 | -18.39 | 113.63 | 42.53 | 250.69 | 0.6821 | -743.4 | -697.6 | |
| 0.00 | 2.07 | 0.00 | 1.40 | -18.03 | 113.53 | 42.42 | 251.19 | 0.6800 | -834.0 | -611.8 | |
| 0.00 | 1.64 | 0.00 | 1.11 | -18.21 | 113.50 | 42.39 | 250.91 | 0.6801 | -748.0 | -733.1 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -12.94 | 111.94 | 40.84 | 258.54 | 0.6526 | -488.0 | -390.4 | |
| 0.00 | 4.41 | 0.00 | 2.86 | -13.06 | 111.56 | 40.46 | 258.31 | 0.6479 | -590.0 | -550.5 | |
| 0.78 | 1.81 | 0.52 | 1.20 | -17.58 | 112.60 | 41.49 | 251.63 | 0.6678 | -654.2 | -539.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -11.66 | 110.99 | 39.88 | 260.44 | 0.6392 | 684.0 | 490.0 | |
| 0.00 | 2.33 | 0.00 | 1.56 | -19.08 | 112.66 | 41.55 | 249.44 | 0.6719 | -537.0 | -449.6 | |
| 0.00 | 1.56 | 0.00 | 1.00 | -11.92 | 110.79 | 39.69 | 260.02 | 0.6368 | 698.0 | 581.4 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -19.13 | 112.38 | 41.28 | 249.29 | 0.6686 | -486.0 | -451.5 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -11.64 | 110.47 | 39.37 | 260.43 | 0.6323 | 551.0 | 568.9 | |
| 0.00 | 3.02 | 0.00 | 1.93 | -11.14 | 110.35 | 39.25 | 261.21 | 0.6304 | 752.0 | 687.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -11.69 | 110.28 | 39.18 | 260.34 | 0.6298 | 514.0 | 570.9 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -16.29 | 111.23 | 40.13 | 253.28 | 0.6482 | -505.0 | -451.6 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -14.57 | 110.79 | 39.69 | 255.87 | 0.6397 | -632.0 | -502.2 | |
| 0.00 | 1.30 | 0.00 | 0.84 | -15.88 | 111.01 | 39.91 | 253.87 | 0.6446 | -681.0 | -520.1 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -11.61 | 110.11 | 39.01 | 260.45 | 0.6275 | 787.0 | 709.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -11.34 | 110.07 | 38.97 | 260.87 | 0.6268 | 797.0 | 660.0 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -16.08 | 110.81 | 39.71 | 253.52 | 0.6425 | -484.0 | -497.6 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -15.07 | 109.71 | 38.60 | 254.87 | 0.6264 | -650.0 | -541.2 | |
| 0.00 | 1.64 | 0.00 | 1.05 | -16.84 | 109.99 | 38.89 | 252.15 | 0.6336 | -675.0 | -500.3 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -12.46 | 108.78 | 37.68 | 258.94 | 0.6104 | -365.0 | -354.1 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -16.86 | 109.40 | 38.30 | 251.98 | 0.6260 | -806.0 | -647.7 | |
| 0.00 | 1.64 | 0.00 | 1.02 | -13.24 | 108.45 | 37.35 | 257.62 | 0.6069 | -572.0 | -483.1 | |
| 0.43 | 1.81 | 0.27 | 1.13 | -13.40 | 108.29 | 37.18 | 257.32 | 0.6049 | -722.6 | -604.2 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -13.08 | 108.15 | 37.05 | 257.83 | 0.6026 | -498.0 | -348.6 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -20.28 | 109.50 | 38.40 | 246.68 | 0.6368 | -517.0 | -432.5 | |
| 0.86 | 2.77 | 0.54 | 1.72 | -15.37 | 108.20 | 37.10 | 254.07 | 0.6071 | 249.8 | 153.1 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -13.68 | 107.80 | 36.70 | 256.78 | 0.5987 | -487.0 | -354.2 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -15.82 | 108.18 | 37.08 | 253.33 | 0.6078 | -481.0 | -434.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -15.02 | 107.98 | 36.88 | 254.59 | 0.6035 | -455.0 | -242.2 | |
| 0.86 | 4.32 | 0.54 | 2.68 | -15.56 | 108.01 | 36.91 | 253.71 | 0.6050 | -755.2 | -588.2 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -21.91 | 109.63 | 38.53 | 244.26 | 0.6439 | -452.0 | -361.4 | |
| 1.21 | 19.19 | 0.75 | 11.80 | -14.29 | 107.68 | 36.58 | 255.74 | 0.5981 | -548.7 | 65.7 | |
| 1.99 | 336.61 | 1.21 | 204.98 | -11.77 | 107.22 | 36.12 | 259.92 | 0.5883 | 728.6 | 419.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -15.13 | 107.66 | 36.55 | 254.33 | 0.5994 | -712.0 | -500.4 | |
| 2.42 | 3.72 | 1.49 | 2.28 | -14.46 | 107.37 | 36.27 | 255.39 | 0.5942 | -791.9 | -591.1 | |
| 57.30 | -53.00 | 34.91 | -53.00 | -12.24 | 106.91 | 35.81 | 259.07 | 0.5846 | 1241.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -14.92 | 107.31 | 36.20 | 254.61 | 0.5942 | -610.0 | -522.5 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -15.61 | 107.29 | 36.19 | 253.44 | 0.5955 | -909.0 | -698.3 | |
| 0.52 | 3.89 | 0.32 | 2.38 | -14.58 | 107.01 | 35.91 | 255.11 | 0.5896 | -615.5 | -391.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -10.69 | 102.33 | 31.23 | 261.28 | 0.5175 | -760.0 | -576.4 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -7.00 | 99.20 | 28.10 | 268.70 | 0.4695 | -700.0 | -584.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -11.70 | 97.86 | 26.76 | 258.34 | 0.4521 | -701.0 | -564.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
