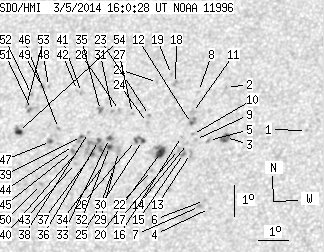

SDO HMI 2014-03-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.66 | 136.39 | 11.78 | 78.00 | 13.89 | 49.82 | -21.28 | 44.91 | 0.5004 | -109.7 | 24.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | 13.83 | 55.66 | -15.44 | 36.06 | 0.4411 | -761.0 | -614.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 15.31 | 52.98 | -18.13 | 38.48 | 0.4842 | -745.0 | -576.9 | |
| 3.46 | 7.35 | 1.93 | 4.10 | 13.71 | 53.08 | -18.02 | 40.54 | 0.4644 | -993.5 | -758.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 11.48 | 52.73 | -18.37 | 44.47 | 0.4428 | -794.0 | -620.1 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 13.63 | 52.54 | -18.57 | 41.48 | 0.4691 | -839.0 | -691.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 11.74 | 52.55 | -18.55 | 44.34 | 0.4476 | -697.0 | -512.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 11.56 | 52.40 | -18.70 | 44.86 | 0.4472 | -882.0 | -799.5 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 15.22 | 52.08 | -19.03 | 39.96 | 0.4918 | -500.0 | -350.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 13.68 | 52.11 | -18.99 | 42.05 | 0.4740 | -802.0 | -651.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 13.85 | 52.00 | -19.10 | 41.98 | 0.4769 | -465.0 | -373.9 | |
| 0.00 | 3.54 | 0.00 | 2.01 | 14.55 | 51.94 | -19.16 | 41.08 | 0.4855 | -645.0 | -551.9 | |
| 0.60 | 4.84 | 0.34 | 2.73 | 14.20 | 51.94 | -19.16 | 41.57 | 0.4816 | -957.7 | -718.7 | |
| 0.00 | 2.77 | 0.00 | 1.55 | 13.25 | 51.99 | -19.12 | 42.89 | 0.4704 | -927.0 | -761.0 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.57 | 51.86 | -19.24 | 42.60 | 0.4752 | -727.0 | -536.6 | |
| 0.00 | 2.59 | 0.00 | 1.46 | 13.26 | 51.76 | -19.34 | 43.21 | 0.4728 | -1088.0 | -848.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.80 | 51.65 | -19.45 | 42.57 | 0.4800 | -765.0 | -650.0 | |
| 0.00 | 1.99 | 0.00 | 1.12 | 13.39 | 51.59 | -19.52 | 43.27 | 0.4761 | -805.0 | -619.5 | |
| 0.00 | 2.85 | 0.00 | 1.63 | 15.51 | 51.29 | -19.81 | 40.70 | 0.5027 | -794.0 | -626.4 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 15.81 | 51.13 | -19.97 | 40.54 | 0.5077 | -651.0 | -560.7 | |
| 5.62 | 13.14 | 3.17 | 7.42 | 13.32 | 51.01 | -20.10 | 44.20 | 0.4815 | -908.4 | -441.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 15.57 | 50.70 | -20.41 | 41.46 | 0.5093 | -637.0 | -518.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 12.76 | 50.76 | -20.34 | 45.39 | 0.4782 | -733.0 | -582.7 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 14.52 | 50.54 | -20.56 | 43.13 | 0.4994 | 763.0 | 617.3 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 14.30 | 50.49 | -20.61 | 43.51 | 0.4975 | 678.0 | 536.1 | |
| 1.21 | 5.53 | 0.69 | 3.15 | 13.73 | 50.38 | -20.72 | 44.48 | 0.4925 | -716.4 | -496.3 | |
| 0.86 | -25.00 | 0.49 | -25.00 | 13.74 | 50.15 | -20.95 | 44.78 | 0.4951 | -546.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 14.61 | 49.97 | -21.13 | 43.78 | 0.5063 | 480.0 | 311.8 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 14.73 | 49.53 | -21.57 | 44.21 | 0.5121 | -802.0 | -666.6 | |
| 0.00 | 4.23 | 0.00 | 2.41 | 13.42 | 49.62 | -21.48 | 45.97 | 0.4974 | 388.0 | 408.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 12.89 | 49.51 | -21.59 | 46.92 | 0.4932 | 764.0 | 604.3 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 14.71 | 49.30 | -21.80 | 44.54 | 0.5143 | -734.0 | -635.7 | |
| 1.56 | 3.46 | 0.89 | 1.98 | 13.60 | 49.31 | -21.79 | 46.13 | 0.5026 | 911.6 | 651.5 | |
| 1.21 | 2.59 | 0.69 | 1.49 | 13.85 | 49.29 | -21.82 | 45.78 | 0.5055 | 671.4 | 447.8 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 13.06 | 49.20 | -21.91 | 47.07 | 0.4984 | 766.0 | 620.9 | |
| 0.52 | 3.20 | 0.30 | 1.85 | 14.76 | 48.90 | -22.21 | 44.99 | 0.5191 | -760.7 | -568.0 | |
| 0.78 | 21.52 | 0.45 | 12.35 | 13.81 | 48.93 | -22.17 | 46.32 | 0.5089 | -275.2 | 625.9 | |
| 0.86 | -36.00 | 0.50 | -36.00 | 13.37 | 48.74 | -22.36 | 47.20 | 0.5066 | 988.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 14.08 | 48.57 | -22.53 | 46.38 | 0.5155 | -494.0 | -429.1 | |
| 0.52 | 3.89 | 0.30 | 2.25 | 13.96 | 48.35 | -22.75 | 46.83 | 0.5168 | -396.7 | -103.2 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 13.64 | 48.38 | -22.72 | 47.25 | 0.5132 | 694.0 | 622.1 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 15.38 | 48.19 | -22.91 | 45.03 | 0.5327 | 845.0 | 755.0 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 15.45 | 48.05 | -23.05 | 45.11 | 0.5349 | 828.0 | 706.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.11 | 48.23 | -22.87 | 48.22 | 0.5096 | 820.0 | 651.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 13.69 | 48.11 | -22.99 | 47.52 | 0.5166 | 574.0 | 543.8 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 13.50 | 48.10 | -23.01 | 47.82 | 0.5149 | 785.0 | 658.2 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 14.26 | 47.55 | -23.55 | 47.39 | 0.5284 | 595.0 | 519.7 | |
| 0.78 | 2.77 | 0.45 | 1.61 | 13.86 | 47.32 | -23.78 | 48.24 | 0.5269 | 862.6 | 681.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 15.63 | 47.05 | -24.05 | 46.07 | 0.5472 | 649.0 | 503.0 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 15.64 | 46.85 | -24.26 | 46.29 | 0.5494 | 740.0 | 644.4 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 12.51 | 47.16 | -23.94 | 50.44 | 0.5159 | 776.0 | 649.2 | |
| 0.00 | 3.46 | 0.00 | 2.04 | 14.92 | 46.56 | -24.54 | 47.62 | 0.5454 | 1016.0 | 828.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 15.41 | 46.50 | -24.60 | 47.02 | 0.5507 | 662.0 | 562.0 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 15.06 | 46.38 | -24.73 | 47.64 | 0.5488 | 781.0 | 700.2 | |
| 2.68 | 5.44 | 1.58 | 3.21 | 14.24 | 46.20 | -24.90 | 48.99 | 0.5429 | 893.5 | 652.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
