SDO HMI 2014-03-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.89 | 519.19 | 56.34 | 286.38 | -25.28 | 89.60 | 19.05 | 222.36 | 0.4402 | -47.6 | -26.1 | |
|
previous
or next observation for the same group /

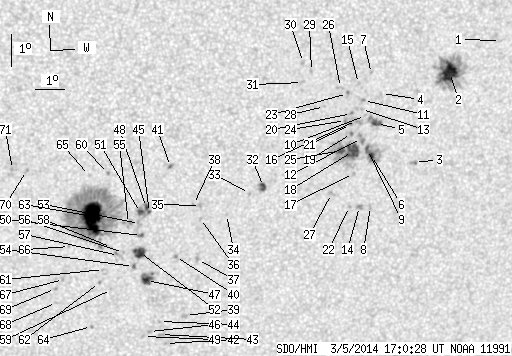

back to the solar disc SDO HMI 2014-03-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.20 | -20.43 | 98.68 | 28.13 | 241.28 | 0.5058 | 694.0 | 721.2 | |
| 19.01 | 70.08 | 10.80 | 39.81 | -21.50 | 97.06 | 26.51 | 238.09 | 0.4912 | 1117.4 | 462.7 | |
| 0.00 | 2.51 | 0.00 | 1.43 | -24.33 | 96.39 | 25.84 | 232.45 | 0.5029 | -833.0 | -712.9 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -22.26 | 94.79 | 24.24 | 234.66 | 0.4678 | 612.0 | 517.0 | |
| 3.54 | 8.99 | 1.99 | 5.05 | -23.19 | 94.79 | 24.24 | 232.94 | 0.4749 | 823.6 | 738.7 | |
| 2.68 | 21.26 | 1.51 | 12.01 | -24.19 | 94.81 | 24.26 | 231.17 | 0.4830 | 911.1 | 337.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -21.67 | 94.34 | 23.78 | 235.35 | 0.4575 | 780.0 | 736.0 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -25.77 | 95.11 | 24.56 | 228.76 | 0.4997 | 876.0 | 586.3 | |
| 1.38 | -6.00 | 0.78 | -6.00 | -24.01 | 94.63 | 24.08 | 231.31 | 0.4795 | 935.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.96 | 94.36 | 23.81 | 232.92 | 0.4678 | 716.0 | 518.2 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -22.51 | 94.20 | 23.65 | 233.62 | 0.4623 | 945.0 | 798.4 | |
| 0.00 | 4.75 | 0.00 | 2.67 | -23.68 | 94.35 | 23.80 | 231.61 | 0.4735 | 871.0 | 801.7 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -22.79 | 94.18 | 23.63 | 233.08 | 0.4642 | 821.0 | 688.0 | |
| 0.00 | 3.46 | 0.00 | 1.97 | -25.79 | 94.71 | 24.16 | 228.32 | 0.4954 | 904.0 | 693.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -21.99 | 93.94 | 23.39 | 234.32 | 0.4550 | 653.0 | 510.1 | |
| 0.00 | 7.09 | 0.00 | 3.96 | -23.13 | 94.07 | 23.52 | 232.32 | 0.4656 | 905.0 | 745.2 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -24.78 | 94.28 | 23.73 | 229.60 | 0.4818 | 678.0 | 552.7 | |
| 12.10 | 47.01 | 6.80 | 26.38 | -24.10 | 94.11 | 23.56 | 230.62 | 0.4740 | 999.4 | 681.1 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -23.54 | 93.97 | 23.42 | 231.47 | 0.4677 | 1039.0 | 876.7 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -22.93 | 93.86 | 23.31 | 232.48 | 0.4613 | 1038.0 | 844.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -23.27 | 93.88 | 23.33 | 231.88 | 0.4644 | 966.0 | 904.0 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -25.81 | 94.35 | 23.80 | 227.92 | 0.4915 | 879.0 | 713.2 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -22.32 | 93.61 | 23.06 | 233.37 | 0.4534 | 1023.0 | 869.4 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -23.15 | 93.69 | 23.14 | 231.89 | 0.4611 | 979.0 | 823.8 | |
| 3.20 | -18.00 | 1.79 | -18.00 | -24.08 | 93.72 | 23.17 | 230.23 | 0.4693 | 1143.4 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.53 | -22.14 | 93.34 | 22.78 | 233.41 | 0.4486 | 740.0 | 692.0 | |
| 0.00 | 2.33 | 0.00 | 1.32 | -25.43 | 93.63 | 23.08 | 227.77 | 0.4800 | 833.0 | 690.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -22.75 | 92.88 | 22.33 | 231.76 | 0.4480 | 742.0 | 551.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -21.70 | 92.26 | 21.71 | 233.11 | 0.4315 | 705.0 | 561.0 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -21.44 | 91.94 | 21.39 | 233.27 | 0.4254 | 813.0 | 679.0 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -22.05 | 92.00 | 21.45 | 232.12 | 0.4313 | 724.0 | 537.8 | |
| 2.94 | 5.53 | 1.63 | 3.07 | -25.32 | 91.19 | 20.64 | 225.10 | 0.4518 | 1045.1 | 792.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.56 | 90.74 | 20.19 | 224.11 | 0.4493 | 660.0 | 608.2 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -26.25 | 90.06 | 19.50 | 222.04 | 0.4491 | -558.0 | -455.6 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -26.00 | 89.10 | 18.55 | 221.13 | 0.4366 | -666.0 | -542.7 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -26.40 | 89.17 | 18.62 | 220.56 | 0.4417 | -803.0 | -612.9 | |
| 0.00 | 2.42 | 0.00 | 1.35 | -27.70 | 89.29 | 18.74 | 218.66 | 0.4571 | -768.0 | -638.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -25.97 | 88.86 | 18.30 | 220.82 | 0.4338 | -809.0 | -633.0 | |
| 0.00 | 3.28 | 0.00 | 1.85 | -29.50 | 89.19 | 18.64 | 215.88 | 0.4765 | -474.0 | -449.8 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -27.63 | 88.50 | 17.95 | 217.65 | 0.4488 | -979.0 | -808.3 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -24.82 | 87.88 | 17.33 | 221.36 | 0.4110 | -964.0 | -807.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -30.42 | 88.64 | 18.09 | 213.86 | 0.4825 | -783.0 | -646.6 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -30.14 | 88.41 | 17.86 | 213.92 | 0.4772 | -683.0 | -566.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -29.72 | 88.29 | 17.74 | 214.32 | 0.4713 | -757.0 | -659.8 | |
| 0.52 | 12.27 | 0.28 | 6.69 | -26.28 | 87.37 | 16.82 | 218.09 | 0.4224 | -636.2 | 314.5 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -30.06 | 87.99 | 17.44 | 213.45 | 0.4727 | -896.0 | -704.2 | |
| 5.10 | 11.58 | 2.82 | 6.41 | -28.43 | 87.61 | 17.05 | 215.15 | 0.4499 | 644.0 | -53.1 | |
| 1.30 | -45.00 | 0.71 | -45.00 | -26.12 | 87.25 | 16.70 | 218.15 | 0.4194 | 740.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -30.23 | 87.81 | 17.26 | 212.96 | 0.4732 | -608.0 | -509.9 | |
| 0.52 | 2.85 | 0.28 | 1.56 | -27.01 | 87.21 | 16.65 | 216.67 | 0.4294 | -905.7 | -755.1 | |
| 2.07 | -45.00 | 1.13 | -45.00 | -26.29 | 87.06 | 16.51 | 217.59 | 0.4195 | 870.7 | 999999 | |
| 7.86 | 10.54 | 4.32 | 5.80 | -27.55 | 87.22 | 16.67 | 215.86 | 0.4359 | -896.8 | -679.4 | |
| 0.00 | 3.54 | 0.00 | 1.94 | -26.64 | 87.08 | 16.53 | 217.06 | 0.4237 | 106.0 | -0.6 | |
| 0.52 | 1.99 | 0.29 | 1.10 | -28.00 | 87.08 | 16.53 | 214.98 | 0.4400 | -818.7 | -632.5 | |
| 0.00 | 6.65 | 0.00 | 3.63 | -26.65 | 86.70 | 16.15 | 216.44 | 0.4203 | 2.0 | -79.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -27.57 | 86.66 | 16.11 | 214.97 | 0.4311 | -952.0 | -742.9 | |
| 0.00 | 3.20 | 0.00 | 1.75 | -27.67 | 86.50 | 15.95 | 214.56 | 0.4308 | -505.0 | -490.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -27.42 | 86.22 | 15.67 | 214.48 | 0.4253 | -605.0 | -527.9 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -28.76 | 86.42 | 15.87 | 212.87 | 0.4435 | -551.0 | -423.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -25.10 | 85.80 | 15.25 | 217.48 | 0.3932 | 932.0 | 814.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -28.13 | 86.05 | 15.49 | 213.16 | 0.4325 | -553.0 | -449.2 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -28.55 | 85.97 | 15.42 | 212.45 | 0.4371 | -704.0 | -521.1 | |
| 39.15 | 224.07 | 21.21 | 121.33 | -26.47 | 85.43 | 14.88 | 214.62 | 0.4064 | -1408.4 | -414.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -29.96 | 85.90 | 15.35 | 210.45 | 0.4545 | -757.0 | -636.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -25.18 | 85.17 | 14.62 | 216.22 | 0.3881 | -336.0 | -249.3 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -27.43 | 84.77 | 14.22 | 212.02 | 0.4129 | -647.0 | -563.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -28.49 | 84.70 | 14.15 | 210.43 | 0.4260 | -702.0 | -607.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -29.23 | 84.56 | 14.00 | 209.22 | 0.4345 | -564.0 | -486.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -28.78 | 84.46 | 13.91 | 209.63 | 0.4279 | -681.0 | -581.8 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -25.08 | 83.03 | 12.48 | 212.34 | 0.3674 | -873.0 | -771.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -25.06 | 82.56 | 12.01 | 211.41 | 0.3631 | -1027.0 | -862.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
