SDO HMI 2014-03-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.21 | 22.38 | 7.78 | 21.24 | -10.81 | 11.35 | -59.21 | 98.27 | 0.8547 | 339.7 | 192.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

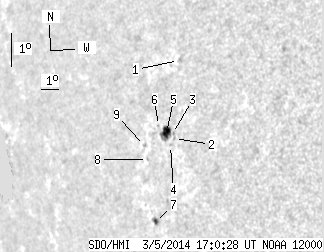

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.71 | -8.43 | 12.88 | -57.67 | 95.38 | 0.8417 | 474.0 | 467.7 | |
| 0.00 | 1.21 | 0.00 | 1.13 | -10.68 | 12.04 | -58.52 | 98.10 | 0.8486 | 567.0 | 528.9 | |
| 0.00 | 1.99 | 0.00 | 1.85 | -10.53 | 11.97 | -58.58 | 97.91 | 0.8492 | 692.0 | 537.3 | |
| 0.00 | 0.86 | 0.00 | 0.81 | -10.86 | 11.74 | -58.81 | 98.32 | 0.8511 | 374.0 | 310.0 | |
| 6.83 | 11.41 | 6.42 | 10.74 | -10.46 | 11.64 | -58.92 | 97.85 | 0.8522 | 580.9 | 307.0 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -10.21 | 11.24 | -59.31 | 97.57 | 0.8559 | 327.0 | 256.1 | |
| 1.38 | 3.02 | 1.36 | 2.97 | -12.98 | 10.06 | -60.49 | 100.84 | 0.8655 | -608.4 | -448.0 | |
| 0.00 | 0.78 | 0.00 | 0.76 | -11.13 | 10.27 | -60.28 | 98.68 | 0.8641 | 136.0 | 200.3 | |
| 0.00 | 1.64 | 0.00 | 1.61 | -10.70 | 10.23 | -60.32 | 98.19 | 0.8645 | -451.0 | -318.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
