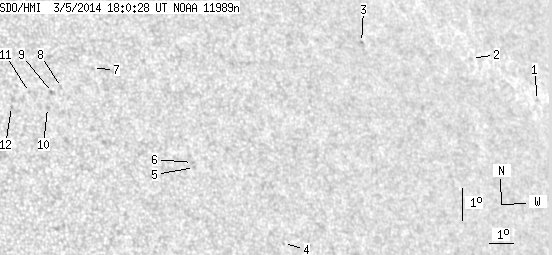

SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.39 | 0.00 | 8.96 | 10.37 | 107.90 | 37.90 | 295.06 | 0.6625 | 333.1 | 234.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.76 | 11.72 | 122.73 | 52.73 | 289.53 | 0.8290 | -568.0 | -497.1 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 12.74 | 119.79 | 49.79 | 291.82 | 0.8045 | -338.0 | -296.8 | |
| 0.00 | 1.47 | 0.00 | 1.11 | 12.77 | 114.82 | 44.82 | 294.03 | 0.7550 | -604.0 | -537.6 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 6.18 | 110.57 | 40.57 | 287.35 | 0.6798 | 415.0 | 363.2 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 8.25 | 107.35 | 37.35 | 291.91 | 0.6495 | 613.0 | 463.1 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 8.40 | 107.29 | 37.29 | 292.16 | 0.6495 | 610.0 | 537.0 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 11.06 | 103.90 | 33.90 | 298.15 | 0.6232 | 510.0 | 405.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 10.38 | 102.69 | 32.69 | 298.05 | 0.6043 | 692.0 | 561.4 | |
| 0.00 | 2.42 | 0.00 | 1.49 | 10.20 | 102.35 | 32.35 | 298.04 | 0.5989 | 603.0 | 522.5 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 9.72 | 102.11 | 32.11 | 297.50 | 0.5929 | 685.0 | 548.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 10.14 | 101.52 | 31.52 | 298.59 | 0.5884 | 674.0 | 541.1 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 9.66 | 100.83 | 30.83 | 298.40 | 0.5766 | 705.0 | 545.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
