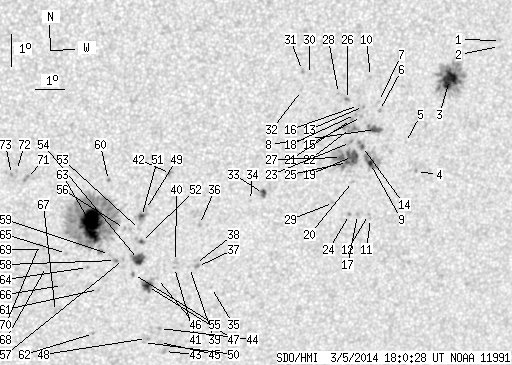

SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.36 | 469.28 | 55.01 | 259.61 | -25.28 | 89.55 | 19.55 | 223.01 | 0.4457 | -131.9 | -27.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.25 | -20.21 | 98.66 | 28.66 | 242.04 | 0.5116 | 681.0 | 597.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -20.40 | 98.66 | 28.66 | 241.70 | 0.5126 | 553.0 | 548.5 | |
| 17.45 | 67.14 | 9.96 | 38.32 | -21.50 | 97.08 | 27.08 | 238.54 | 0.4986 | 1131.8 | 458.7 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -24.39 | 96.50 | 26.50 | 232.94 | 0.5113 | -745.0 | -689.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -23.51 | 95.91 | 25.91 | 233.94 | 0.4977 | 229.0 | 202.4 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -22.58 | 94.79 | 24.79 | 234.60 | 0.4770 | 711.0 | 583.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -22.30 | 94.70 | 24.70 | 235.03 | 0.4738 | 674.0 | 508.7 | |
| 3.89 | 10.20 | 2.19 | 5.75 | -23.17 | 94.76 | 24.76 | 233.50 | 0.4811 | 786.2 | 561.6 | |
| 2.51 | 21.08 | 1.42 | 11.96 | -24.23 | 94.80 | 24.80 | 231.65 | 0.4898 | 881.5 | 422.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -21.55 | 94.29 | 24.29 | 236.05 | 0.4630 | 742.0 | 617.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -25.93 | 95.17 | 25.17 | 229.11 | 0.5080 | 678.0 | 583.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -25.81 | 95.07 | 25.07 | 229.21 | 0.5059 | 687.0 | 581.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -22.48 | 94.21 | 24.21 | 234.22 | 0.4690 | 809.0 | 715.9 | |
| 1.12 | 3.72 | 0.63 | 2.10 | -23.71 | 94.41 | 24.41 | 232.17 | 0.4810 | 837.5 | 782.8 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -22.79 | 94.19 | 24.19 | 233.63 | 0.4712 | 799.0 | 662.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.46 | 94.03 | 24.03 | 234.09 | 0.4665 | 762.0 | 671.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -25.83 | 94.67 | 24.67 | 228.78 | 0.5015 | 949.0 | 800.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -22.74 | 93.97 | 23.97 | 233.51 | 0.4680 | 854.0 | 758.2 | |
| 8.21 | 34.22 | 4.63 | 19.27 | -24.04 | 94.12 | 24.12 | 231.30 | 0.4801 | 1026.6 | 789.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -24.81 | 94.27 | 24.27 | 230.10 | 0.4884 | 665.0 | 542.4 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -22.90 | 93.86 | 23.86 | 233.10 | 0.4679 | 1055.0 | 856.8 | |
| 0.00 | 10.02 | 0.00 | 5.62 | -23.18 | 93.88 | 23.88 | 232.60 | 0.4703 | 926.0 | 845.4 | |
| 0.00 | 2.51 | 0.00 | 1.41 | -23.61 | 93.96 | 23.96 | 231.90 | 0.4748 | 1020.0 | 867.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -25.85 | 94.39 | 24.39 | 228.47 | 0.4984 | 891.0 | 782.5 | |
| 1.12 | -19.00 | 0.63 | -19.00 | -24.23 | 93.98 | 23.98 | 230.81 | 0.4801 | 906.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -22.29 | 93.61 | 23.61 | 233.98 | 0.4601 | 956.0 | 829.7 | |
| 2.59 | -19.00 | 1.46 | -19.00 | -24.09 | 93.73 | 23.73 | 230.82 | 0.4760 | 1111.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -22.12 | 93.27 | 23.27 | 233.96 | 0.4544 | 881.0 | 698.8 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -25.50 | 93.73 | 23.73 | 228.37 | 0.4880 | 882.0 | 724.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -21.59 | 92.17 | 22.17 | 233.84 | 0.4364 | 513.0 | 491.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -21.48 | 91.91 | 21.91 | 233.78 | 0.4322 | 820.0 | 777.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.09 | 91.97 | 21.97 | 232.64 | 0.4380 | 841.0 | 632.1 | |
| 2.16 | 3.63 | 1.20 | 2.02 | -25.33 | 91.20 | 21.20 | 225.78 | 0.4581 | 1043.1 | 879.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -25.57 | 90.79 | 20.79 | 224.86 | 0.4558 | 802.0 | 676.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -28.36 | 89.93 | 19.93 | 219.26 | 0.4758 | -624.0 | -526.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -26.39 | 89.14 | 19.14 | 221.31 | 0.4468 | -713.0 | -544.6 | |
| 0.00 | 2.42 | 0.00 | 1.35 | -27.71 | 89.30 | 19.30 | 219.42 | 0.4627 | -743.0 | -672.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -27.62 | 89.21 | 19.21 | 219.45 | 0.4609 | -536.0 | -519.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -27.76 | 89.03 | 19.03 | 218.98 | 0.4605 | -677.0 | -576.7 | |
| 0.00 | 2.77 | 0.00 | 1.54 | -27.58 | 88.50 | 18.50 | 218.52 | 0.4535 | -755.0 | -625.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -27.77 | 88.50 | 18.50 | 218.22 | 0.4556 | -647.0 | -504.0 | |
| 0.00 | 3.11 | 0.00 | 1.69 | -24.83 | 87.88 | 17.88 | 222.17 | 0.4169 | -917.0 | -658.6 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -30.47 | 88.64 | 18.64 | 214.55 | 0.4877 | -714.0 | -596.4 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -29.74 | 88.32 | 18.32 | 215.11 | 0.4764 | -873.0 | -670.2 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -30.19 | 88.40 | 18.40 | 214.61 | 0.4824 | -673.0 | -581.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -28.14 | 87.96 | 17.96 | 216.90 | 0.4547 | -718.0 | -519.0 | |
| 5.44 | 11.15 | 3.02 | 6.19 | -28.41 | 87.65 | 17.65 | 216.06 | 0.4550 | 547.1 | -4.6 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -30.08 | 87.91 | 17.91 | 214.09 | 0.4769 | -665.0 | -673.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -25.98 | 87.19 | 17.19 | 219.15 | 0.4226 | 734.0 | 589.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -30.21 | 87.83 | 17.83 | 213.79 | 0.4777 | -613.0 | -525.3 | |
| 1.47 | 4.32 | 0.80 | 2.36 | -26.21 | 87.09 | 17.09 | 218.62 | 0.4241 | 893.7 | 509.6 | |
| 0.86 | 4.15 | 0.47 | 2.28 | -26.99 | 87.21 | 17.21 | 217.55 | 0.4344 | -847.1 | -646.9 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -26.62 | 87.08 | 17.08 | 217.95 | 0.4288 | 33.0 | 9.8 | |
| 7.43 | 11.15 | 4.10 | 6.14 | -27.57 | 87.19 | 17.19 | 216.64 | 0.4409 | -902.6 | -725.3 | |
| 0.35 | 1.64 | 0.19 | 0.91 | -28.05 | 87.09 | 17.09 | 215.77 | 0.4456 | -819.8 | -648.4 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -26.60 | 86.56 | 16.56 | 217.16 | 0.4236 | -553.0 | -405.5 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -27.58 | 86.67 | 16.67 | 215.82 | 0.4363 | -958.0 | -625.0 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -27.62 | 86.40 | 16.39 | 215.33 | 0.4343 | -639.0 | -474.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -27.44 | 86.16 | 16.16 | 215.24 | 0.4299 | -628.0 | -534.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -25.12 | 85.80 | 15.80 | 218.38 | 0.3987 | 915.0 | 754.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -28.56 | 85.94 | 15.94 | 213.26 | 0.4417 | -717.0 | -583.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -29.98 | 85.99 | 15.99 | 211.42 | 0.4597 | -777.0 | -593.7 | |
| 44.76 | 210.15 | 24.31 | 114.06 | -26.51 | 85.40 | 15.40 | 215.43 | 0.4117 | -1352.8 | -407.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -27.88 | 85.45 | 15.45 | 213.46 | 0.4290 | -764.0 | -606.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -27.45 | 84.67 | 14.67 | 212.76 | 0.4169 | -738.0 | -483.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -28.47 | 84.67 | 14.67 | 211.32 | 0.4299 | -681.0 | -569.4 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -29.31 | 84.54 | 14.54 | 210.00 | 0.4397 | -688.0 | -534.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -27.89 | 84.03 | 14.03 | 211.06 | 0.4171 | -713.0 | -504.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -27.35 | 83.86 | 13.86 | 211.51 | 0.4088 | -737.0 | -626.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -27.20 | 83.70 | 13.70 | 211.45 | 0.4055 | -922.0 | -828.7 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -25.14 | 83.02 | 13.02 | 213.33 | 0.3728 | -870.0 | -766.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.89 | 82.66 | 12.66 | 213.01 | 0.3665 | -905.0 | -804.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -25.02 | 82.50 | 12.50 | 212.49 | 0.3668 | -994.0 | -864.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
