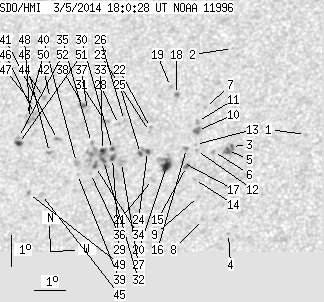

SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.74 | 140.16 | 11.73 | 79.54 | 13.86 | 49.80 | -20.20 | 43.44 | 0.4889 | -129.7 | 31.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.71 | 14.07 | 55.53 | -14.47 | 33.98 | 0.4356 | -733.0 | -544.3 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 16.94 | 52.96 | -17.04 | 34.73 | 0.4940 | -580.0 | -482.1 | |
| 0.52 | 8.04 | 0.29 | 4.46 | 13.78 | 53.19 | -16.81 | 38.47 | 0.4534 | -841.0 | -770.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 11.03 | 53.28 | -16.72 | 42.49 | 0.4199 | -768.0 | -595.1 | |
| 1.81 | -3.00 | 1.01 | -3.00 | 13.65 | 53.07 | -16.93 | 38.84 | 0.4531 | -1101.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 13.64 | 52.63 | -17.37 | 39.59 | 0.4573 | -980.0 | -747.5 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.06 | 52.25 | -17.75 | 38.22 | 0.4777 | -708.0 | -591.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 11.50 | 52.42 | -17.58 | 43.16 | 0.4345 | -897.0 | -739.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 12.23 | 52.25 | -17.75 | 42.29 | 0.4447 | -716.0 | -556.0 | |
| 0.00 | 4.32 | 0.00 | 2.42 | 14.33 | 52.06 | -17.94 | 39.52 | 0.4710 | -1047.0 | -837.5 | |
| 0.00 | 2.25 | 0.00 | 1.26 | 14.62 | 52.03 | -17.97 | 39.16 | 0.4746 | -721.0 | -605.5 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 13.70 | 52.07 | -17.93 | 40.39 | 0.4634 | -812.0 | -661.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 13.89 | 52.03 | -17.97 | 40.19 | 0.4661 | -698.0 | -423.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 12.78 | 52.08 | -17.92 | 41.73 | 0.4527 | -886.0 | -699.7 | |
| 0.60 | 1.90 | 0.34 | 1.06 | 13.20 | 51.79 | -18.21 | 41.56 | 0.4605 | -986.7 | -784.9 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 13.77 | 51.75 | -18.25 | 40.80 | 0.4676 | -896.0 | -691.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.33 | 51.65 | -18.35 | 41.58 | 0.4635 | -740.0 | -618.5 | |
| 0.00 | 2.51 | 0.00 | 1.42 | 15.52 | 51.27 | -18.73 | 39.11 | 0.4925 | -895.0 | -748.1 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 15.79 | 51.05 | -18.95 | 39.09 | 0.4977 | -813.0 | -629.9 | |
| 6.57 | 14.86 | 3.68 | 8.33 | 13.26 | 51.14 | -18.86 | 42.47 | 0.4679 | -963.3 | -408.3 | |
| 0.00 | 2.51 | 0.00 | 1.40 | 12.83 | 50.72 | -19.28 | 43.73 | 0.4676 | -606.0 | -547.2 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 14.50 | 50.52 | -19.48 | 41.62 | 0.4882 | 754.0 | 593.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 14.37 | 50.50 | -19.50 | 41.83 | 0.4870 | 678.0 | 509.4 | |
| 1.21 | 6.57 | 0.68 | 3.71 | 13.73 | 50.49 | -19.51 | 42.75 | 0.4800 | -806.5 | -434.4 | |
| 0.86 | -24.00 | 0.49 | -24.00 | 13.68 | 50.26 | -19.74 | 43.15 | 0.4817 | -565.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 14.76 | 49.64 | -20.36 | 42.50 | 0.5000 | -700.0 | -602.1 | |
| 0.00 | 4.06 | 0.00 | 2.30 | 13.42 | 49.67 | -20.33 | 44.39 | 0.4852 | 317.0 | 329.1 | |
| 0.00 | 1.99 | 0.00 | 1.14 | 14.64 | 49.46 | -20.54 | 42.93 | 0.5005 | -598.0 | -434.9 | |
| 1.56 | 30.85 | 0.88 | 17.56 | 13.56 | 49.36 | -20.64 | 44.61 | 0.4899 | 996.8 | 524.3 | |
| 0.95 | 2.42 | 0.54 | 1.38 | 13.85 | 49.34 | -20.66 | 44.22 | 0.4933 | 815.7 | 585.5 | |
| 0.00 | 3.54 | 0.00 | 2.03 | 14.76 | 49.02 | -20.98 | 43.37 | 0.5063 | -730.0 | -548.0 | |
| 1.04 | -29.00 | 0.59 | -29.00 | 13.51 | 49.07 | -20.93 | 45.08 | 0.4925 | 976.1 | 999999 | |
| 1.73 | -29.00 | 0.98 | -29.00 | 13.83 | 49.01 | -20.99 | 44.70 | 0.4966 | -373.1 | 999999 | |
| 0.95 | -29.00 | 0.54 | -29.00 | 13.34 | 48.83 | -21.17 | 45.68 | 0.4933 | 988.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 14.11 | 48.62 | -21.38 | 44.82 | 0.5036 | -768.0 | -530.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.12 | 48.68 | -21.32 | 46.19 | 0.4926 | 766.0 | 618.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 15.14 | 48.38 | -21.62 | 43.68 | 0.5169 | 769.0 | 649.9 | |
| 0.69 | 3.20 | 0.40 | 1.85 | 15.31 | 48.23 | -21.77 | 43.65 | 0.5203 | 957.2 | 755.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 13.11 | 48.26 | -21.74 | 46.78 | 0.4972 | 842.0 | 691.4 | |
| 0.00 | 3.72 | 0.00 | 2.12 | 13.49 | 48.19 | -21.81 | 46.30 | 0.5019 | 751.0 | 613.2 | |
| 0.00 | 2.33 | 0.00 | 1.35 | 14.26 | 47.48 | -22.52 | 46.09 | 0.5173 | 593.0 | 626.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 15.60 | 47.10 | -22.90 | 44.71 | 0.5349 | 705.0 | 476.8 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 13.86 | 47.26 | -22.74 | 46.96 | 0.5157 | 979.0 | 791.5 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 15.64 | 46.89 | -23.11 | 44.91 | 0.5374 | 742.0 | 664.5 | |
| 0.00 | 2.68 | 0.00 | 1.53 | 12.54 | 47.12 | -22.88 | 49.10 | 0.5042 | 651.0 | 521.5 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 15.14 | 46.62 | -23.38 | 45.94 | 0.5353 | 843.0 | 712.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 15.50 | 46.47 | -23.53 | 45.61 | 0.5404 | 732.0 | 543.4 | |
| 0.00 | 3.72 | 0.00 | 2.17 | 14.92 | 46.51 | -23.49 | 46.37 | 0.5343 | 760.0 | 792.3 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 12.59 | 46.69 | -23.32 | 49.55 | 0.5096 | 719.0 | 581.0 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 15.09 | 46.35 | -23.65 | 46.32 | 0.5376 | 719.0 | 615.5 | |
| 2.25 | 3.72 | 1.31 | 2.17 | 14.20 | 46.18 | -23.82 | 47.77 | 0.5307 | 961.9 | 701.5 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 14.40 | 46.16 | -23.84 | 47.53 | 0.5328 | 669.0 | 584.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
