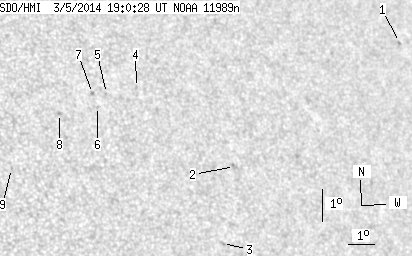

SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.82 | 0.00 | 8.89 | 9.24 | 105.44 | 36.00 | 294.30 | 0.6369 | 475.6 | 401.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 1.05 | 12.82 | 114.84 | 45.40 | 293.82 | 0.7612 | -658.0 | -548.6 | |
| 0.00 | 3.11 | 0.00 | 2.04 | 8.32 | 107.37 | 37.92 | 291.70 | 0.6569 | 639.0 | 526.9 | |
| 0.00 | 1.99 | 0.00 | 1.27 | 5.91 | 106.68 | 37.23 | 288.56 | 0.6371 | 641.0 | 550.5 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 10.51 | 103.97 | 34.52 | 296.93 | 0.6273 | 609.0 | 466.2 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 10.24 | 102.84 | 33.40 | 297.33 | 0.6120 | 590.0 | 460.9 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.81 | 102.47 | 33.02 | 296.97 | 0.6047 | 490.0 | 476.5 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 10.20 | 102.33 | 32.89 | 297.65 | 0.6055 | 625.0 | 532.3 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 9.50 | 101.07 | 31.63 | 297.53 | 0.5855 | 821.0 | 632.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 7.68 | 99.23 | 29.78 | 296.09 | 0.5502 | 523.0 | 473.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
