SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.42 | 453.03 | 55.88 | 251.23 | -25.45 | 89.30 | 19.86 | 223.16 | 0.4503 | -145.7 | -69.2 | |
|
previous
or next observation for the same group /

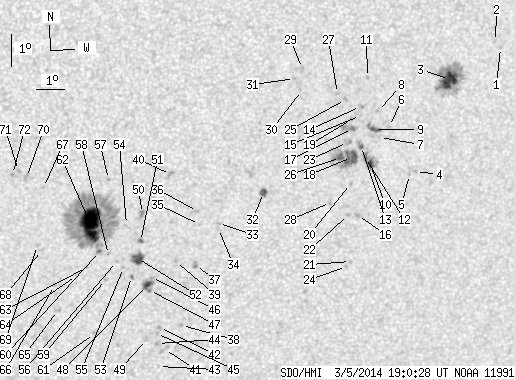

back to the solar disc SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | -20.43 | 98.73 | 29.28 | 242.06 | 0.5209 | 753.0 | 598.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -20.25 | 98.51 | 29.06 | 242.23 | 0.5171 | 776.0 | 612.8 | |
| 17.54 | 57.64 | 10.06 | 33.06 | -21.50 | 97.10 | 27.65 | 238.98 | 0.5059 | 1105.0 | 501.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -24.39 | 96.50 | 27.05 | 233.42 | 0.5178 | -814.0 | -665.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -24.50 | 96.30 | 26.85 | 233.07 | 0.5163 | -839.0 | -581.5 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -23.06 | 95.26 | 25.81 | 234.67 | 0.4931 | 413.0 | 301.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -23.41 | 94.98 | 25.53 | 233.78 | 0.4922 | 588.0 | 414.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.62 | 94.74 | 25.30 | 235.00 | 0.4835 | 739.0 | 562.8 | |
| 2.77 | 7.17 | 1.57 | 4.06 | -23.18 | 94.75 | 25.30 | 233.99 | 0.4877 | 821.4 | 703.4 | |
| 3.28 | 14.08 | 1.87 | 8.02 | -24.26 | 94.83 | 25.38 | 232.15 | 0.4969 | 803.5 | 486.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -21.59 | 94.20 | 24.75 | 236.41 | 0.4692 | 859.0 | 651.1 | |
| 1.64 | -10.00 | 0.93 | -10.00 | -24.05 | 94.61 | 25.16 | 232.30 | 0.4926 | 911.0 | 999999 | |
| 1.12 | 4.41 | 0.64 | 2.50 | -23.72 | 94.39 | 24.94 | 232.68 | 0.4875 | 855.4 | 725.4 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -22.49 | 94.12 | 24.67 | 234.64 | 0.4748 | 861.0 | 777.3 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -22.77 | 94.17 | 24.72 | 234.19 | 0.4775 | 767.0 | 677.8 | |
| 0.00 | 2.94 | 0.00 | 1.69 | -25.87 | 94.71 | 25.26 | 229.31 | 0.5085 | 839.0 | 703.8 | |
| 0.78 | 8.12 | 0.44 | 4.57 | -23.18 | 93.96 | 24.52 | 233.23 | 0.4781 | 1009.2 | 856.2 | |
| 10.46 | 34.82 | 5.92 | 19.69 | -24.08 | 94.11 | 24.66 | 231.77 | 0.4869 | 965.9 | 789.1 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -22.91 | 93.88 | 24.43 | 233.65 | 0.4749 | 980.0 | 794.1 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -24.89 | 94.24 | 24.79 | 230.50 | 0.4950 | 602.0 | 550.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -27.32 | 94.80 | 25.35 | 227.05 | 0.5217 | 745.0 | 593.4 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -25.85 | 94.38 | 24.93 | 229.01 | 0.5046 | 618.0 | 646.7 | |
| 0.00 | 3.63 | 0.00 | 2.05 | -23.62 | 93.87 | 24.42 | 232.35 | 0.4804 | 763.0 | 862.8 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -27.49 | 94.69 | 25.24 | 226.69 | 0.5220 | 720.0 | 578.2 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -22.30 | 93.55 | 24.10 | 234.46 | 0.4663 | 1005.0 | 817.8 | |
| 3.20 | -18.00 | 1.81 | -18.00 | -24.10 | 93.72 | 24.27 | 231.35 | 0.4824 | 1115.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -22.13 | 93.24 | 23.79 | 234.47 | 0.4611 | 926.0 | 745.8 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -25.51 | 93.65 | 24.20 | 228.85 | 0.4934 | 934.0 | 743.2 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -21.42 | 91.90 | 22.45 | 234.48 | 0.4387 | 853.0 | 642.5 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -22.10 | 91.98 | 22.53 | 233.23 | 0.4450 | 659.0 | 700.6 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -21.74 | 91.67 | 22.23 | 233.61 | 0.4383 | 842.0 | 675.5 | |
| 2.94 | 4.75 | 1.64 | 2.65 | -25.31 | 91.21 | 21.76 | 226.50 | 0.4641 | 1015.7 | 789.2 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -26.34 | 89.81 | 20.36 | 223.02 | 0.4590 | -747.0 | -571.2 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -26.50 | 89.84 | 20.39 | 222.80 | 0.4609 | -613.0 | -517.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -26.40 | 89.15 | 19.70 | 222.06 | 0.4527 | -693.0 | -597.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -26.00 | 89.01 | 19.56 | 222.54 | 0.4470 | -725.0 | -624.9 | |
| 0.00 | 3.46 | 0.00 | 1.93 | -27.70 | 89.25 | 19.80 | 220.11 | 0.4674 | -805.0 | -682.8 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -29.63 | 89.12 | 19.67 | 217.08 | 0.4872 | -736.0 | -671.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -27.60 | 88.52 | 19.07 | 219.29 | 0.4591 | -919.0 | -737.0 | |
| 0.00 | 3.20 | 0.00 | 1.75 | -24.88 | 87.89 | 18.44 | 222.91 | 0.4233 | -845.0 | -646.7 | |
| 0.00 | 4.23 | 0.00 | 2.41 | -30.42 | 88.66 | 19.21 | 215.38 | 0.4921 | -708.0 | -535.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -29.72 | 88.34 | 18.89 | 215.92 | 0.4813 | -797.0 | -616.7 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -30.98 | 88.56 | 19.11 | 214.50 | 0.4975 | -565.0 | -372.2 | |
| 0.00 | 2.42 | 0.00 | 1.37 | -30.24 | 88.37 | 18.92 | 215.25 | 0.4874 | -791.0 | -630.9 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -29.92 | 88.27 | 18.82 | 215.55 | 0.4829 | -722.0 | -628.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -28.14 | 87.76 | 18.31 | 217.41 | 0.4579 | -699.0 | -615.2 | |
| 0.52 | 8.30 | 0.29 | 4.62 | -28.55 | 87.76 | 18.31 | 216.80 | 0.4626 | 742.3 | 439.0 | |
| 4.58 | -47.00 | 2.55 | -47.00 | -28.39 | 87.66 | 18.21 | 216.89 | 0.4599 | 453.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -30.12 | 87.95 | 18.50 | 214.83 | 0.4824 | -847.0 | -599.2 | |
| 0.00 | 2.85 | 0.00 | 1.56 | -26.13 | 87.11 | 17.66 | 219.63 | 0.4289 | 952.0 | 803.1 | |
| 0.86 | 2.16 | 0.48 | 1.19 | -27.01 | 87.18 | 17.73 | 218.31 | 0.4396 | -873.6 | -701.9 | |
| 7.78 | 11.75 | 4.30 | 6.50 | -27.55 | 87.16 | 17.72 | 217.45 | 0.4456 | -869.5 | -654.8 | |
| 0.35 | 1.64 | 0.19 | 0.91 | -28.13 | 87.05 | 17.60 | 216.40 | 0.4512 | -788.2 | -645.7 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -26.49 | 86.61 | 17.16 | 218.28 | 0.4281 | -332.0 | -308.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.85 | 86.72 | 17.27 | 216.33 | 0.4449 | -685.0 | -543.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -27.67 | 86.44 | 17.00 | 216.19 | 0.4403 | -714.0 | -596.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -25.10 | 85.79 | 16.34 | 219.30 | 0.4039 | 866.0 | 666.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -27.46 | 86.13 | 16.68 | 216.03 | 0.4349 | -746.0 | -612.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -28.25 | 86.15 | 16.70 | 214.88 | 0.4446 | -823.0 | -634.5 | |
| 0.78 | 211.62 | 0.43 | 115.12 | -27.37 | 85.80 | 16.36 | 215.65 | 0.4308 | -807.8 | -415.5 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -29.99 | 86.05 | 16.60 | 212.31 | 0.4648 | -774.0 | -610.7 | |
| 41.82 | -60.00 | 22.76 | -60.00 | -26.50 | 85.36 | 15.92 | 216.30 | 0.4163 | -1376.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -27.89 | 85.43 | 15.98 | 214.28 | 0.4338 | -861.0 | -713.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -28.16 | 85.12 | 15.67 | 213.40 | 0.4343 | -685.0 | -533.2 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -29.30 | 84.62 | 15.17 | 211.04 | 0.4445 | -529.0 | -529.6 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -28.50 | 84.40 | 14.95 | 211.76 | 0.4325 | -779.0 | -676.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -25.42 | 83.61 | 14.17 | 215.03 | 0.3868 | -787.0 | -730.8 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -27.40 | 83.79 | 14.34 | 212.29 | 0.4135 | -741.0 | -569.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -27.25 | 83.64 | 14.19 | 212.24 | 0.4102 | -883.0 | -748.6 | |
| 0.00 | 2.94 | 0.00 | 1.57 | -25.12 | 83.00 | 13.56 | 214.38 | 0.3774 | -863.0 | -754.9 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -24.91 | 82.71 | 13.26 | 214.17 | 0.3721 | -851.0 | -670.0 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -25.04 | 82.52 | 13.07 | 213.59 | 0.3721 | -985.0 | -797.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
