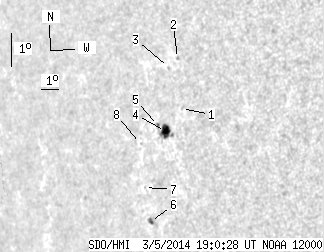

SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.67 | 21.07 | 8.88 | 19.35 | -10.72 | 11.44 | -58.01 | 98.10 | 0.8439 | 317.3 | 174.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.54 | -9.86 | 12.81 | -56.64 | 97.03 | 0.8313 | 506.0 | 445.4 | |
| 0.00 | 0.78 | 0.00 | 0.69 | -8.37 | 12.96 | -56.49 | 95.23 | 0.8305 | 560.0 | 535.9 | |
| 0.00 | 0.86 | 0.00 | 0.77 | -8.59 | 12.41 | -57.04 | 95.52 | 0.8356 | 392.0 | 349.6 | |
| 7.86 | 12.27 | 7.16 | 11.16 | -10.44 | 11.75 | -57.70 | 97.77 | 0.8411 | 629.4 | 452.8 | |
| 0.43 | 2.07 | 0.40 | 1.91 | -10.23 | 11.41 | -58.03 | 97.53 | 0.8443 | 279.4 | 213.2 | |
| 1.38 | 3.37 | 1.32 | 3.21 | -12.98 | 10.00 | -59.45 | 100.81 | 0.8564 | -626.9 | -422.6 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -11.95 | 10.03 | -59.42 | 99.61 | 0.8564 | -442.0 | -427.6 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -10.64 | 10.23 | -59.22 | 98.07 | 0.8549 | -364.0 | -328.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
