SDO HMI 2014-03-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.61 | 456.06 | 53.92 | 253.75 | -25.35 | 89.37 | 20.47 | 224.13 | 0.4558 | -111.8 | -53.5 | |
|
previous
or next observation for the same group /

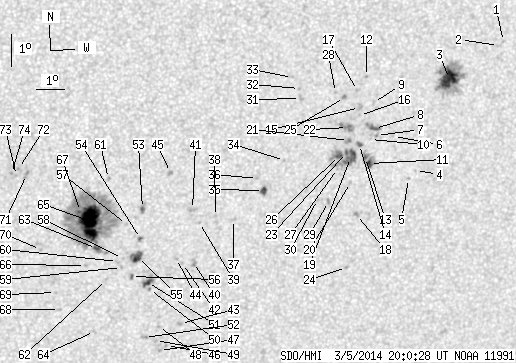

back to the solar disc SDO HMI 2014-03-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.55 | -20.27 | 98.84 | 29.95 | 242.76 | 0.5288 | 527.0 | 467.3 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -20.40 | 98.69 | 29.79 | 242.43 | 0.5274 | 681.0 | 569.2 | |
| 19.62 | 58.93 | 11.31 | 33.97 | -21.51 | 97.14 | 28.24 | 239.41 | 0.5134 | 1068.5 | 464.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -24.40 | 96.54 | 27.64 | 233.92 | 0.5249 | -716.0 | -589.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -24.66 | 96.34 | 27.45 | 233.31 | 0.5244 | -765.0 | -624.6 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -23.39 | 95.51 | 26.61 | 234.78 | 0.5053 | -572.0 | -463.8 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -23.39 | 94.89 | 25.99 | 234.24 | 0.4978 | 442.0 | 374.9 | |
| 2.16 | 7.86 | 1.23 | 4.47 | -23.18 | 94.78 | 25.88 | 234.51 | 0.4948 | 815.6 | 693.2 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -22.38 | 94.58 | 25.68 | 235.77 | 0.4866 | 688.0 | 573.6 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -23.53 | 94.70 | 25.81 | 233.83 | 0.4965 | 294.0 | 260.0 | |
| 2.16 | 14.09 | 1.24 | 8.06 | -24.27 | 94.83 | 25.93 | 232.65 | 0.5035 | 801.0 | 565.4 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -21.60 | 94.18 | 25.28 | 236.88 | 0.4761 | 837.0 | 740.0 | |
| 0.78 | -11.00 | 0.44 | -11.00 | -24.09 | 94.64 | 25.75 | 232.79 | 0.5000 | 935.4 | 999999 | |
| 1.21 | 2.68 | 0.69 | 1.52 | -23.70 | 94.34 | 25.45 | 233.20 | 0.4934 | 872.3 | 744.0 | |
| 0.00 | 3.11 | 0.00 | 1.76 | -22.56 | 94.11 | 25.22 | 235.03 | 0.4821 | 728.0 | 689.1 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.81 | 94.16 | 25.27 | 234.63 | 0.4845 | 797.0 | 677.5 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -22.05 | 93.94 | 25.05 | 235.83 | 0.4762 | 723.0 | 592.1 | |
| 0.00 | 2.42 | 0.00 | 1.40 | -25.88 | 94.72 | 25.82 | 229.84 | 0.5148 | 920.0 | 751.1 | |
| 8.47 | 32.92 | 4.82 | 18.70 | -24.12 | 94.11 | 25.21 | 232.24 | 0.4937 | 915.6 | 761.9 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -24.89 | 94.27 | 25.38 | 231.06 | 0.5018 | 710.0 | 548.5 | |
| 0.00 | 3.28 | 0.00 | 1.86 | -23.60 | 93.93 | 25.03 | 232.99 | 0.4876 | 1028.0 | 875.7 | |
| 0.00 | 8.55 | 0.00 | 4.83 | -23.20 | 93.81 | 24.91 | 233.59 | 0.4831 | 1057.0 | 844.6 | |
| 1.04 | -19.00 | 0.59 | -19.00 | -23.97 | 93.93 | 25.04 | 232.33 | 0.4905 | 1135.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -27.56 | 94.75 | 25.86 | 227.19 | 0.5292 | 664.0 | 568.0 | |
| 0.00 | 2.25 | 0.00 | 1.26 | -22.28 | 93.53 | 24.63 | 235.01 | 0.4727 | 973.0 | 835.6 | |
| 2.85 | -19.00 | 1.62 | -19.00 | -24.08 | 93.70 | 24.81 | 231.93 | 0.4886 | 1117.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -24.48 | 93.71 | 24.82 | 231.23 | 0.4920 | 413.0 | 428.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.14 | 93.19 | 24.29 | 234.94 | 0.4674 | 851.0 | 750.1 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -25.52 | 93.61 | 24.72 | 229.35 | 0.4993 | 947.0 | 724.4 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -25.48 | 93.20 | 24.31 | 229.01 | 0.4943 | 585.0 | 617.4 | |
| 0.00 | 2.77 | 0.00 | 1.54 | -22.39 | 92.00 | 23.10 | 233.30 | 0.4544 | 807.0 | 646.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -22.08 | 91.91 | 23.02 | 233.79 | 0.4509 | 823.0 | 670.6 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -21.76 | 91.61 | 22.72 | 234.11 | 0.4446 | 687.0 | 544.1 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -24.32 | 91.79 | 22.89 | 229.51 | 0.4680 | 670.0 | 496.6 | |
| 2.77 | 4.58 | 1.55 | 2.57 | -25.29 | 91.23 | 22.33 | 227.20 | 0.4702 | 984.2 | 742.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -24.92 | 90.95 | 22.05 | 227.50 | 0.4637 | 793.0 | 514.2 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -26.24 | 90.35 | 21.45 | 224.55 | 0.4695 | -192.0 | -219.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -26.17 | 89.69 | 20.80 | 223.86 | 0.4618 | -614.0 | -497.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -26.38 | 89.16 | 20.27 | 222.84 | 0.4584 | -613.0 | -530.2 | |
| 0.00 | 3.46 | 0.00 | 1.94 | -27.65 | 89.19 | 20.29 | 220.83 | 0.4718 | -676.0 | -688.2 | |
| 0.00 | 4.15 | 0.00 | 2.30 | -25.98 | 88.85 | 19.95 | 223.08 | 0.4509 | -657.0 | -626.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -27.70 | 88.80 | 19.91 | 220.26 | 0.4684 | -724.0 | -578.4 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -29.61 | 89.11 | 20.22 | 217.81 | 0.4921 | -703.0 | -652.6 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -27.55 | 88.56 | 19.67 | 220.18 | 0.4644 | -698.0 | -684.5 | |
| 0.00 | 2.51 | 0.00 | 1.37 | -24.86 | 87.89 | 18.99 | 223.73 | 0.4290 | -1000.0 | -726.6 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -30.34 | 88.75 | 19.86 | 216.34 | 0.4968 | -630.0 | -496.0 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -30.51 | 88.53 | 19.64 | 215.82 | 0.4967 | -716.0 | -613.6 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -29.74 | 88.34 | 19.44 | 216.63 | 0.4864 | -707.0 | -532.4 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -30.19 | 88.32 | 19.42 | 215.98 | 0.4913 | -534.0 | -559.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -28.57 | 87.79 | 18.89 | 217.58 | 0.4682 | 662.0 | 491.1 | |
| 3.46 | 7.69 | 1.93 | 4.30 | -28.35 | 87.68 | 18.78 | 217.76 | 0.4646 | 448.0 | -40.3 | |
| 0.00 | 2.33 | 0.00 | 1.32 | -30.11 | 87.90 | 19.01 | 215.54 | 0.4867 | -744.0 | -680.2 | |
| 0.86 | 4.41 | 0.47 | 2.42 | -26.02 | 87.10 | 18.20 | 220.61 | 0.4331 | 913.0 | 705.4 | |
| 0.52 | 2.51 | 0.29 | 1.38 | -26.96 | 87.19 | 18.29 | 219.20 | 0.4444 | -854.3 | -684.8 | |
| 5.10 | 10.02 | 2.83 | 5.56 | -27.57 | 87.18 | 18.29 | 218.25 | 0.4512 | -849.7 | -778.6 | |
| 0.60 | 1.81 | 0.34 | 1.01 | -28.18 | 87.08 | 18.18 | 217.17 | 0.4571 | -627.4 | -517.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -26.54 | 86.63 | 17.73 | 219.06 | 0.4342 | -611.0 | -458.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.62 | 86.66 | 17.76 | 217.42 | 0.4468 | -663.0 | -581.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -27.90 | 86.67 | 17.78 | 217.01 | 0.4502 | -590.0 | -420.7 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -27.72 | 86.50 | 17.61 | 217.03 | 0.4464 | -676.0 | -553.3 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -25.12 | 85.79 | 16.89 | 220.16 | 0.4097 | 804.0 | 629.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -28.30 | 86.21 | 17.31 | 215.73 | 0.4506 | -760.0 | -504.1 | |
| 2.07 | 215.69 | 1.14 | 117.64 | -27.33 | 85.70 | 16.81 | 216.42 | 0.4345 | -774.9 | -401.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -29.98 | 86.07 | 17.18 | 213.18 | 0.4694 | -740.0 | -508.4 | |
| 41.82 | -63.00 | 22.82 | -63.00 | -26.49 | 85.37 | 16.47 | 217.22 | 0.4213 | -1338.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.88 | 85.40 | 16.51 | 215.13 | 0.4383 | -885.0 | -710.8 | |
| 1.12 | -63.00 | 0.61 | -63.00 | -26.19 | 84.98 | 16.08 | 217.08 | 0.4140 | -1313.5 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -29.31 | 84.71 | 15.81 | 212.04 | 0.4499 | -693.0 | -531.6 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -28.77 | 84.49 | 15.59 | 212.42 | 0.4413 | -616.0 | -529.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -27.42 | 83.77 | 14.87 | 213.16 | 0.4182 | -787.0 | -702.6 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -25.08 | 82.99 | 14.09 | 215.46 | 0.3818 | -1001.0 | -766.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.90 | 82.70 | 13.80 | 215.22 | 0.3769 | -904.0 | -770.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -25.12 | 82.66 | 13.76 | 214.78 | 0.3793 | -891.0 | -686.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -25.07 | 82.48 | 13.59 | 214.54 | 0.3769 | -966.0 | -830.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
