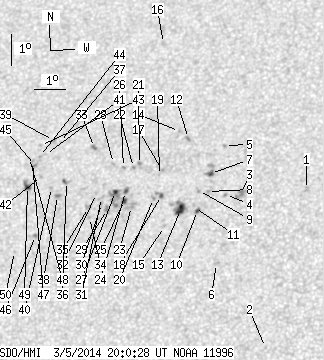

SDO HMI 2014-03-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.59 | 128.86 | 9.33 | 72.68 | 13.95 | 49.75 | -19.15 | 41.77 | 0.4792 | 6.2 | 19.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.42 | 0.00 | 1.32 | 13.72 | 55.24 | -13.66 | 32.92 | 0.4240 | -899.0 | -706.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 8.80 | 54.20 | -14.70 | 42.63 | 0.3719 | -748.0 | -519.6 | |
| 0.00 | 7.09 | 0.00 | 3.91 | 13.63 | 53.15 | -15.74 | 36.85 | 0.4416 | -1172.0 | -843.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.65 | 52.67 | -16.22 | 37.65 | 0.4463 | -854.0 | -716.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 15.22 | 52.52 | -16.37 | 35.78 | 0.4671 | -759.0 | -669.1 | |
| 0.00 | 2.42 | 0.00 | 1.32 | 11.48 | 52.53 | -16.37 | 41.14 | 0.4216 | -900.0 | -653.1 | |
| 1.47 | 7.35 | 0.82 | 4.10 | 14.34 | 52.14 | -16.75 | 37.59 | 0.4598 | -954.8 | -646.4 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 13.77 | 52.09 | -16.81 | 38.47 | 0.4534 | -850.0 | -653.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 13.81 | 51.80 | -17.10 | 38.89 | 0.4567 | -842.0 | -640.1 | |
| 0.95 | 2.07 | 0.53 | 1.15 | 13.18 | 51.81 | -17.08 | 39.77 | 0.4490 | -915.1 | -729.6 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.28 | 51.71 | -17.19 | 39.80 | 0.4512 | -339.0 | -540.1 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 15.50 | 51.34 | -17.56 | 37.34 | 0.4812 | -910.0 | -766.7 | |
| 6.05 | 11.06 | 3.36 | 6.15 | 13.23 | 51.27 | -17.63 | 40.59 | 0.4551 | -986.5 | -646.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 15.74 | 51.03 | -17.87 | 37.52 | 0.4870 | -724.0 | -607.8 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 12.71 | 50.79 | -18.11 | 42.11 | 0.4540 | -261.0 | -349.4 | |
| 0.00 | 2.25 | 0.00 | 1.31 | 18.64 | 50.21 | -18.69 | 35.20 | 0.5288 | -523.0 | -425.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 14.50 | 50.58 | -18.31 | 39.85 | 0.4767 | 829.0 | 553.0 | |
| 0.95 | 3.89 | 0.53 | 2.18 | 13.70 | 50.62 | -18.28 | 40.93 | 0.4671 | -840.3 | -575.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 14.35 | 50.50 | -18.40 | 40.20 | 0.4757 | 663.0 | 525.6 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 13.62 | 50.37 | -18.53 | 41.44 | 0.4687 | -744.0 | -483.2 | |
| 0.00 | 2.42 | 0.00 | 1.37 | 14.73 | 49.82 | -19.08 | 40.70 | 0.4868 | -829.0 | -660.4 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 14.64 | 49.63 | -19.27 | 41.09 | 0.4877 | -668.0 | -381.3 | |
| 0.00 | 5.88 | 0.00 | 3.30 | 13.40 | 49.67 | -19.22 | 42.81 | 0.4733 | 327.0 | 298.8 | |
| 1.04 | 2.77 | 0.59 | 1.56 | 13.88 | 49.44 | -19.46 | 42.45 | 0.4811 | 825.1 | 586.3 | |
| 1.81 | 18.84 | 1.02 | 10.63 | 13.60 | 49.43 | -19.47 | 42.87 | 0.4781 | 949.7 | 447.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 14.66 | 49.30 | -19.59 | 41.55 | 0.4911 | -657.0 | -498.1 | |
| 1.47 | -25.00 | 0.83 | -25.00 | 13.90 | 49.11 | -19.79 | 42.90 | 0.4847 | -370.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 14.80 | 48.96 | -19.93 | 41.84 | 0.4962 | -596.0 | -526.5 | |
| 0.00 | 3.20 | 0.00 | 1.80 | 13.34 | 48.90 | -20.00 | 44.03 | 0.4808 | 1032.0 | 871.7 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 13.54 | 48.69 | -20.21 | 44.04 | 0.4852 | 707.0 | 660.1 | |
| 0.00 | 2.51 | 0.00 | 1.42 | 13.73 | 48.67 | -20.23 | 43.78 | 0.4874 | 447.0 | 172.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 13.86 | 48.49 | -20.40 | 43.83 | 0.4907 | -349.0 | -271.5 | |
| 0.00 | 2.77 | 0.00 | 1.59 | 15.34 | 48.29 | -20.61 | 42.04 | 0.5090 | 900.0 | 743.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 13.11 | 48.33 | -20.56 | 45.17 | 0.4844 | 759.0 | 605.8 | |
| 0.00 | 3.02 | 0.00 | 1.71 | 13.43 | 48.27 | -20.62 | 44.78 | 0.4884 | 826.0 | 660.4 | |
| 0.00 | 2.68 | 0.00 | 1.54 | 14.30 | 47.47 | -21.43 | 44.62 | 0.5061 | 400.0 | 449.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 15.56 | 47.10 | -21.79 | 43.33 | 0.5233 | 527.0 | 483.0 | |
| 0.00 | 2.16 | 0.00 | 1.24 | 13.86 | 47.21 | -21.68 | 45.58 | 0.5043 | 942.0 | 778.2 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 15.64 | 46.89 | -22.00 | 43.50 | 0.5262 | 715.0 | 596.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 14.13 | 46.99 | -21.91 | 45.49 | 0.5095 | 670.0 | 460.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.20 | 46.68 | -22.22 | 44.38 | 0.5238 | 516.0 | 474.6 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 14.50 | 46.62 | -22.28 | 45.44 | 0.5172 | 758.0 | 591.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.50 | 46.48 | -22.42 | 44.23 | 0.5290 | 610.0 | 489.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.15 | 46.48 | -22.41 | 44.71 | 0.5253 | 809.0 | 678.7 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 14.86 | 46.38 | -22.52 | 45.23 | 0.5234 | 1047.0 | 820.6 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 12.63 | 46.61 | -22.29 | 48.21 | 0.4985 | 805.0 | 641.8 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 15.00 | 46.27 | -22.63 | 45.19 | 0.5260 | 812.0 | 639.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 15.13 | 46.15 | -22.75 | 45.15 | 0.5286 | 632.0 | 462.8 | |
| 2.85 | 6.91 | 1.65 | 4.00 | 14.20 | 46.19 | -22.71 | 46.41 | 0.5188 | 915.3 | 595.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 12.16 | 45.96 | -22.94 | 49.76 | 0.5013 | 581.0 | 424.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
